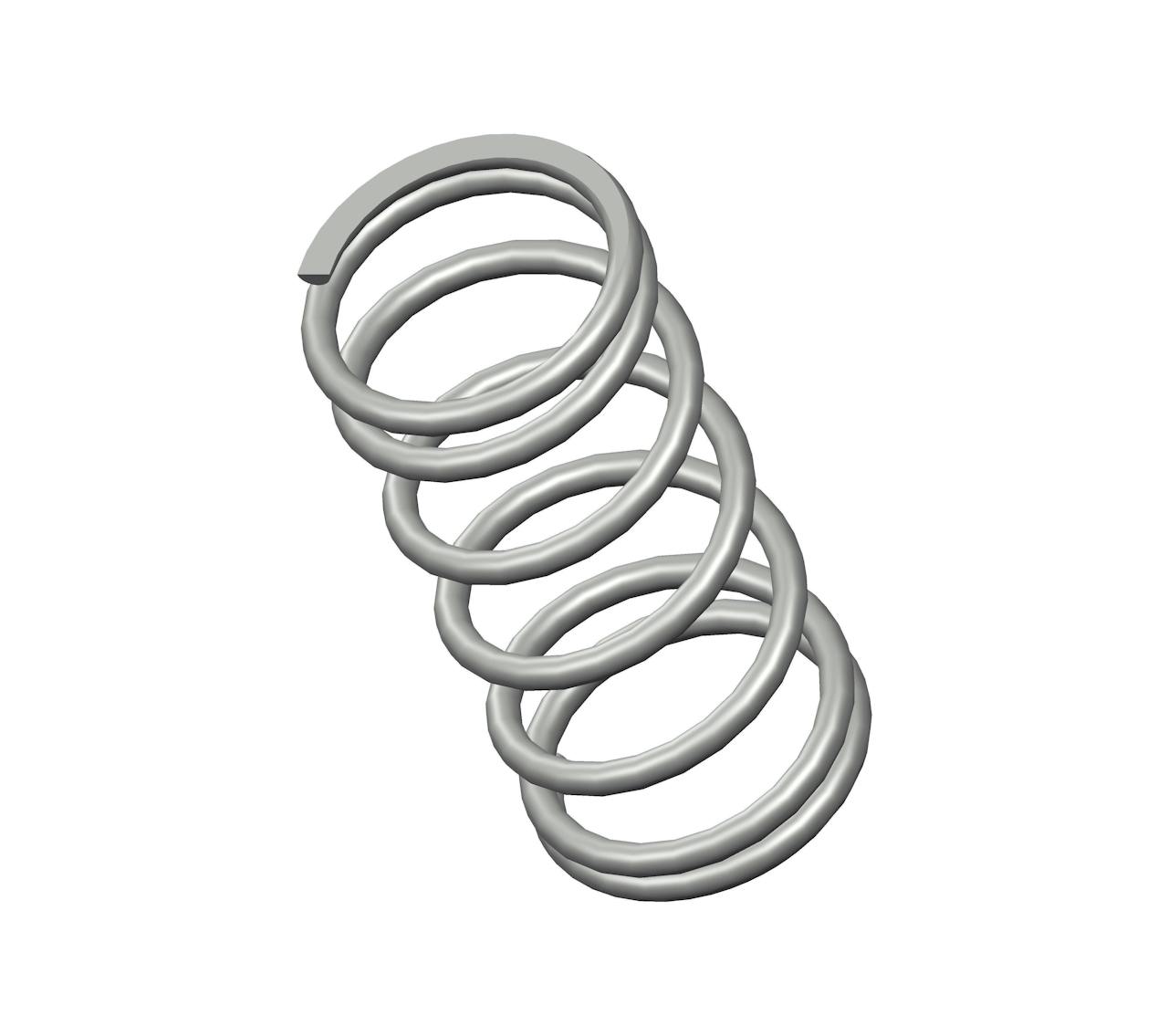

U-63CS - 0.94" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.437", and an I.D. of 0.353".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-63 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 0.94 in |
| Inside Diameter | 0.353 in |
| Material | Spring Steel |
| Outside Diameter | 0.437 in |
| Part Type | Standard |
| Rate | 14 lbs/in |
| SKU | U-63CS |
| Solid Length | 0.29 in |
| Suggested Max Deflection | 0.45 in |
| Suggested Max Load | 6.5 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.042 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-63 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 23.88 mm |
| Inside Diameter | 8.97 mm |
| Material | Spring Steel |
| Outside Diameter | 11.1 mm |
| Part Type | Standard |
| Rate | 2.45 N/mm |
| SKU | U-63CS |
| Solid Length | 7.37 mm |
| Suggested Max Deflection | 11.43 mm |
| Suggested Max Load | 28.91 N |
| Total Coils | 7 |
| Wire Diameter | 1.07 mm |
The compression spring U-63CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the U-63 compression spring design exhibits exceptional tensile strength and resilience.
The U-63 design is manufactured with a free length of 0.94", with an outer diameter of 0.437", an inner diameter of 0.353", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 14 lbs/in.
The U-63CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring U-63 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
