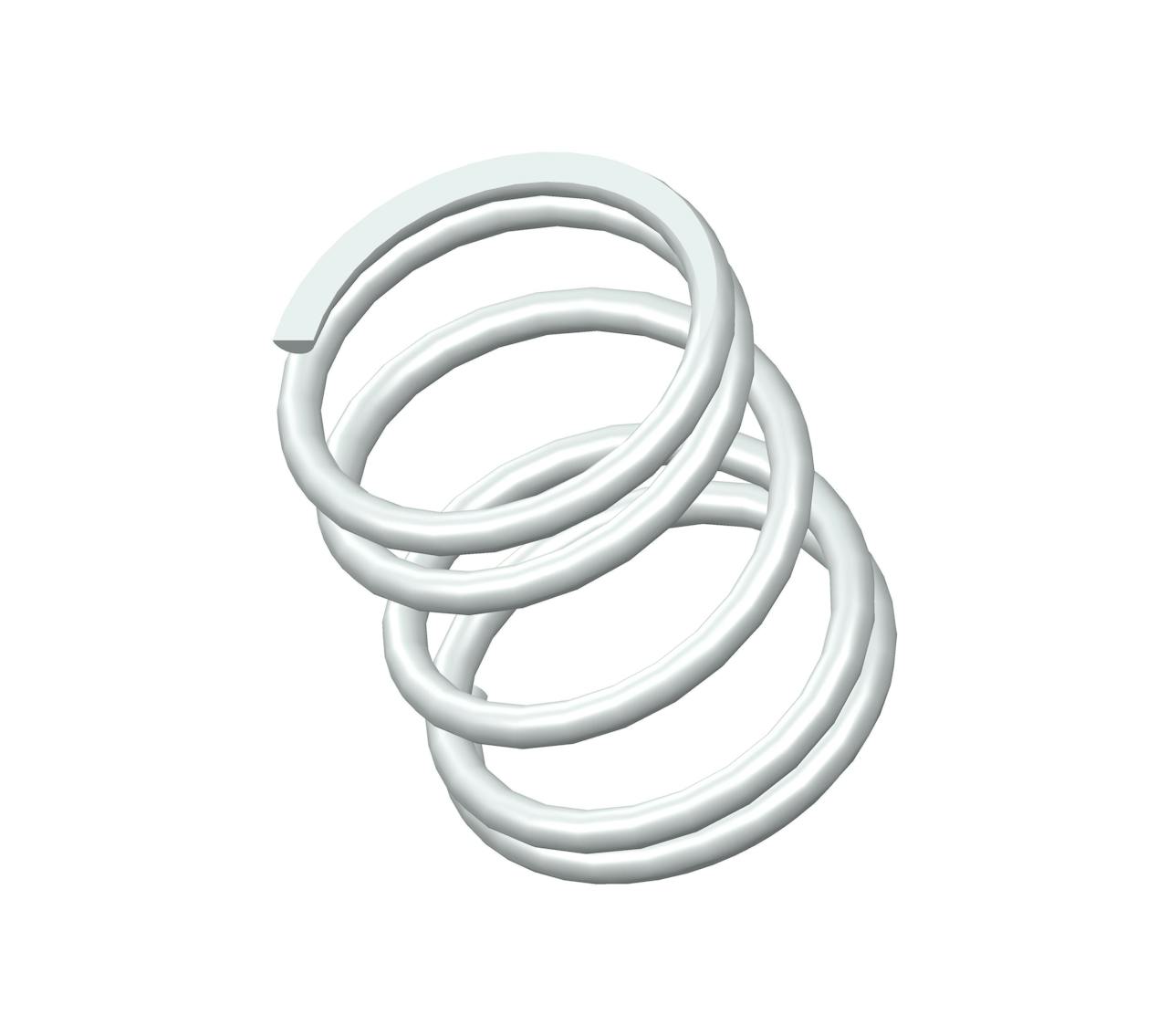

U-32CS - 0.66" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.562", and an I.D. of 0.46".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-32 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.66 in |
| Inside Diameter | 0.46 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.562 in |
| Part Type | Standard |
| Rate | 22 lbs/in |
| SKU | U-32CS |
| Solid Length | 0.26 in |
| Suggested Max Deflection | 0.37 in |
| Suggested Max Load | 8 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.051 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-32 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 16.76 mm |
| Inside Diameter | 11.68 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 14.27 mm |
| Part Type | Standard |
| Rate | 3.85 N/mm |
| SKU | U-32CS |
| Solid Length | 6.6 mm |
| Suggested Max Deflection | 9.4 mm |
| Suggested Max Load | 35.58 N |
| Total Coils | 5 |
| Wire Diameter | 1.3 mm |
The U-32 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The U-32CS compression spring is designed with a free length of 0.97" total of 10.3 coils, and a rate of 73 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The U-32 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The U-32CS compression spring is designed with a free length of 0.97" total of 10.3 coils, and a rate of 73 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The U-32 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
