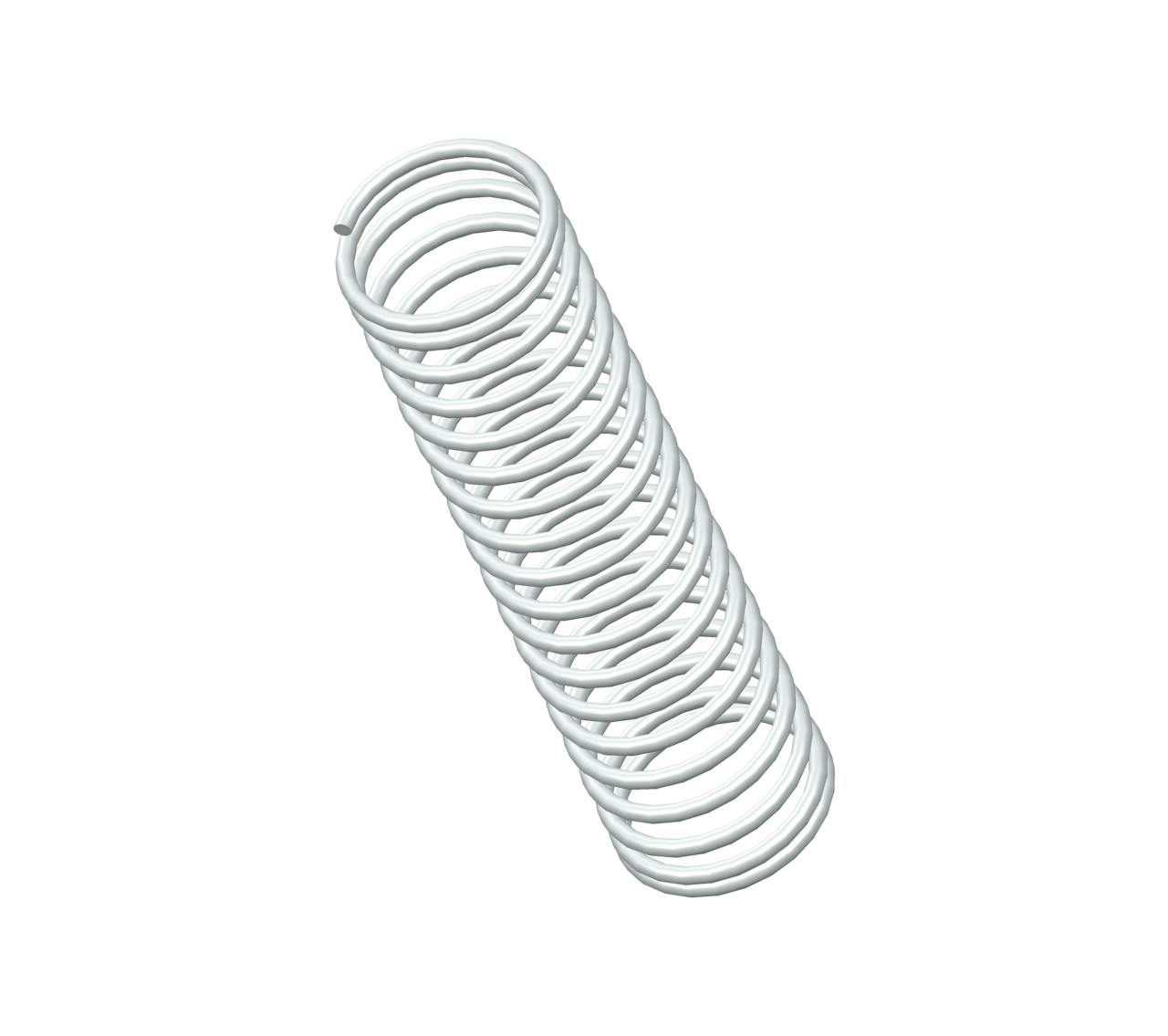

U-25CS - 0.75" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 19 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.158".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-25 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.75 in |
| Inside Diameter | 0.158 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 0.73 lbs/in |
| SKU | U-25CS |
| Solid Length | 0.3 in |
| Suggested Max Deflection | 0.45 in |
| Suggested Max Load | 0.33 lbf |
| Total Coils | 19 |
| Wire Diameter | 0.015 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | U-25 |
| Ends | Closed |
| Finish | None |
| Free Length | 19.05 mm |
| Inside Diameter | 4.01 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 0.13 N/mm |
| SKU | U-25CS |
| Solid Length | 7.62 mm |
| Suggested Max Deflection | 11.43 mm |
| Suggested Max Load | 1.47 N |
| Total Coils | 19 |
| Wire Diameter | 0.38 mm |
The compression spring U-25CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the U-25 compression spring design exhibits exceptional tensile strength and resilience.
The U-25 design is manufactured with a free length of 0.75", with an outer diameter of 0.188", an inner diameter of 0.158", and a total of 19 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.73 lbs/in.
The U-25CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring U-25 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The U-25 design is manufactured with a free length of 0.75", with an outer diameter of 0.188", an inner diameter of 0.158", and a total of 19 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.73 lbs/in.
The U-25CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring U-25 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
