U-100CS - 0.59" Music Wire Compression Spring

Inventory:
Estimated Lead Time

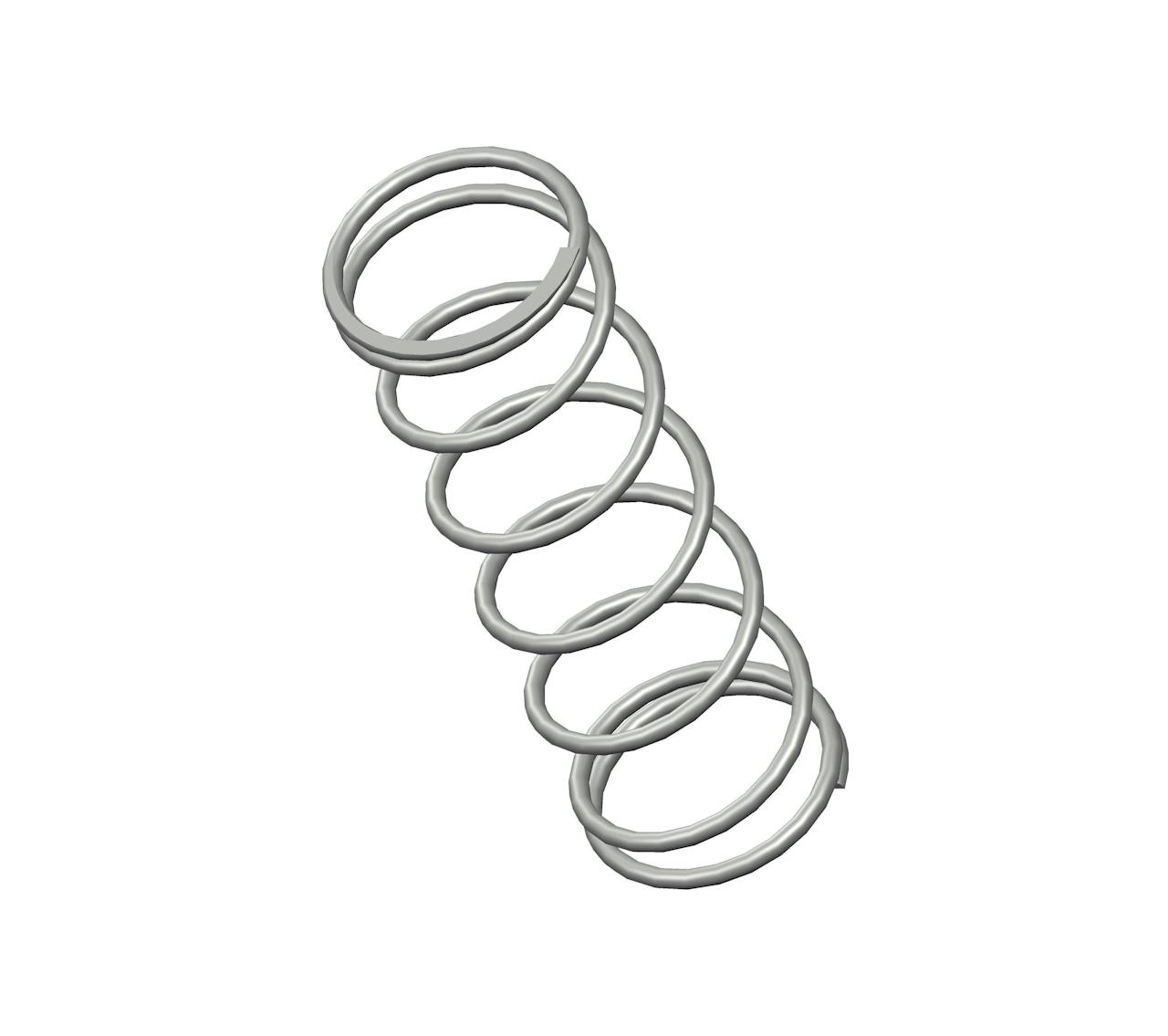

Compression spring manufactured from music wire with 8 coils and closed & ground ends. This spring features an O.D. of 0.188", and an I.D. of 0.16".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name U-100
Ends Closed & Ground
Finish None
Free Length 0.59 in
Inside Diameter 0.16 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 1.7 lbs/in
SKU U-100CS
Solid Length 0.11 in
Suggested Max Deflection 0.48 in
Suggested Max Load 0.84 lbf
Total Coils 8
Wire Diameter 0.014 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name U-100
Ends Closed & Ground
Finish None
Free Length 14.99 mm
Inside Diameter 4.06 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.3 N/mm
SKU U-100CS
Solid Length 2.79 mm
Suggested Max Deflection 12.19 mm
Suggested Max Load 3.74 N
Total Coils 8
Wire Diameter 0.36 mm
The compression spring U-100CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the U-100 compression spring design exhibits exceptional tensile strength and resilience.

The U-100 design is manufactured with a free length of 0.59", with an outer diameter of 0.188", an inner diameter of 0.16", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.7 lbs/in.

The U-100CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring U-100 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
