TT-69CS - 1.63" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

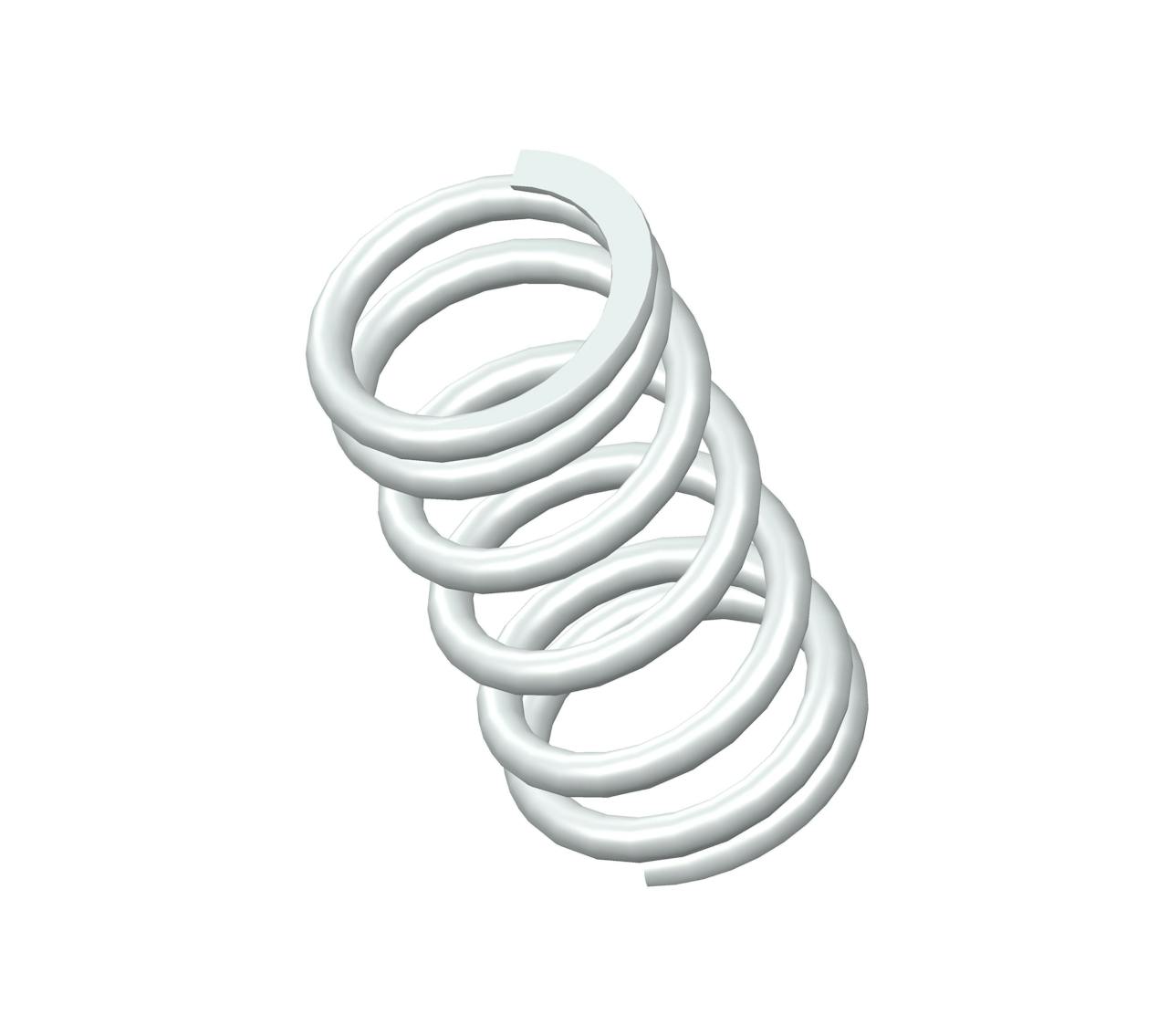

Compression spring manufactured from 302/304 stainless steel with 6.5 coils and closed & ground ends. This spring features an O.D. of 0.859", and an I.D. of 0.649".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | TT-69 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.63 in |
| Inside Diameter | 0.649 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.859 in |
| Part Type | Standard |
| Rate | 79 lbs/in |
| SKU | TT-69CS |
| Solid Length | 0.68 in |
| Suggested Max Deflection | 0.51 in |
| Suggested Max Load | 40 lbf |
| Total Coils | 6.5 |
| Wire Diameter | 0.105 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | TT-69 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 41.4 mm |
| Inside Diameter | 16.48 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 21.82 mm |
| Part Type | Standard |
| Rate | 13.83 N/mm |
| SKU | TT-69CS |
| Solid Length | 17.27 mm |
| Suggested Max Deflection | 12.95 mm |
| Suggested Max Load | 177.92 N |
| Total Coils | 6.5 |
| Wire Diameter | 2.67 mm |
The compression spring TT-69CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the TT-69 compression spring design exhibits exceptional tensile strength and resilience.
The TT-69 design is manufactured with a free length of 1.63", with an outer diameter of 0.859", an inner diameter of 0.649", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 79 lbs/in.
The TT-69CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring TT-69 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The TT-69 design is manufactured with a free length of 1.63", with an outer diameter of 0.859", an inner diameter of 0.649", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 79 lbs/in.
The TT-69CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring TT-69 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
