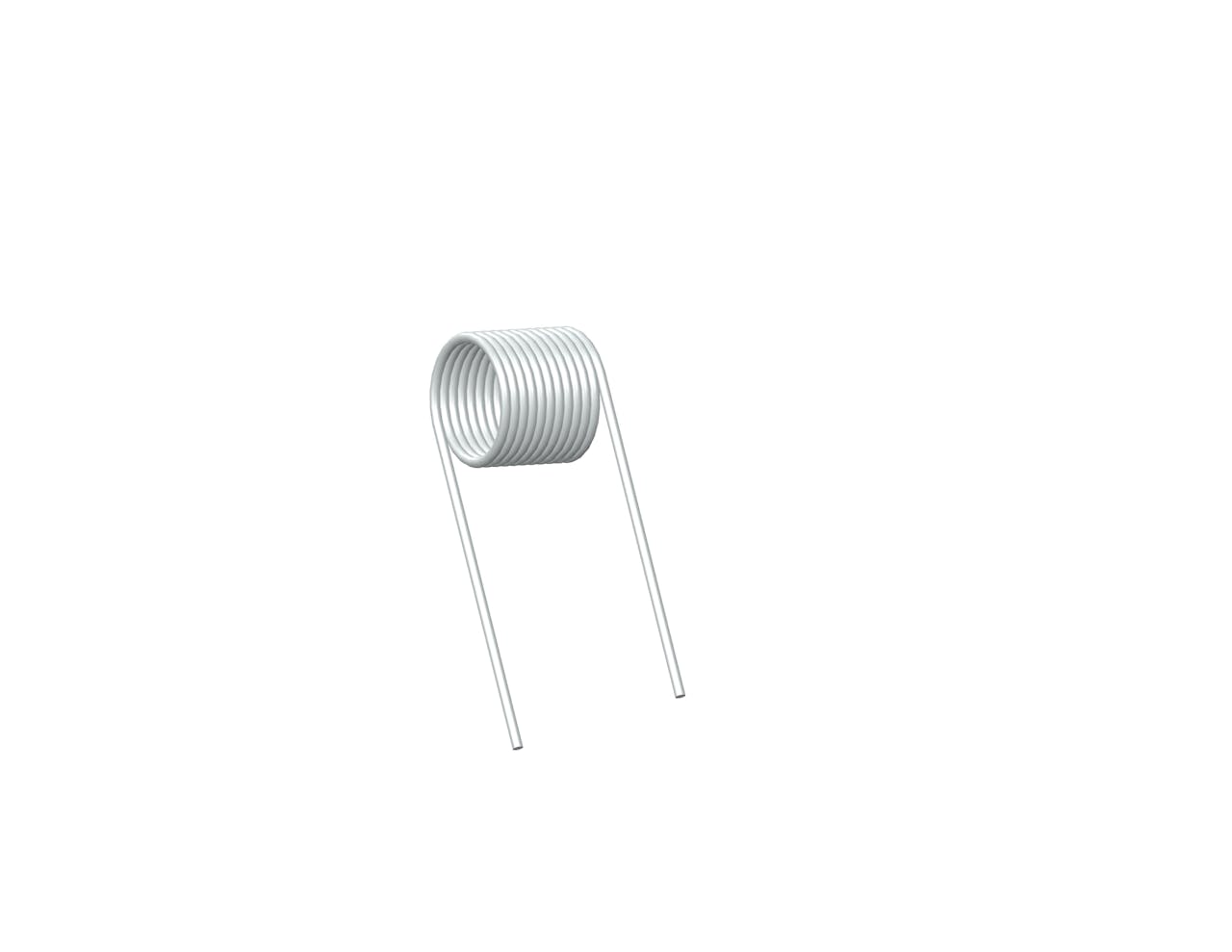

TO-5251RSCS - 0 Degree, 0.0583 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory:
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 11.5 total coils and 3.5 Inch legs. This spring features an O.D. of 1.369 Inch, an I.D. of 1.159 Inch, and a spring rate of 0.0583 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 0 deg
Body Length 1.44 in
Brand Century Spring
Display Name TO-5251RS
Finish None
Inside Diameter 1.159 in
Leg Length 3.5 in
Mandrel Diameter 0.92 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 317
Max Torque (suggested) 18 lbs-in
Measurement Units Standard
Outside Diameter 1.369 in
Rate 0.0583 lbf-in/deg
SKU TO-5251RSCS
Total Coils 11.5
Wind Direction Right
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Angle Between Legs 0 deg
Body Length 36.58 mm
Brand Century Spring
Display Name TO-5251RS
Finish None
Inside Diameter 29.44 mm
Leg Length 88.9 mm
Mandrel Diameter 23.37 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 317
Max Torque (suggested) 3.15 N-mm
Measurement Units Standard
Outside Diameter 34.77 mm
Rate 6.59 N-mm/deg
SKU TO-5251RSCS
Total Coils 11.5
Wind Direction Right
Wire Diameter 2.67 mm
