TO-5200LCS - 90 Degree, 0.1904 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory:
Estimated Lead Time

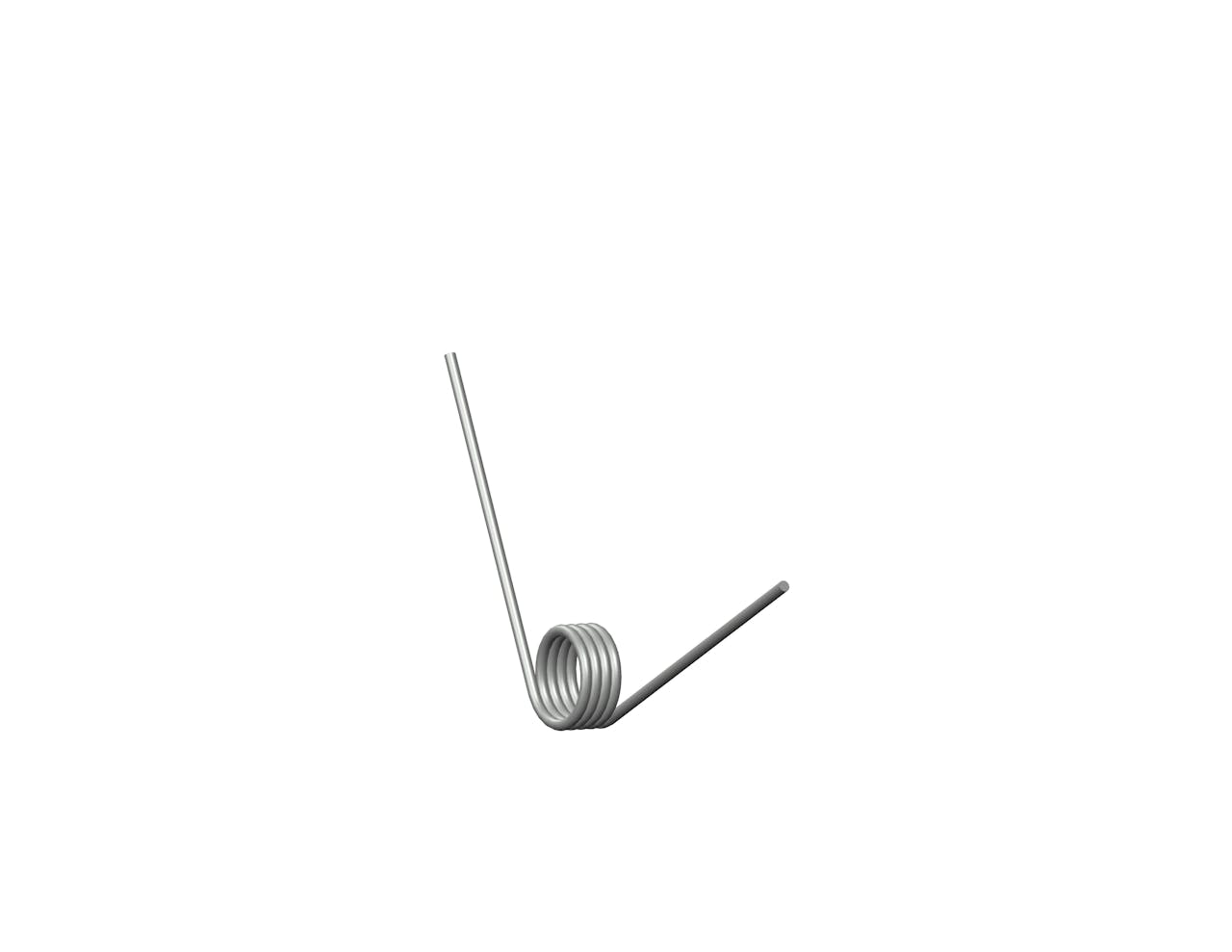

Torsion spring in Music Wire with 4.25 total coils and 3 Inch legs. This spring features an O.D. of 0.871 Inch, an I.D. of 0.681 Inch, and a spring rate of 0.1904 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 90 deg
Body Length 0.55 in
Brand Century Spring
Display Name TO-5200L
Finish None
Inside Diameter 0.681 in
Leg Length 3 in
Mandrel Diameter 0.55 in
Material Music Wire
Max Deflection (deg) (suggested) 82
Max Torque (suggested) 16 lbs-in
Measurement Units Standard
Outside Diameter 0.871 in
Rate 0.1904 lbf-in/deg
SKU TO-5200LCS
Total Coils 4.25
Wind Direction Left
Wire Diameter 0.095 in
Specs (in metric)
Label Value
Angle Between Legs 90 deg
Body Length 13.97 mm
Brand Century Spring
Display Name TO-5200L
Finish None
Inside Diameter 17.3 mm
Leg Length 76.2 mm
Mandrel Diameter 13.97 mm
Material Music Wire
Max Deflection (deg) (suggested) 82
Max Torque (suggested) 2.8 N-mm
Measurement Units Standard
Outside Diameter 22.12 mm
Rate 21.51 N-mm/deg
SKU TO-5200LCS
Total Coils 4.25
Wind Direction Left
Wire Diameter 2.41 mm
