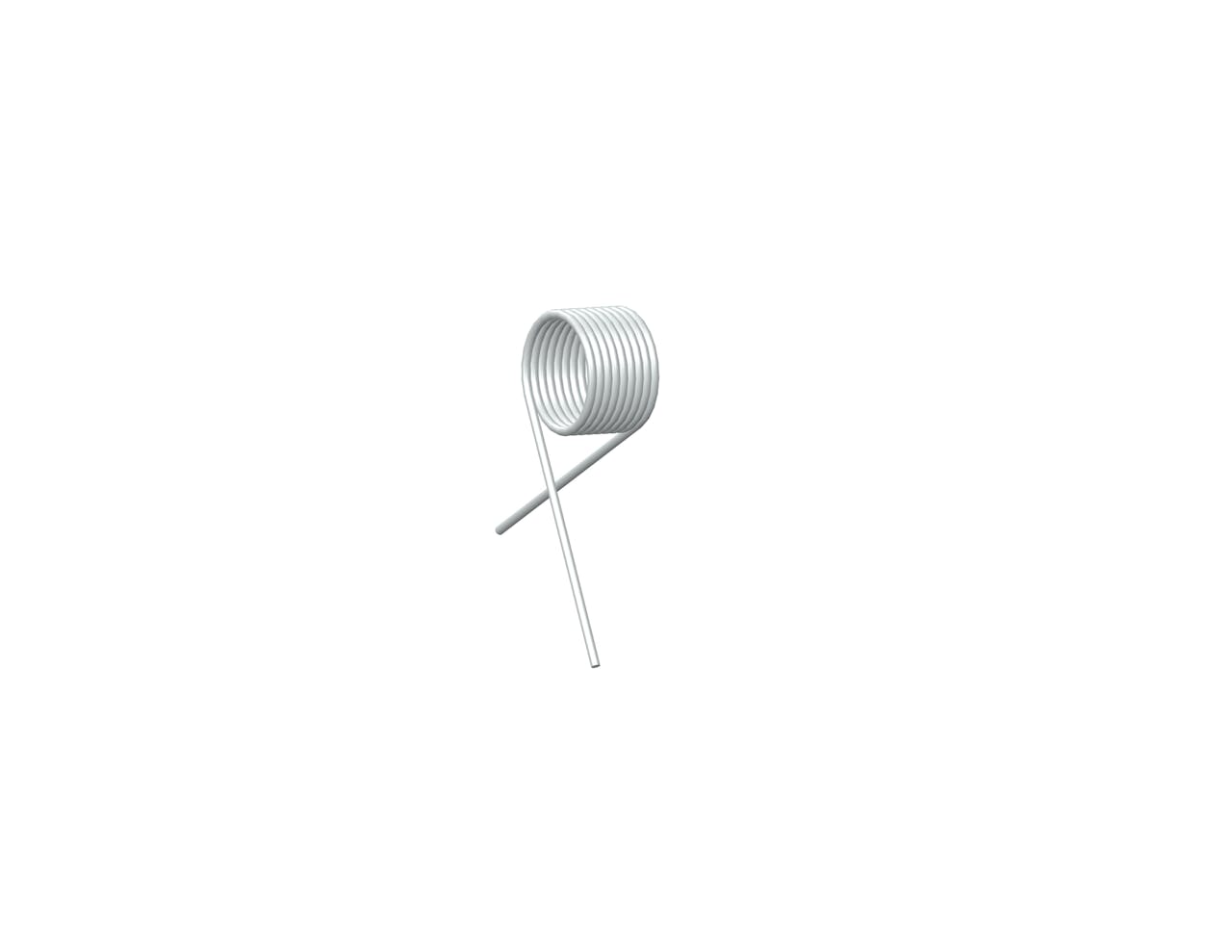

TO-5199RSCS - 270 Degree, 0.0191 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Torsion spring in 302/304 Stainless Steel with 8.75 total coils and 2 Inch legs. This spring features an O.D. of 0.871 Inch, an I.D. of 0.746 Inch, and a spring rate of 0.0191 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 0.68 in |
| Brand | Century Spring |
| Display Name | TO-5199RS |
| Finish | None |
| Inside Diameter | 0.746 in |
| Leg Length | 2 in |
| Mandrel Diameter | 0.59 in |
| Material | 302/304 Stainless Steel |
| Max Deflection (deg) (suggested) | 234 |
| Max Torque (suggested) | 4.5 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.871 in |
| Rate | 0.0191 lbf-in/deg |
| SKU | TO-5199RSCS |
| Total Coils | 8.75 |
| Wind Direction | Right |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 17.27 mm |
| Brand | Century Spring |
| Display Name | TO-5199RS |
| Finish | None |
| Inside Diameter | 18.95 mm |
| Leg Length | 50.8 mm |
| Mandrel Diameter | 14.99 mm |
| Material | 302/304 Stainless Steel |
| Max Deflection (deg) (suggested) | 234 |
| Max Torque (suggested) | 0.79 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 22.12 mm |
| Rate | 2.16 N-mm/deg |
| SKU | TO-5199RSCS |
| Total Coils | 8.75 |
| Wind Direction | Right |
| Wire Diameter | 1.59 mm |
