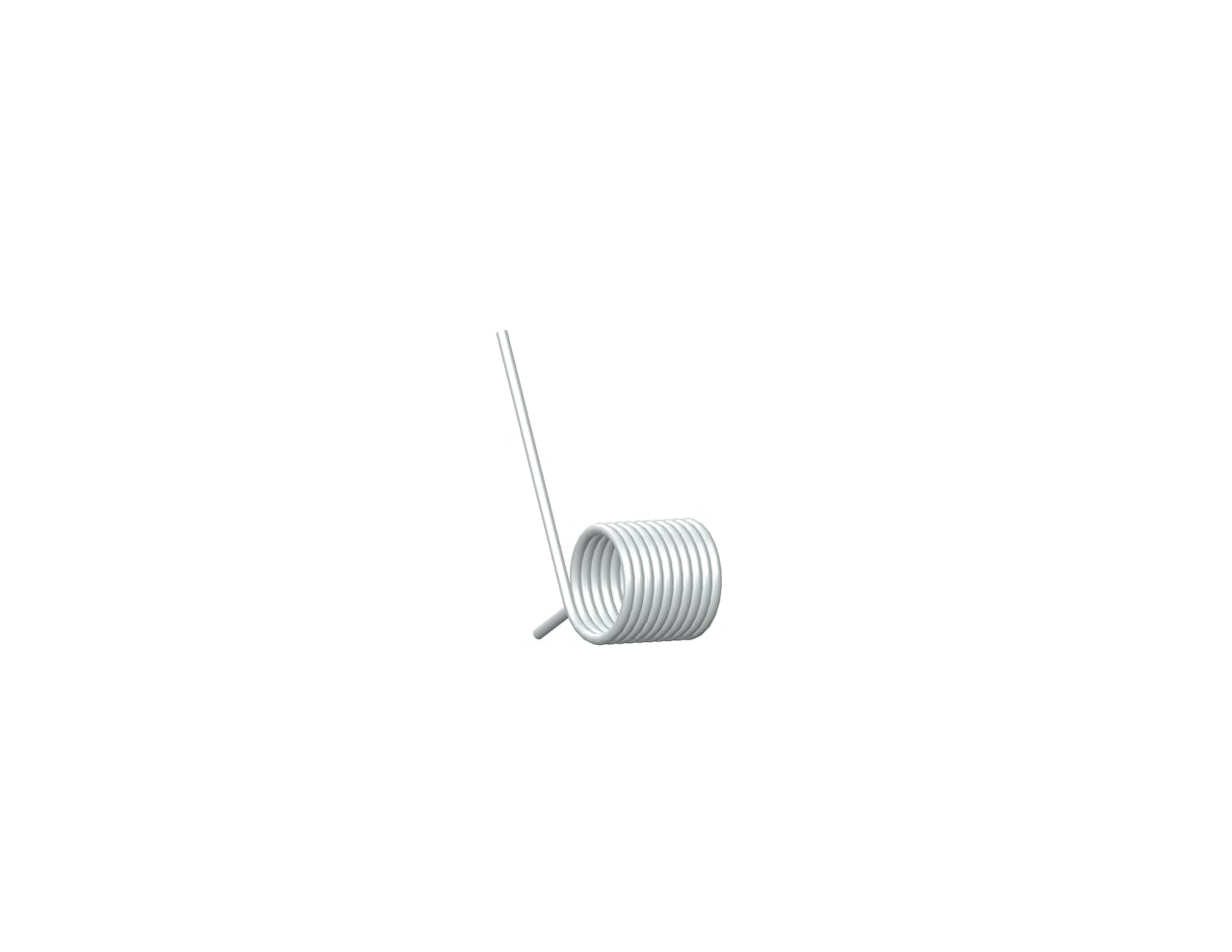

TO-5195LSCS - 270 Degree, 0.0361 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory:
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 9.75 total coils and 2 Inch legs. This spring features an O.D. of 0.835 Inch, an I.D. of 0.679 Inch, and a spring rate of 0.0361 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.92 in
Brand Century Spring
Display Name TO-5195LS
Finish None
Inside Diameter 0.679 in
Leg Length 2 in
Mandrel Diameter 0.54 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 217
Max Torque (suggested) 7.8 lbs-in
Measurement Units Standard
Outside Diameter 0.835 in
Rate 0.0361 lbf-in/deg
SKU TO-5195LSCS
Total Coils 9.75
Wind Direction Left
Wire Diameter 0.078 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 23.37 mm
Brand Century Spring
Display Name TO-5195LS
Finish None
Inside Diameter 17.25 mm
Leg Length 50.8 mm
Mandrel Diameter 13.72 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 217
Max Torque (suggested) 1.37 N-mm
Measurement Units Standard
Outside Diameter 21.21 mm
Rate 4.08 N-mm/deg
SKU TO-5195LSCS
Total Coils 9.75
Wind Direction Left
Wire Diameter 1.98 mm
