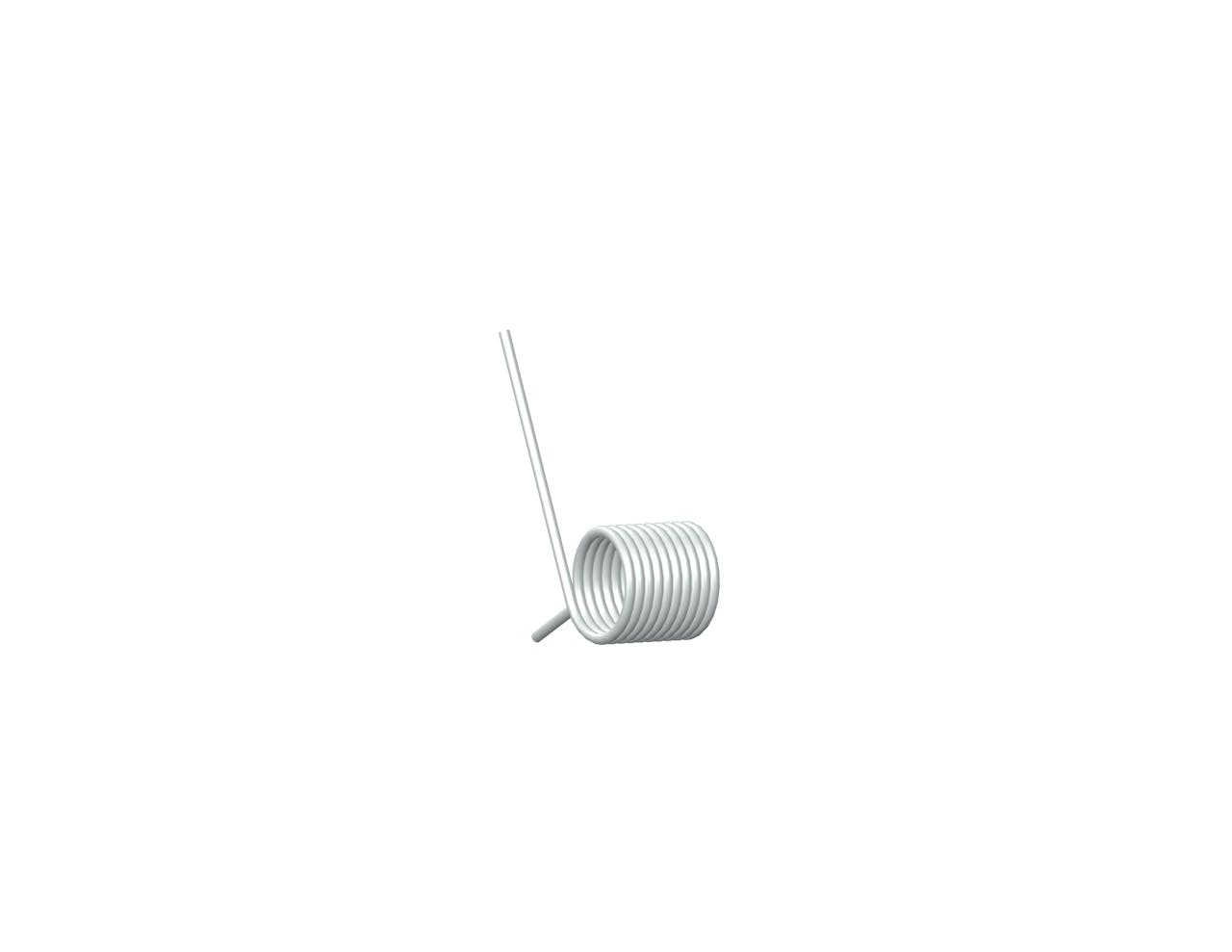

TO-5193LSCS - 270 Degree, 0.0321 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory:
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 9.75 total coils and 2 Inch legs. This spring features an O.D. of 0.81 Inch, an I.D. of 0.66 Inch, and a spring rate of 0.0321 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.89 in
Brand Century Spring
Display Name TO-5193LS
Finish None
Inside Diameter 0.66 in
Leg Length 2 in
Mandrel Diameter 0.53 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 217
Max Torque (suggested) 7 lbs-in
Measurement Units Standard
Outside Diameter 0.81 in
Rate 0.0321 lbf-in/deg
SKU TO-5193LSCS
Total Coils 9.75
Wind Direction Left
Wire Diameter 0.075 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 22.61 mm
Brand Century Spring
Display Name TO-5193LS
Finish None
Inside Diameter 16.76 mm
Leg Length 50.8 mm
Mandrel Diameter 13.46 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 217
Max Torque (suggested) 1.23 N-mm
Measurement Units Standard
Outside Diameter 20.57 mm
Rate 3.63 N-mm/deg
SKU TO-5193LSCS
Total Coils 9.75
Wind Direction Left
Wire Diameter 1.91 mm
