TO-5168LCS - 90 Degree, 0.1161 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory:
Estimated Lead Time

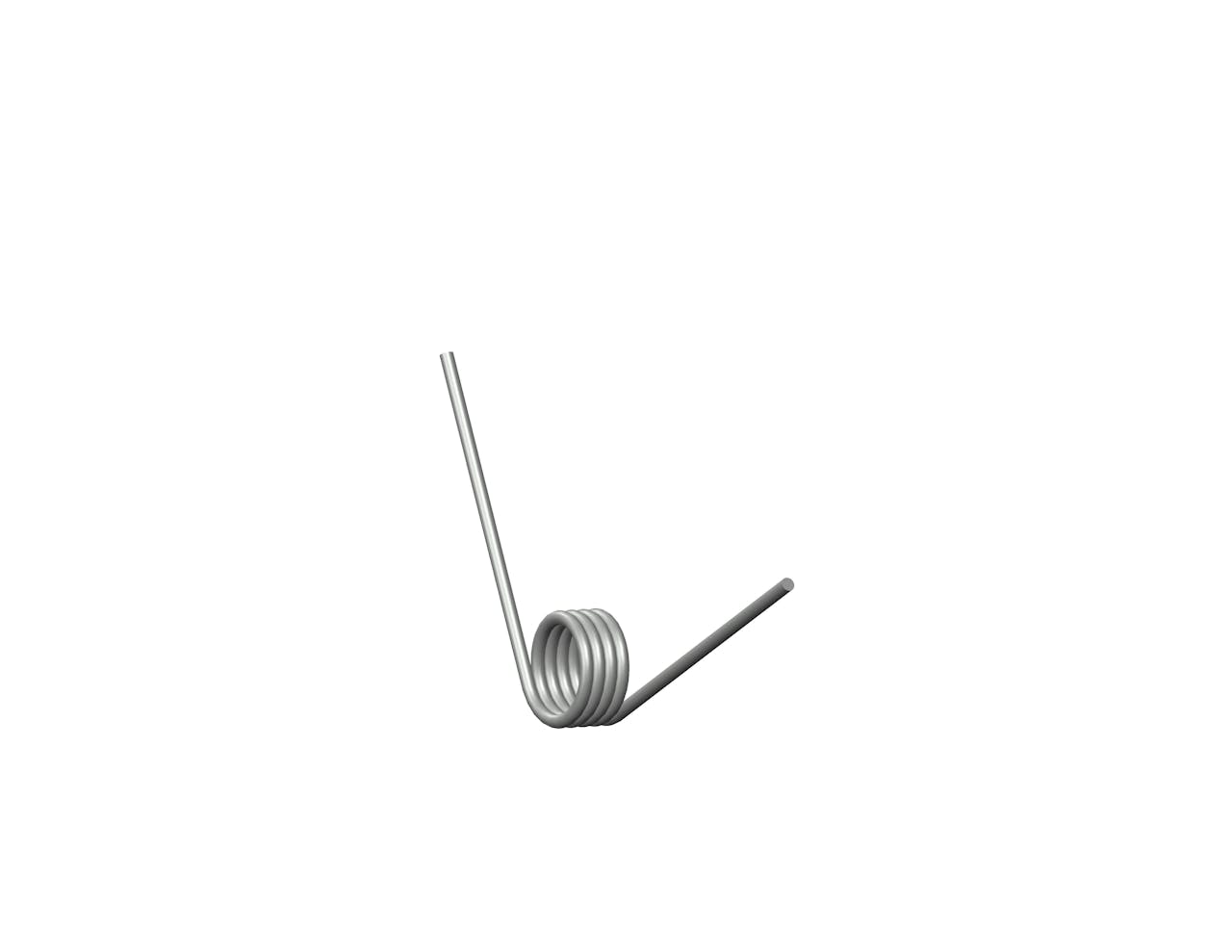

Torsion spring in Music Wire with 4.25 total coils and 2 Inch legs. This spring features an O.D. of 0.657 Inch, an I.D. of 0.501 Inch, and a spring rate of 0.1161 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 90 deg
Body Length 0.45 in
Brand Century Spring
Display Name TO-5168L
Finish None
Inside Diameter 0.501 in
Leg Length 2 in
Mandrel Diameter 0.41 in
Material Music Wire
Max Deflection (deg) (suggested) 76
Max Torque (suggested) 8.9 lbs/in
Measurement Units Standard
Outside Diameter 0.657 in
Rate 0.1161 lbf-in/deg
SKU TO-5168LCS
Total Coils 4.25
Wind Direction Left
Wire Diameter 0.078 in
Specs (in metric)
Label Value
Angle Between Legs 90 deg
Body Length 11.43 mm
Brand Century Spring
Display Name TO-5168L
Finish None
Inside Diameter 12.73 mm
Leg Length 50.8 mm
Mandrel Diameter 10.41 mm
Material Music Wire
Max Deflection (deg) (suggested) 76
Max Torque (suggested) 1.56 N-mm
Measurement Units Standard
Outside Diameter 16.69 mm
Rate 13.12 N-mm/deg
SKU TO-5168LCS
Total Coils 4.25
Wind Direction Left
Wire Diameter 1.98 mm
