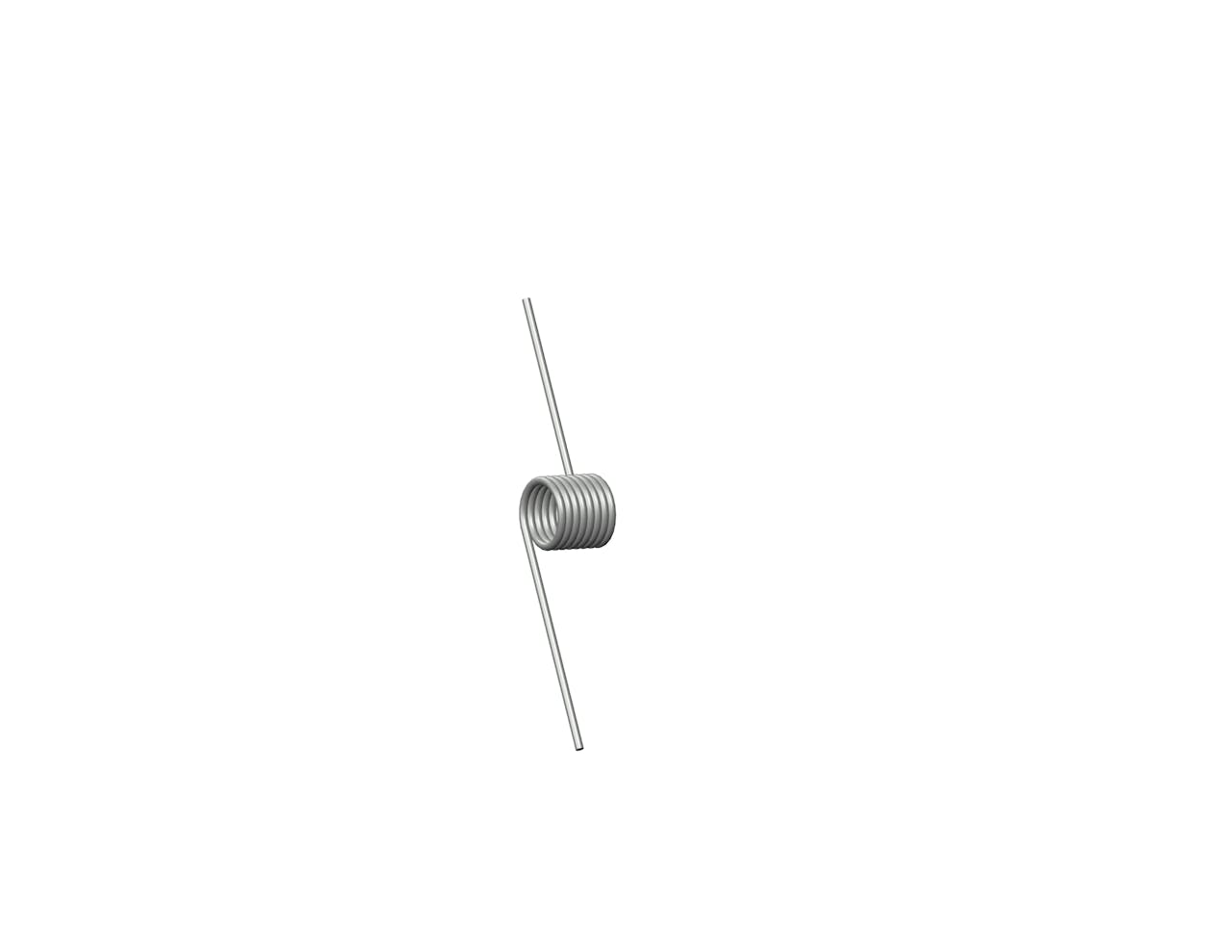

TO-5163RCS - 180 Degree, 0.0417 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory:
Estimated Lead Time

Torsion spring in Music Wire with 8 total coils and 2 Inch legs. This spring features an O.D. of 0.625 Inch, an I.D. of 0.485 Inch, and a spring rate of 0.0417 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 180 deg
Body Length 0.69 in
Brand Century Spring
Display Name TO-5163R
Finish None
Inside Diameter 0.485 in
Leg Length 2 in
Mandrel Diameter 0.39 in
Material Music Wire
Max Deflection (deg) (suggested) 155
Max Torque (suggested) 6.5 lbs/in
Measurement Units Standard
Outside Diameter 0.625 in
Rate 0.0417 lbf-in/deg
SKU TO-5163RCS
Total Coils 8
Wind Direction Right
Wire Diameter 0.07 in
Specs (in metric)
Label Value
Angle Between Legs 180 deg
Body Length 17.53 mm
Brand Century Spring
Display Name TO-5163R
Finish None
Inside Diameter 12.32 mm
Leg Length 50.8 mm
Mandrel Diameter 9.91 mm
Material Music Wire
Max Deflection (deg) (suggested) 155
Max Torque (suggested) 1.14 N-mm
Measurement Units Standard
Outside Diameter 15.88 mm
Rate 4.71 N-mm/deg
SKU TO-5163RCS
Total Coils 8
Wind Direction Right
Wire Diameter 1.78 mm
