TO-5159LCS - 0 Degree, 0.0076 Inch-Pounds per Degree Rate Music Wire Torsion Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

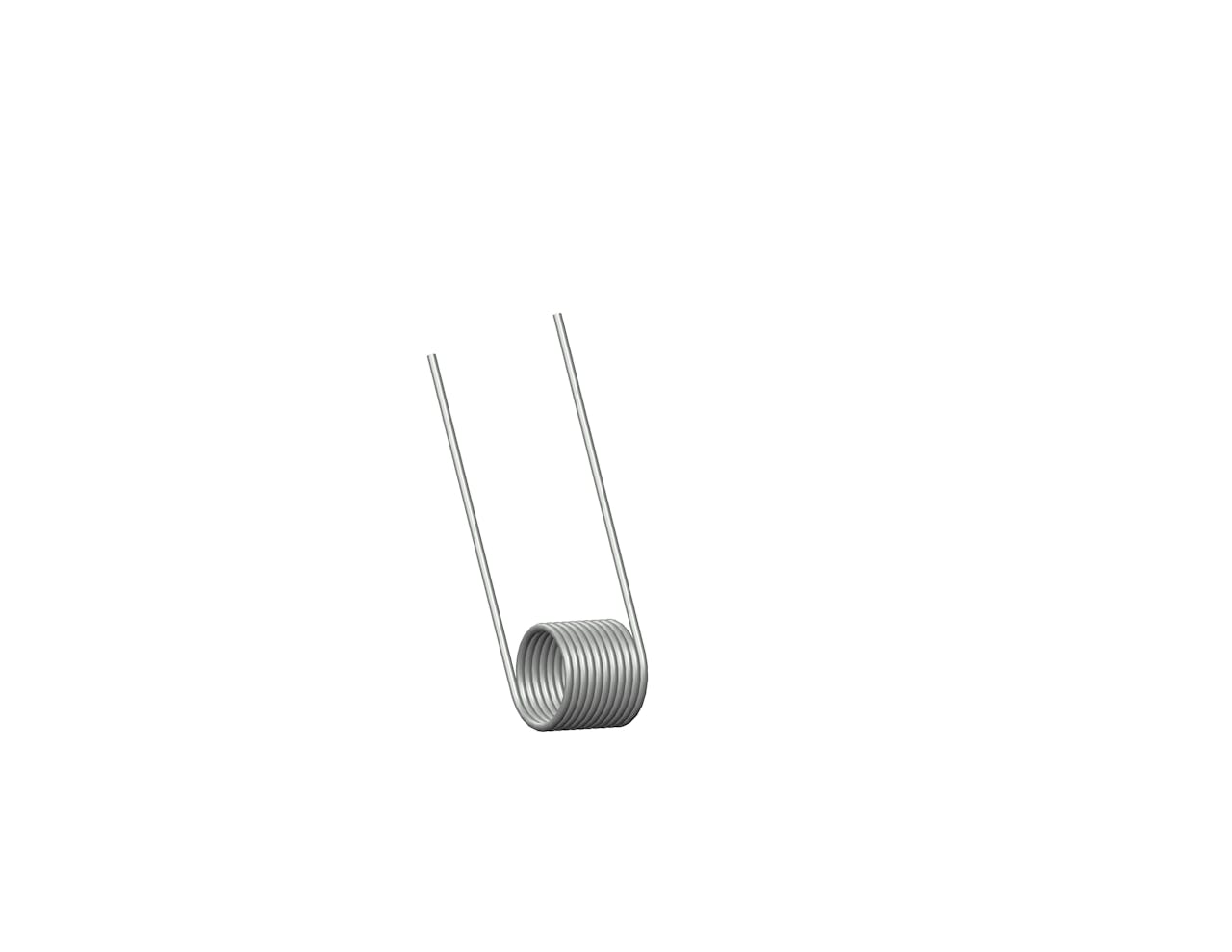

Torsion spring in Music Wire with 10.5 total coils and 2 Inch legs. This spring features an O.D. of 0.595 Inch, an I.D. of 0.499 Inch, and a spring rate of 0.0076 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 0 deg |
| Body Length | 0.61 in |
| Brand | Century Spring |
| Display Name | TO-5159L |
| Finish | None |
| Inside Diameter | 0.499 in |
| Leg Length | 2 in |
| Mandrel Diameter | 0.39 in |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 313 |
| Max Torque (suggested) | 2.4 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.595 in |
| Rate | 0.0076 lbf-in/deg |
| SKU | TO-5159LCS |
| Total Coils | 10.5 |
| Wind Direction | Left |
| Wire Diameter | 0.048 in |
| Label | Value |
|---|---|
| Angle Between Legs | 0 deg |
| Body Length | 15.49 mm |
| Brand | Century Spring |
| Display Name | TO-5159L |
| Finish | None |
| Inside Diameter | 12.67 mm |
| Leg Length | 50.8 mm |
| Mandrel Diameter | 9.91 mm |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 313 |
| Max Torque (suggested) | 0.42 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 15.11 mm |
| Rate | 0.86 N-mm/deg |
| SKU | TO-5159LCS |
| Total Coils | 10.5 |
| Wind Direction | Left |
| Wire Diameter | 1.22 mm |
