TO-5156LCS - 225 Degree, 0.0241 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

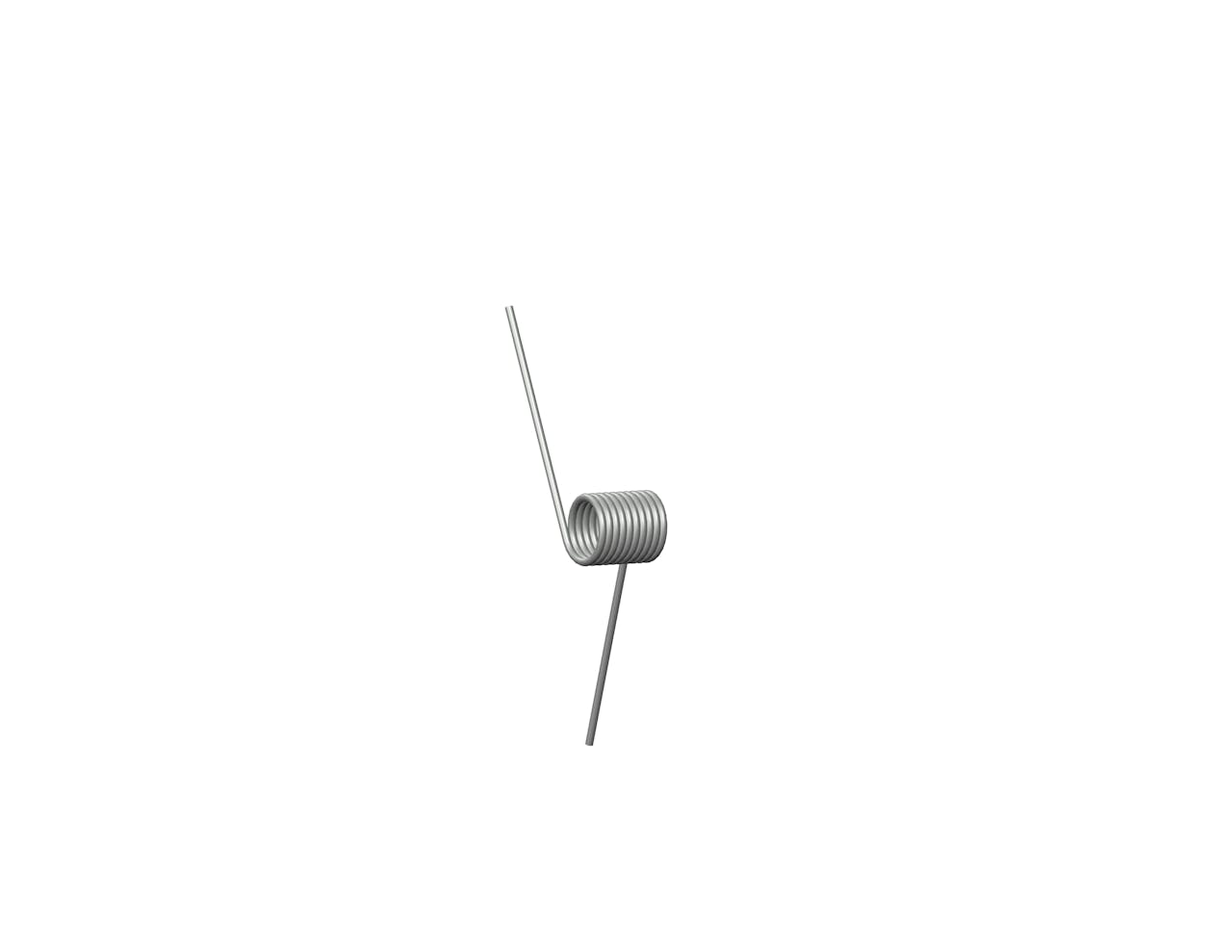

Torsion spring in Music Wire with 9.875 total coils and 2 Inch legs. This spring features an O.D. of 0.578 Inch, an I.D. of 0.453 Inch, and a spring rate of 0.0241 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 225 deg
Body Length 0.75 in
Brand Century Spring
Display Name TO-5156L
Finish None
Inside Diameter 0.453 in
Leg Length 2 in
Mandrel Diameter 0.36 in
Material Music Wire
Max Deflection (deg) (suggested) 204
Max Torque (suggested) 4.9 lbs/in
Measurement Units Standard
Outside Diameter 0.578 in
Rate 0.0241 lbf-in/deg
SKU TO-5156LCS
Total Coils 9.875
Wind Direction Left
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Angle Between Legs 225 deg
Body Length 19.05 mm
Brand Century Spring
Display Name TO-5156L
Finish None
Inside Diameter 11.51 mm
Leg Length 50.8 mm
Mandrel Diameter 9.14 mm
Material Music Wire
Max Deflection (deg) (suggested) 204
Max Torque (suggested) 0.86 N-mm
Measurement Units Standard
Outside Diameter 14.68 mm
Rate 2.72 N-mm/deg
SKU TO-5156LCS
Total Coils 9.88
Wind Direction Left
Wire Diameter 1.59 mm
