Century Spring

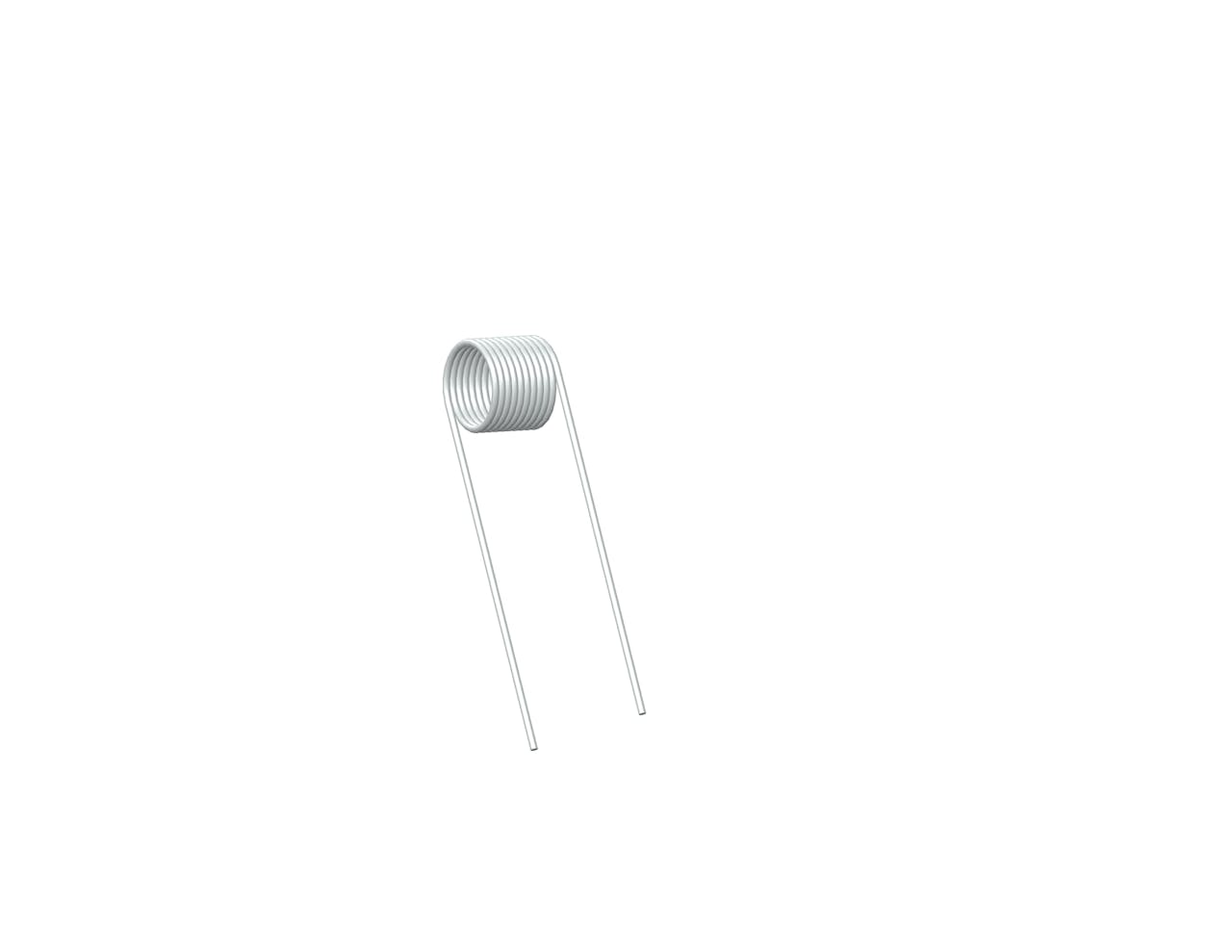

TO-5129RSCS - 0 Degree, 0.0039 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 10.5 total coils and 2 Inch legs. This spring features an O.D. of 0.508 Inch, an I.D. of 0.428 Inch, and a spring rate of 0.0039 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 0 deg
Body Length 0.51 in
Brand Century Spring
Display Name TO-5129RS
Finish None
Inside Diameter 0.428 in
Leg Length 2 in
Mandrel Diameter 0.34 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 313
Max Torque (suggested) 1.2 lbs/in
Measurement Units Standard
Outside Diameter 0.508 in
Rate 0.0039 lbf-in/deg
SKU TO-5129RSCS
Total Coils 10.5
Wind Direction Right
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Angle Between Legs 0 deg
Body Length 12.95 mm
Brand Century Spring
Display Name TO-5129RS
Finish None
Inside Diameter 10.87 mm
Leg Length 50.8 mm
Mandrel Diameter 8.64 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 313
Max Torque (suggested) 0.21 N-mm
Measurement Units Standard
Outside Diameter 12.9 mm
Rate 0.44 N-mm/deg
SKU TO-5129RSCS
Total Coils 10.5
Wind Direction Right
Wire Diameter 1.02 mm
