Century Spring

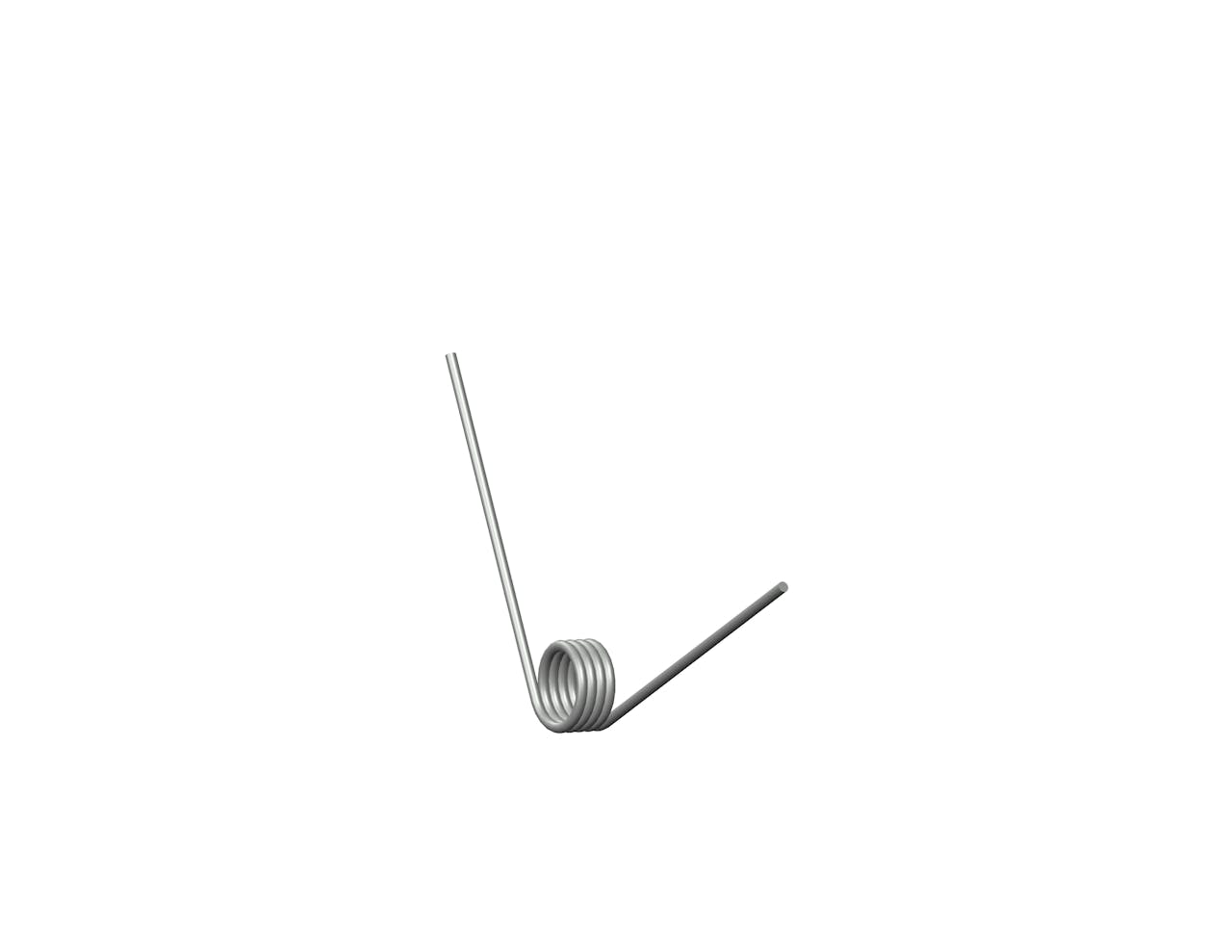

TO-5128LCS - 90 Degree, 0.05 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Music Wire with 4.25 total coils and 2 Inch legs. This spring features an O.D. of 0.499 Inch, an I.D. of 0.381 Inch, and a spring rate of 0.05 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 90 deg
Body Length 0.34 in
Brand Century Spring
Display Name TO-5128L
Finish None
Inside Diameter 0.381 in
Leg Length 2 in
Mandrel Diameter 0.31 in
Material Music Wire
Max Deflection (deg) (suggested) 80
Max Torque (suggested) 4 lbs/in
Measurement Units Standard
Outside Diameter 0.499 in
Rate 0.05 lbf-in/deg
SKU TO-5128LCS
Total Coils 4.25
Wind Direction Left
Wire Diameter 0.059 in
Specs (in metric)
Label Value
Angle Between Legs 90 deg
Body Length 8.64 mm
Brand Century Spring
Display Name TO-5128L
Finish None
Inside Diameter 9.68 mm
Leg Length 50.8 mm
Mandrel Diameter 7.87 mm
Material Music Wire
Max Deflection (deg) (suggested) 80
Max Torque (suggested) 0.7 N-mm
Measurement Units Standard
Outside Diameter 12.67 mm
Rate 5.65 N-mm/deg
SKU TO-5128LCS
Total Coils 4.25
Wind Direction Left
Wire Diameter 1.5 mm
