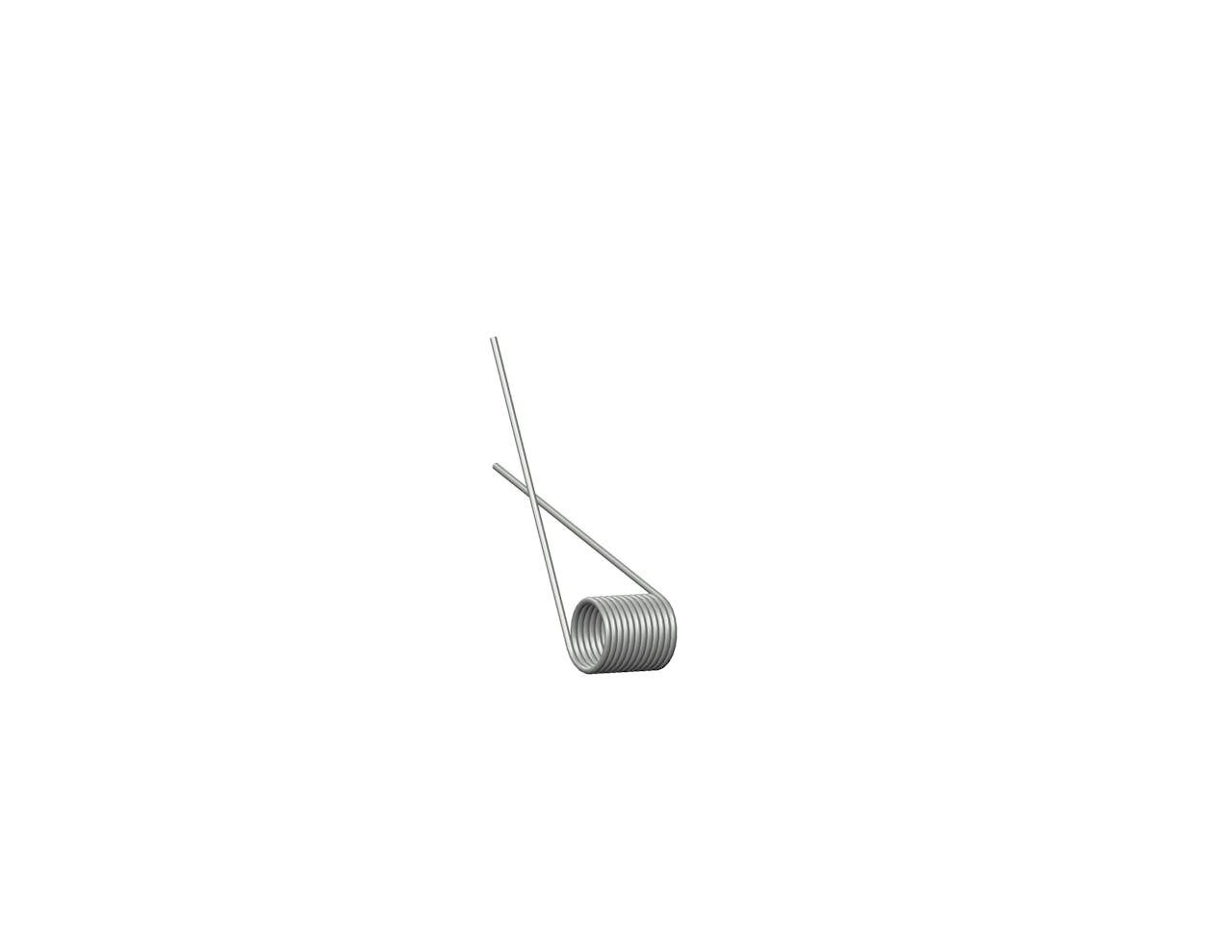

TO-5117LCS - 315 Degree, 0.005 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Music Wire with 11.625 total coils and 2 Inch legs. This spring features an O.D. of 0.464 Inch, an I.D. of 0.38 Inch, and a spring rate of 0.005 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 315 deg
Body Length 0.58 in
Brand Century Spring
Display Name TO-5117L
Finish None
Inside Diameter 0.38 in
Leg Length 2 in
Mandrel Diameter 0.3 in
Material Music Wire
Max Deflection (deg) (suggested) 318
Max Torque (suggested) 1.6 lbs/in
Measurement Units Standard
Outside Diameter 0.464 in
Rate 0.005 lbf-in/deg
SKU TO-5117LCS
Total Coils 11.625
Wind Direction Left
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Angle Between Legs 315 deg
Body Length 14.73 mm
Brand Century Spring
Display Name TO-5117L
Finish None
Inside Diameter 9.65 mm
Leg Length 50.8 mm
Mandrel Diameter 7.62 mm
Material Music Wire
Max Deflection (deg) (suggested) 318
Max Torque (suggested) 0.28 N-mm
Measurement Units Standard
Outside Diameter 11.79 mm
Rate 0.56 N-mm/deg
SKU TO-5117LCS
Total Coils 11.63
Wind Direction Left
Wire Diameter 1.07 mm
