TO-5104RSCS - 90 Degree, 0.0281 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

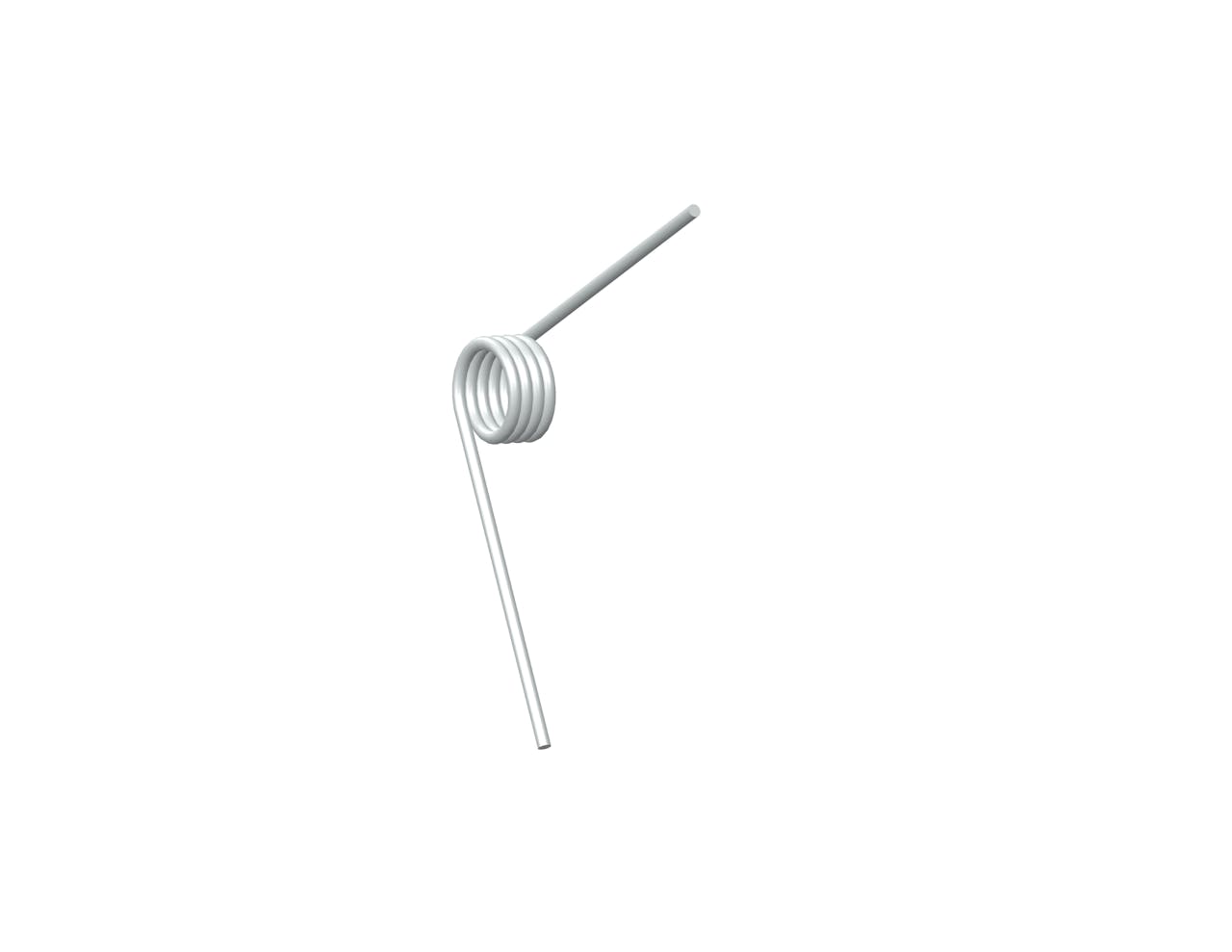

Torsion spring in 302/304 Stainless Steel with 4.25 total coils and 1.3 Inch legs. This spring features an O.D. of 0.388 Inch, an I.D. of 0.292 Inch, and a spring rate of 0.0281 Inch-Pounds per Degree.

Unit System
Specs (in standard)
Label Value
Angle Between Legs 90 deg
Body Length 0.28 in
Brand Century Spring
Display Name TO-5104RS
Finish None
Inside Diameter 0.292 in
Leg Length 1.3 in
Mandrel Diameter 0.24 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 71
Max Torque (suggested) 2 lbs/in
Measurement Units Standard
Outside Diameter 0.388 in
Rate 0.0281 lbf-in/deg
SKU TO-5104RSCS
Total Coils 4.25
Wind Direction Right
Wire Diameter 0.048 in
