TO-5104LSCS - 90 Degree, 0.0281 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory:
Estimated Lead Time

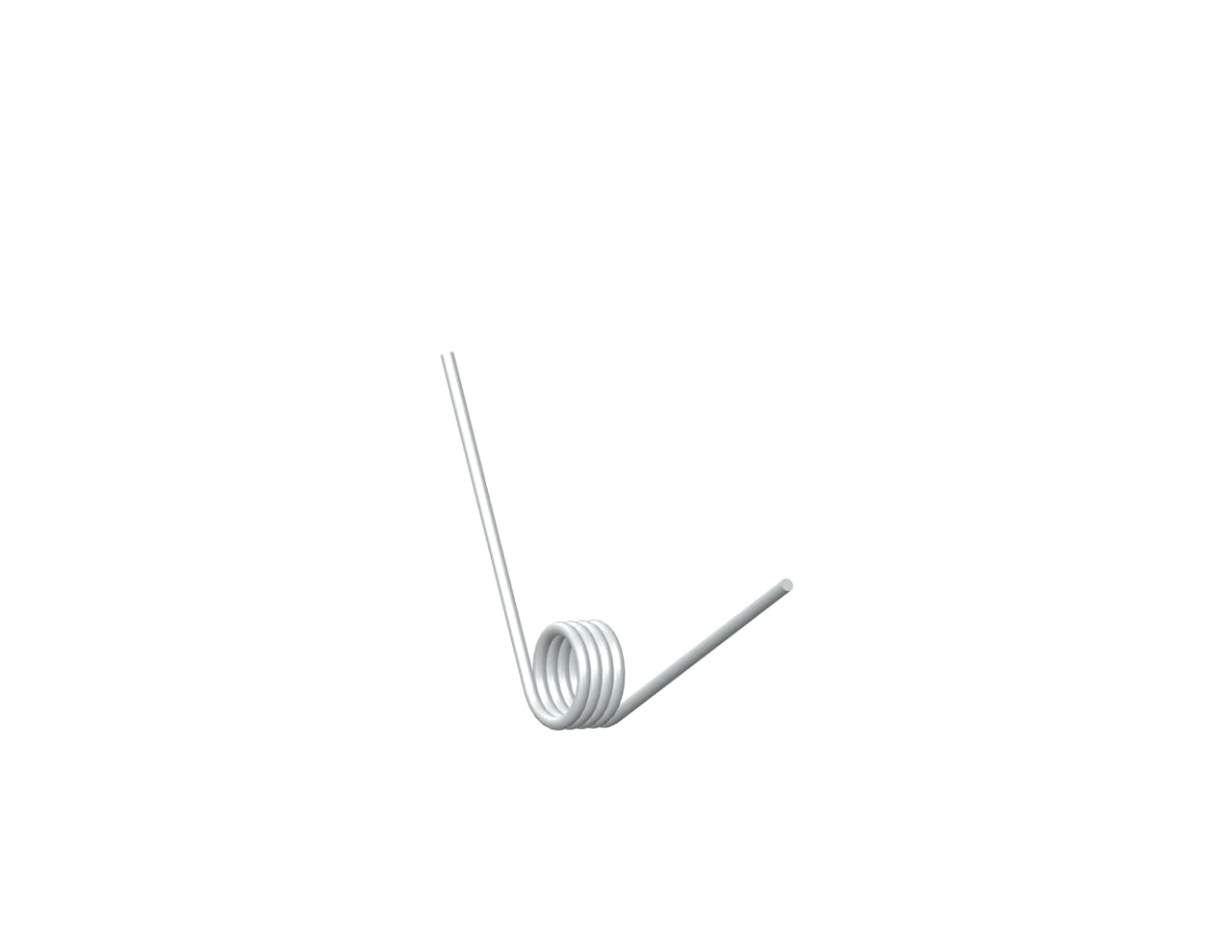

Torsion spring in 302/304 Stainless Steel with 4.25 total coils and 1.3 Inch legs. This spring features an O.D. of 0.388 Inch, an I.D. of 0.292 Inch, and a spring rate of 0.0281 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 90 deg
Body Length 0.28 in
Brand Century Spring
Display Name TO-5104LS
Finish None
Inside Diameter 0.292 in
Leg Length 1.3 in
Mandrel Diameter 0.24 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 71
Max Torque (suggested) 2 lbs-in
Measurement Units Standard
Outside Diameter 0.388 in
Rate 0.0281 lbf-in/deg
SKU TO-5104LSCS
Total Coils 4.25
Wind Direction Left
Wire Diameter 0.048 in
Specs (in metric)
Label Value
Angle Between Legs 90 deg
Body Length 7.11 mm
Brand Century Spring
Display Name TO-5104LS
Finish None
Inside Diameter 7.42 mm
Leg Length 33.02 mm
Mandrel Diameter 6.1 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 71
Max Torque (suggested) 0.35 N-mm
Measurement Units Standard
Outside Diameter 9.86 mm
Rate 3.17 N-mm/deg
SKU TO-5104LSCS
Total Coils 4.25
Wind Direction Left
Wire Diameter 1.22 mm
