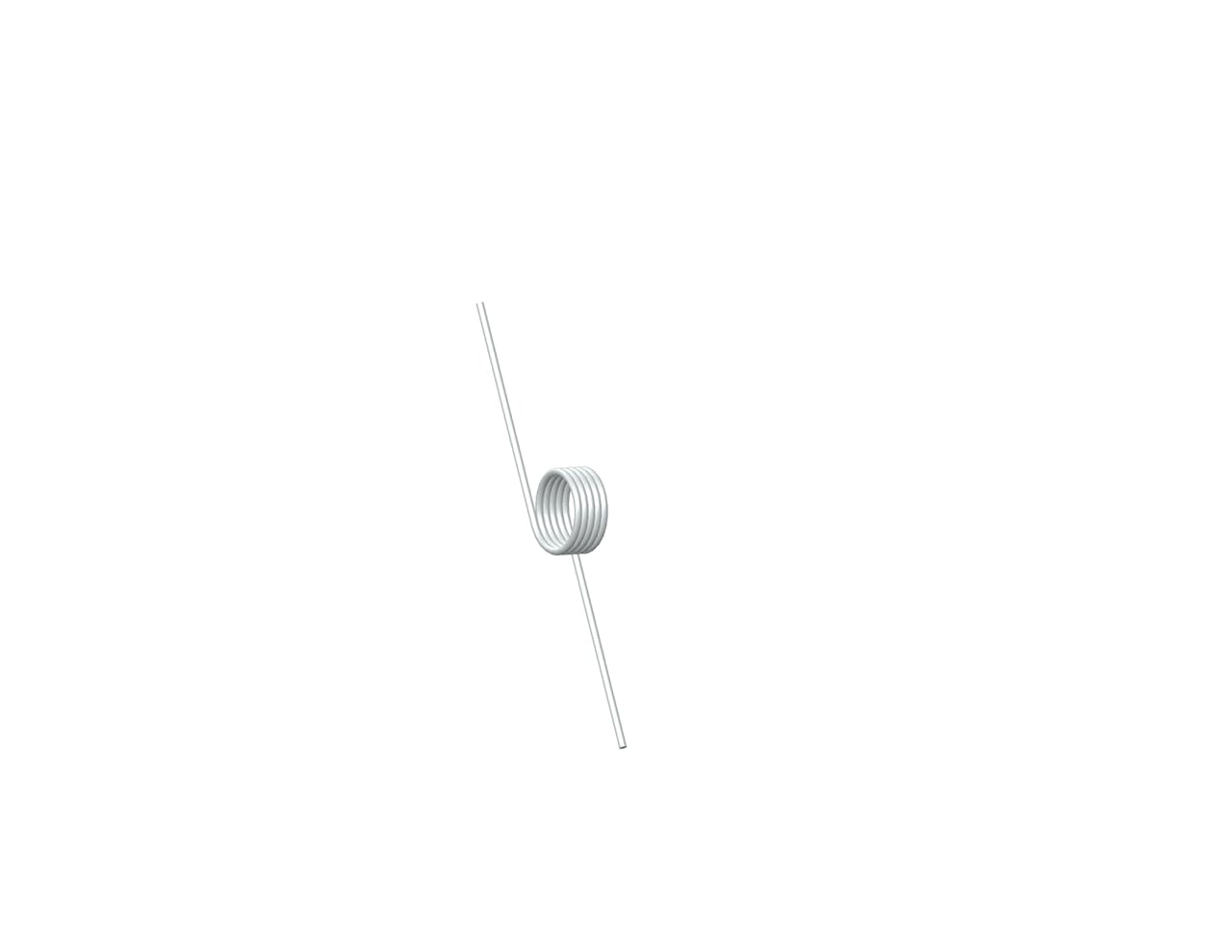

TO-5091LSCS - 180 Degree, 0.0046 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory:
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 5 total coils and 1 Inch legs. This spring features an O.D. of 0.366 Inch, an I.D. of 0.302 Inch, and a spring rate of 0.0046 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 180 deg
Body Length 0.21 in
Brand Century Spring
Display Name TO-5091LS
Finish None
Inside Diameter 0.302 in
Leg Length 1 in
Mandrel Diameter 0.24 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 140
Max Torque (suggested) 0.64 lbs-in
Measurement Units Standard
Outside Diameter 0.366 in
Rate 0.0046 lbf-in/deg
SKU TO-5091LSCS
Total Coils 5
Wind Direction Left
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Angle Between Legs 180 deg
Body Length 5.33 mm
Brand Century Spring
Display Name TO-5091LS
Finish None
Inside Diameter 7.67 mm
Leg Length 25.4 mm
Mandrel Diameter 6.1 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 140
Max Torque (suggested) 0.11 N-mm
Measurement Units Standard
Outside Diameter 9.3 mm
Rate 0.52 N-mm/deg
SKU TO-5091LSCS
Total Coils 5
Wind Direction Left
Wire Diameter 0.81 mm
