TO-5080LCS - 90 Degree, 0.0239 Inch-Pounds per Degree Rate Music Wire Torsion Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

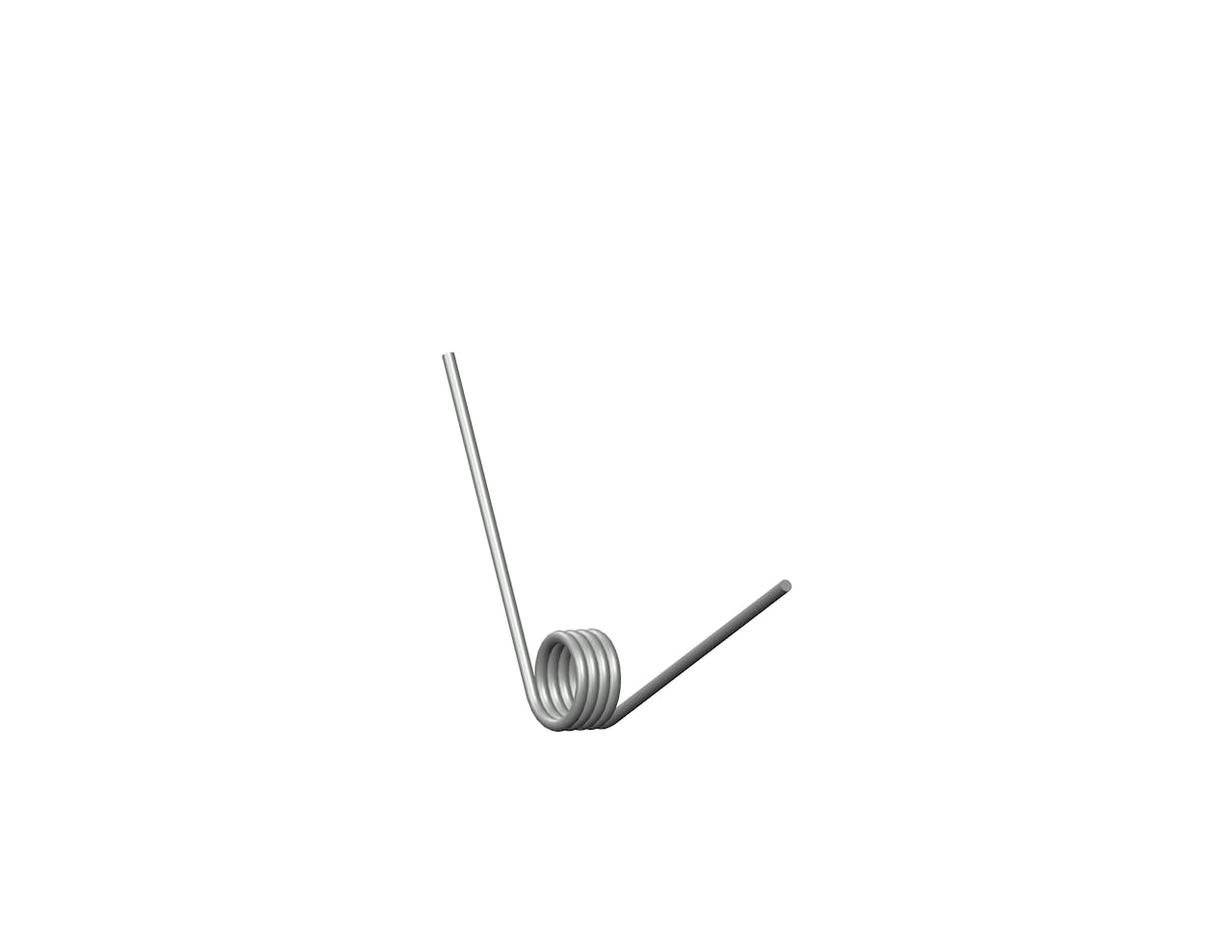

Torsion spring in Music Wire with 4.25 total coils and 1.3 Inch legs. This spring features an O.D. of 0.357 Inch, an I.D. of 0.267 Inch, and a spring rate of 0.0239 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 90 deg |
| Body Length | 0.26 in |
| Brand | Century Spring |
| Display Name | TO-5080L |
| Finish | None |
| Inside Diameter | 0.267 in |
| Leg Length | 1.3 in |
| Mandrel Diameter | 0.22 in |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 79 |
| Max Torque (suggested) | 1.9 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.357 in |
| Rate | 0.0239 lbf-in/deg |
| SKU | TO-5080LCS |
| Total Coils | 4.25 |
| Wind Direction | Left |
| Wire Diameter | 0.045 in |
| Label | Value |
|---|---|
| Angle Between Legs | 90 deg |
| Body Length | 6.6 mm |
| Brand | Century Spring |
| Display Name | TO-5080L |
| Finish | None |
| Inside Diameter | 6.78 mm |
| Leg Length | 33.02 mm |
| Mandrel Diameter | 5.59 mm |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 79 |
| Max Torque (suggested) | 0.33 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 9.07 mm |
| Rate | 2.7 N-mm/deg |
| SKU | TO-5080LCS |
| Total Coils | 4.25 |
| Wind Direction | Left |
| Wire Diameter | 1.14 mm |
