TO-5079RCS - 0 Degree, 0.0015 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory:
Estimated Lead Time

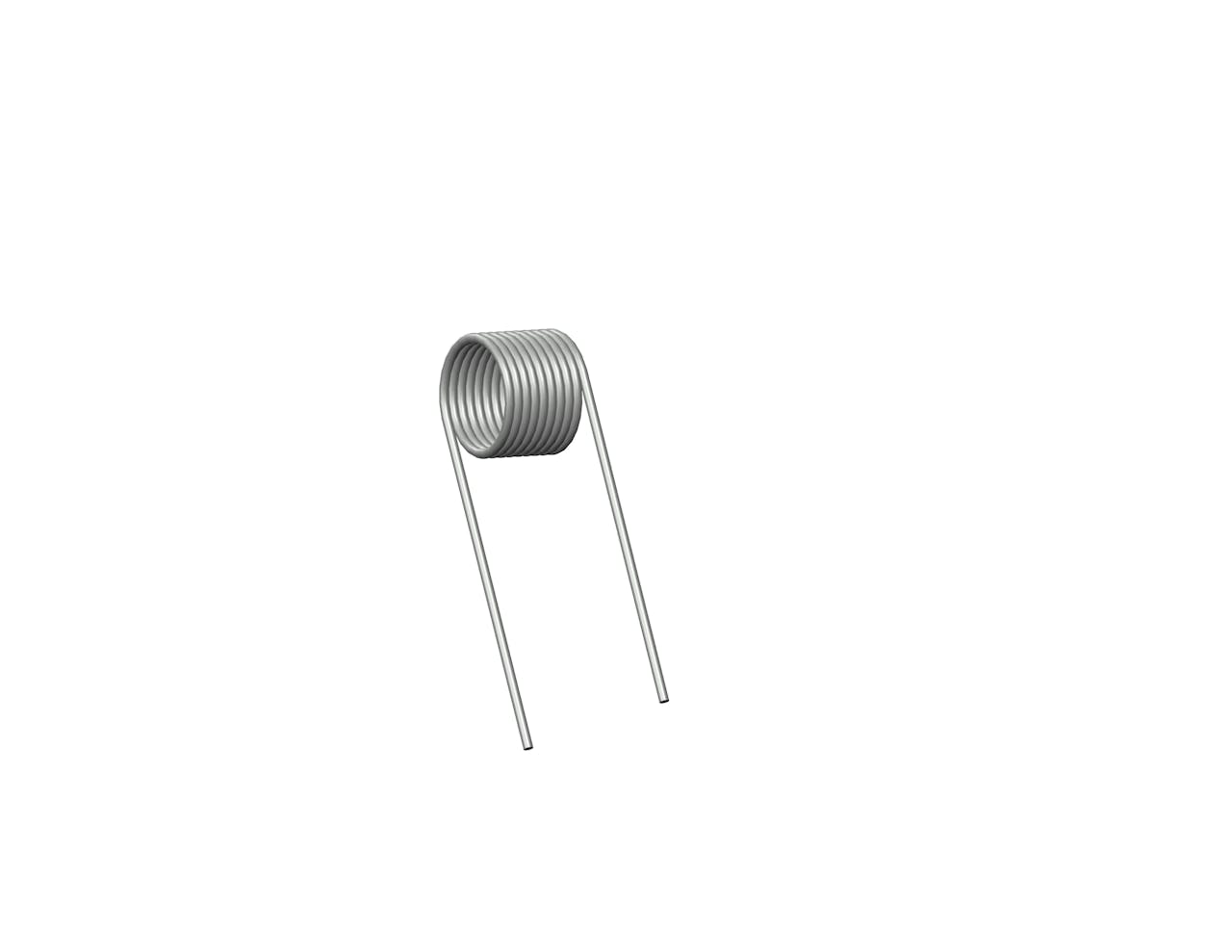

Torsion spring in Music Wire with 9.5 total coils and 1 Inch legs. This spring features an O.D. of 0.355 Inch, an I.D. of 0.299 Inch, and a spring rate of 0.0015 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 0 deg
Body Length 0.32 in
Brand Century Spring
Display Name TO-5079R
Finish None
Inside Diameter 0.299 in
Leg Length 1 in
Mandrel Diameter 0.23 in
Material Music Wire
Max Deflection (deg) (suggested) 329
Max Torque (suggested) 0.5 lbs-in
Measurement Units Standard
Outside Diameter 0.355 in
Rate 0.0015 lbf-in/deg
SKU TO-5079RCS
Total Coils 9.5
Wind Direction Right
Wire Diameter 0.028 in
Specs (in metric)
Label Value
Angle Between Legs 0 deg
Body Length 8.13 mm
Brand Century Spring
Display Name TO-5079R
Finish None
Inside Diameter 7.59 mm
Leg Length 25.4 mm
Mandrel Diameter 5.84 mm
Material Music Wire
Max Deflection (deg) (suggested) 329
Max Torque (suggested) 0.09 N-mm
Measurement Units Standard
Outside Diameter 9.02 mm
Rate 0.17 N-mm/deg
SKU TO-5079RCS
Total Coils 9.5
Wind Direction Right
Wire Diameter 0.71 mm
