TO-5075RCS - 270 Degree, 0.0016 Inch-Pounds per Degree Rate Music Wire Torsion Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

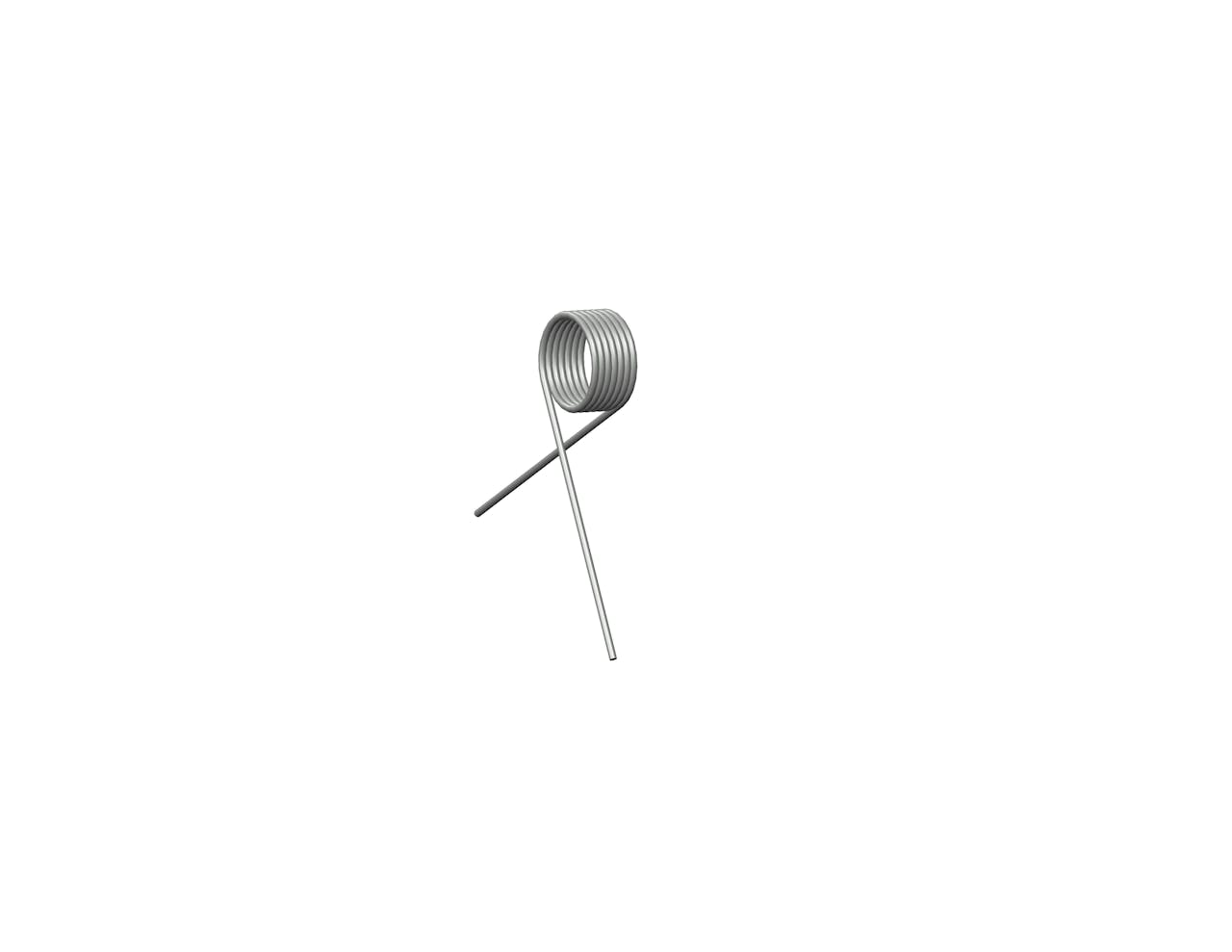

Torsion spring in Music Wire with 6.75 total coils and 1 Inch legs. This spring features an O.D. of 0.341 Inch, an I.D. of 0.291 Inch, and a spring rate of 0.0016 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 0.21 in |
| Brand | Century Spring |
| Display Name | TO-5075R |
| Finish | None |
| Inside Diameter | 0.291 in |
| Leg Length | 1 in |
| Mandrel Diameter | 0.23 in |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 230 |
| Max Torque (suggested) | 0.36 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.341 in |
| Rate | 0.0016 lbf-in/deg |
| SKU | TO-5075RCS |
| Total Coils | 6.75 |
| Wind Direction | Right |
| Wire Diameter | 0.025 in |
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 5.33 mm |
| Brand | Century Spring |
| Display Name | TO-5075R |
| Finish | None |
| Inside Diameter | 7.39 mm |
| Leg Length | 25.4 mm |
| Mandrel Diameter | 5.84 mm |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 230 |
| Max Torque (suggested) | 0.06 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 8.66 mm |
| Rate | 0.18 N-mm/deg |
| SKU | TO-5075RCS |
| Total Coils | 6.75 |
| Wind Direction | Right |
| Wire Diameter | 0.64 mm |
