Century Spring

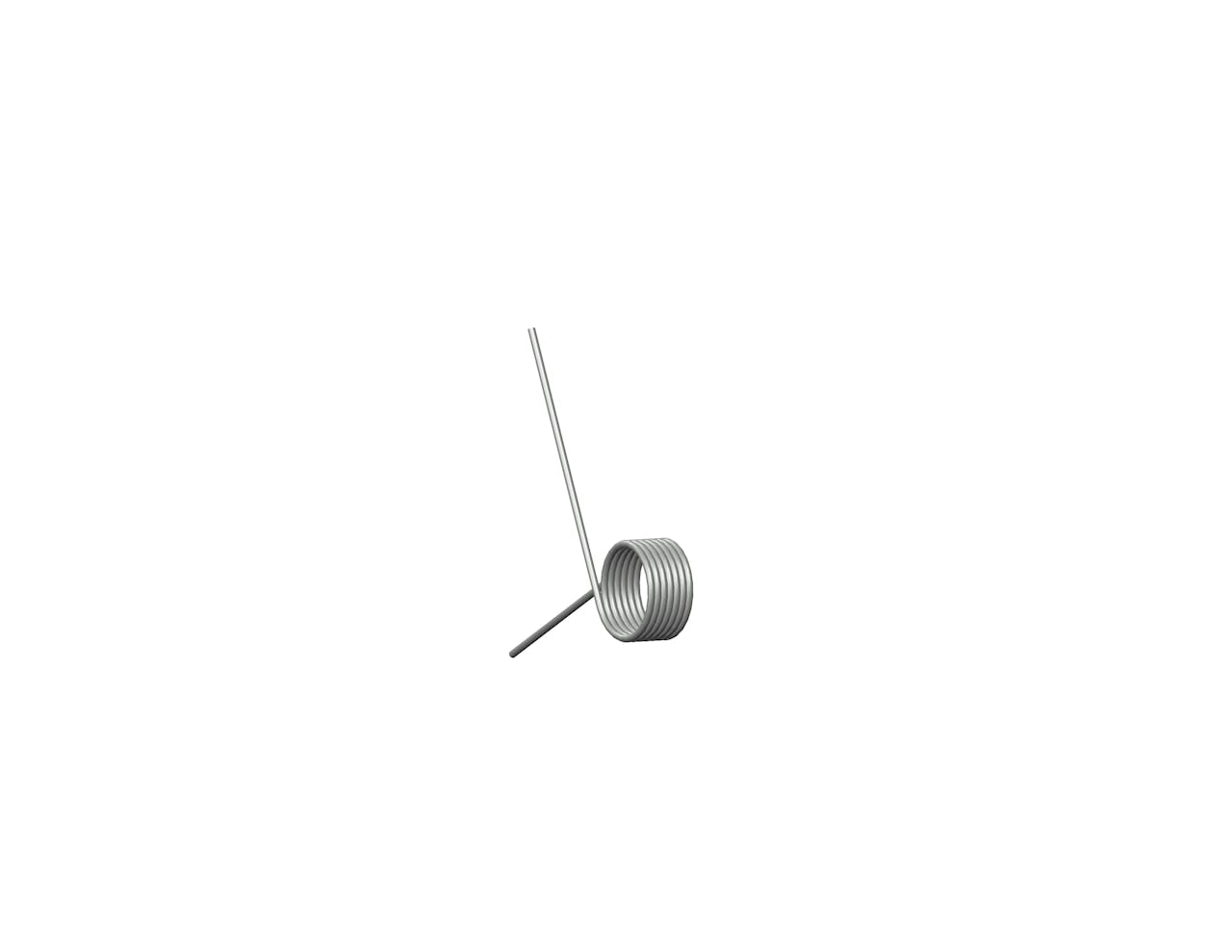

TO-5075LCS - 270 Degree, 0.0016 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Music Wire with 6.75 total coils and 1 Inch legs. This spring features an O.D. of 0.341 Inch, an I.D. of 0.291 Inch, and a spring rate of 0.0016 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.21 in
Brand Century Spring
Display Name TO-5075L
Finish None
Inside Diameter 0.291 in
Leg Length 1 in
Mandrel Diameter 0.23 in
Material Music Wire
Max Deflection (deg) (suggested) 230
Max Torque (suggested) 0.36 lbs/in
Measurement Units Standard
Outside Diameter 0.341 in
Rate 0.0016 lbf-in/deg
SKU TO-5075LCS
Total Coils 6.75
Wind Direction Left
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 5.33 mm
Brand Century Spring
Display Name TO-5075L
Finish None
Inside Diameter 7.39 mm
Leg Length 25.4 mm
Mandrel Diameter 5.84 mm
Material Music Wire
Max Deflection (deg) (suggested) 230
Max Torque (suggested) 0.06 N-mm
Measurement Units Standard
Outside Diameter 8.66 mm
Rate 0.18 N-mm/deg
SKU TO-5075LCS
Total Coils 6.75
Wind Direction Left
Wire Diameter 0.64 mm
