Century Spring

TO-5072LSCS - 270 Degree, 0.0019 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

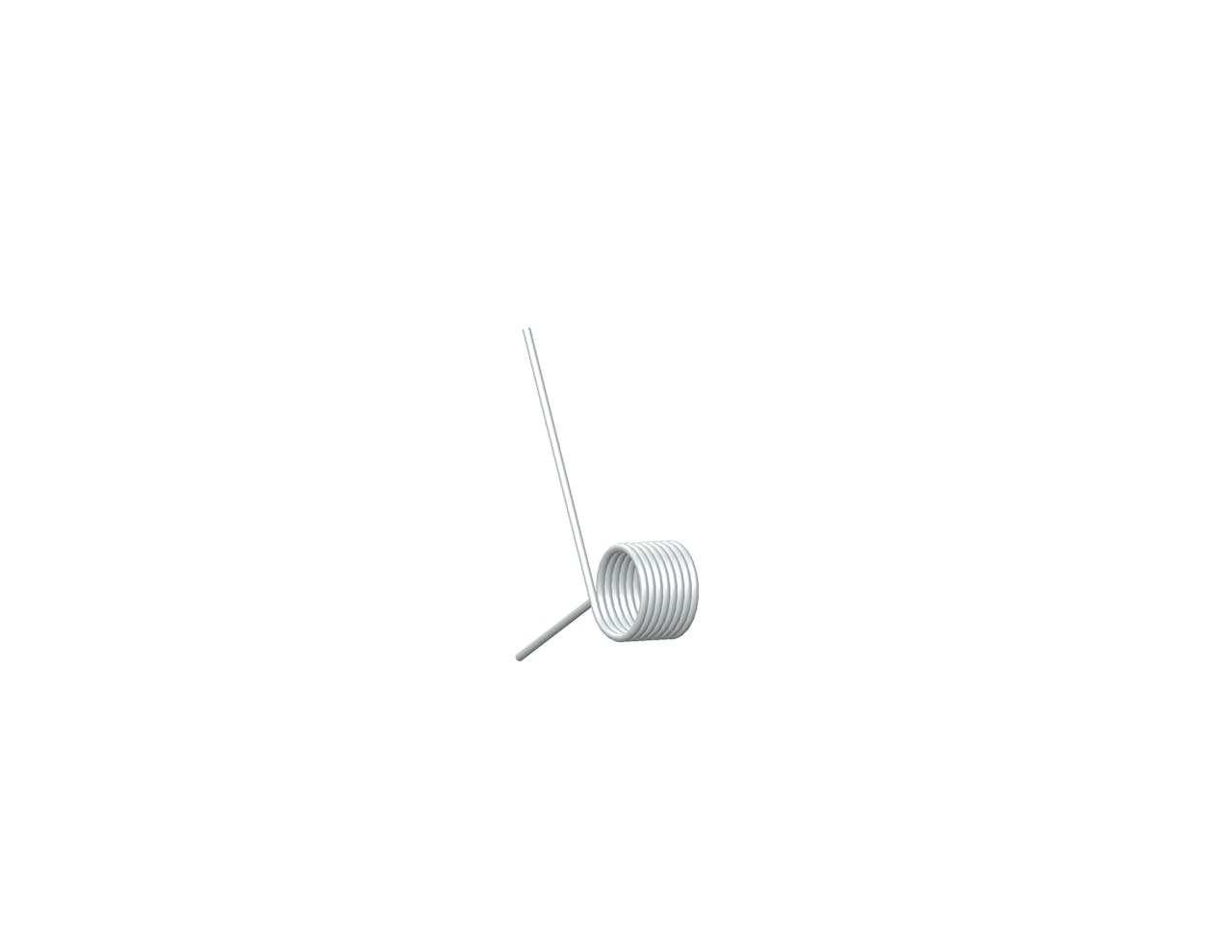

Torsion spring in 302/304 Stainless Steel with 7.75 total coils and 1 Inch legs. This spring features an O.D. of 0.329 Inch, an I.D. of 0.273 Inch, and a spring rate of 0.0019 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.27 in
Brand Century Spring
Display Name TO-5072LS
Finish None
Inside Diameter 0.273 in
Leg Length 1 in
Mandrel Diameter 0.21 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 227
Max Torque (suggested) 0.43 lbs/in
Measurement Units Standard
Outside Diameter 0.329 in
Rate 0.0019 lbf-in/deg
SKU TO-5072LSCS
Total Coils 7.75
Wind Direction Left
Wire Diameter 0.028 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 6.86 mm
Brand Century Spring
Display Name TO-5072LS
Finish None
Inside Diameter 6.93 mm
Leg Length 25.4 mm
Mandrel Diameter 5.33 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 227
Max Torque (suggested) 0.08 N-mm
Measurement Units Standard
Outside Diameter 8.36 mm
Rate 0.21 N-mm/deg
SKU TO-5072LSCS
Total Coils 7.75
Wind Direction Left
Wire Diameter 0.71 mm
