Century Spring

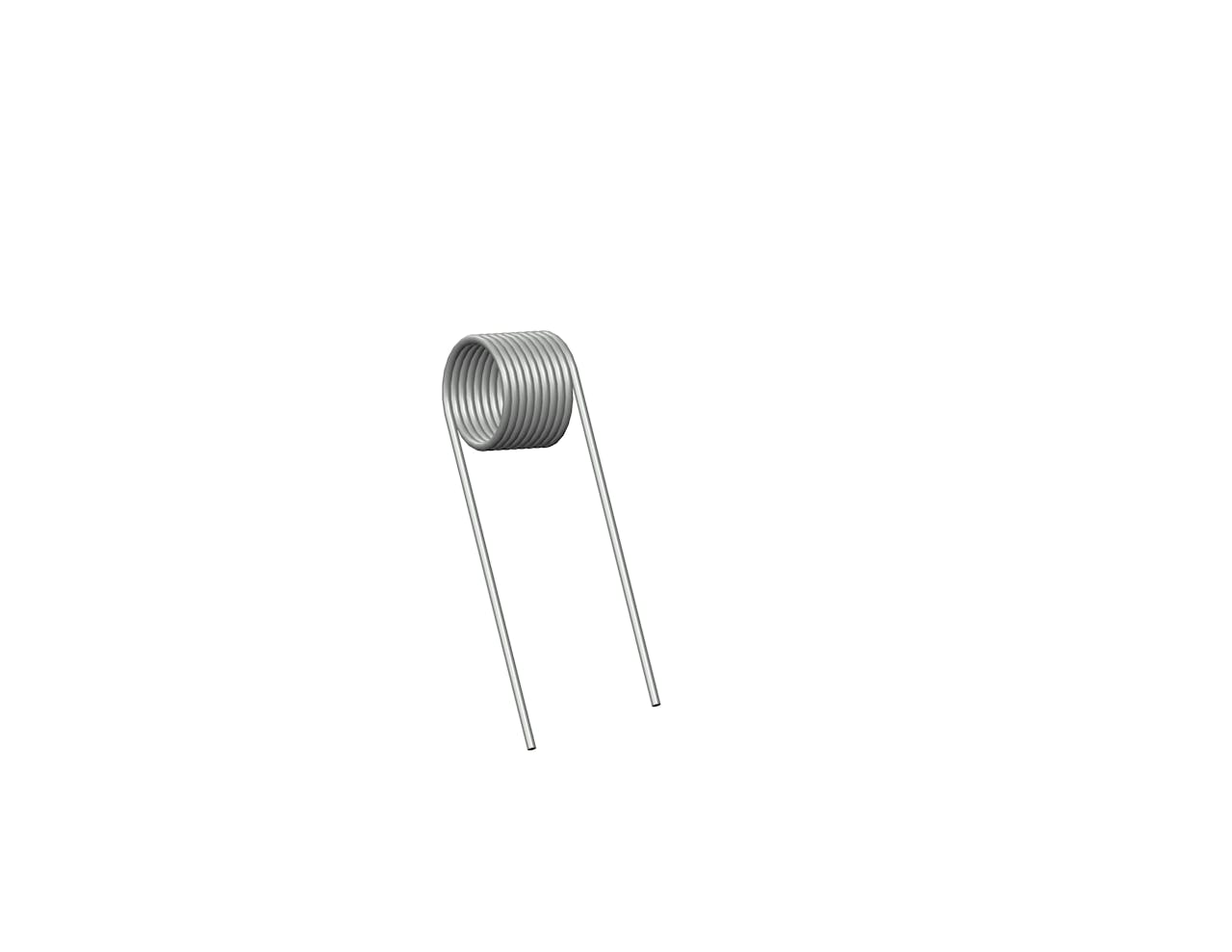

TO-5071RCS - 0 Degree, 0.0012 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Music Wire with 9.5 total coils and 1 Inch legs. This spring features an O.D. of 0.325 Inch, an I.D. of 0.275 Inch, and a spring rate of 0.0012 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 0 deg
Body Length 0.29 in
Brand Century Spring
Display Name TO-5071R
Finish None
Inside Diameter 0.275 in
Leg Length 1 in
Mandrel Diameter 0.21 in
Material Music Wire
Max Deflection (deg) (suggested) 305
Max Torque (suggested) 0.36 lbs/in
Measurement Units Standard
Outside Diameter 0.325 in
Rate 0.0012 lbf-in/deg
SKU TO-5071RCS
Total Coils 9.5
Wind Direction Right
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Angle Between Legs 0 deg
Body Length 7.37 mm
Brand Century Spring
Display Name TO-5071R
Finish None
Inside Diameter 6.99 mm
Leg Length 25.4 mm
Mandrel Diameter 5.33 mm
Material Music Wire
Max Deflection (deg) (suggested) 305
Max Torque (suggested) 0.06 N-mm
Measurement Units Standard
Outside Diameter 8.26 mm
Rate 0.14 N-mm/deg
SKU TO-5071RCS
Total Coils 9.5
Wind Direction Right
Wire Diameter 0.64 mm
