TO-5069RSCS - 270 Degree, 0.0037 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

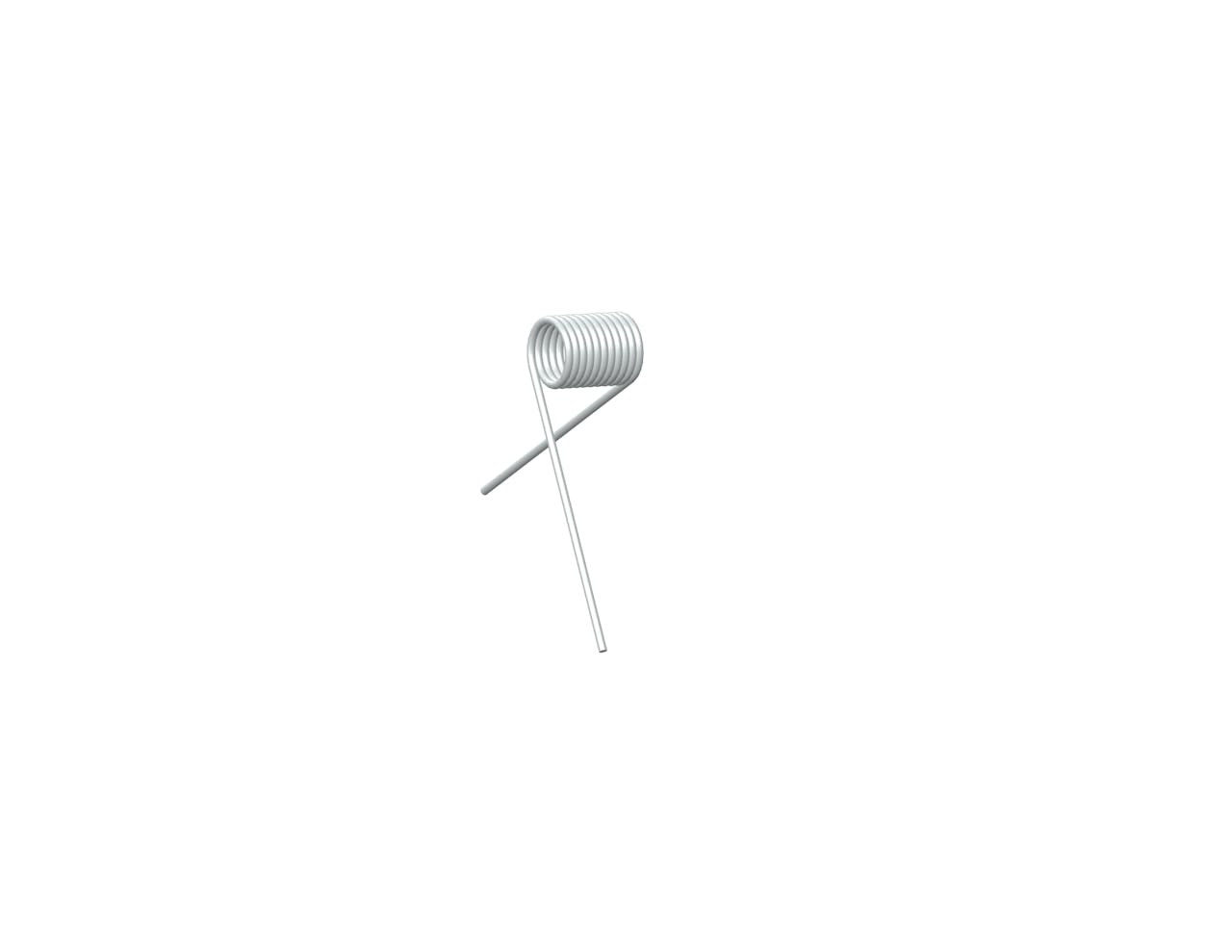

Torsion spring in 302/304 Stainless Steel with 10.75 total coils and 1.3 Inch legs. This spring features an O.D. of 0.312 Inch, an I.D. of 0.242 Inch, and a spring rate of 0.0037 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.45 in
Brand Century Spring
Display Name TO-5069RS
Finish None
Inside Diameter 0.242 in
Leg Length 1.3 in
Mandrel Diameter 0.2 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 211
Max Torque (suggested) 0.78 lbs/in
Measurement Units Standard
Outside Diameter 0.312 in
Rate 0.0037 lbf-in/deg
SKU TO-5069RSCS
Total Coils 10.75
Wind Direction Right
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 11.43 mm
Brand Century Spring
Display Name TO-5069RS
Finish None
Inside Diameter 6.15 mm
Leg Length 33.02 mm
Mandrel Diameter 5.08 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 211
Max Torque (suggested) 0.14 N-mm
Measurement Units Standard
Outside Diameter 7.92 mm
Rate 0.42 N-mm/deg
SKU TO-5069RSCS
Total Coils 10.75
Wind Direction Right
Wire Diameter 0.89 mm
