TO-5069LSCS - 270 Degree, 0.0037 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

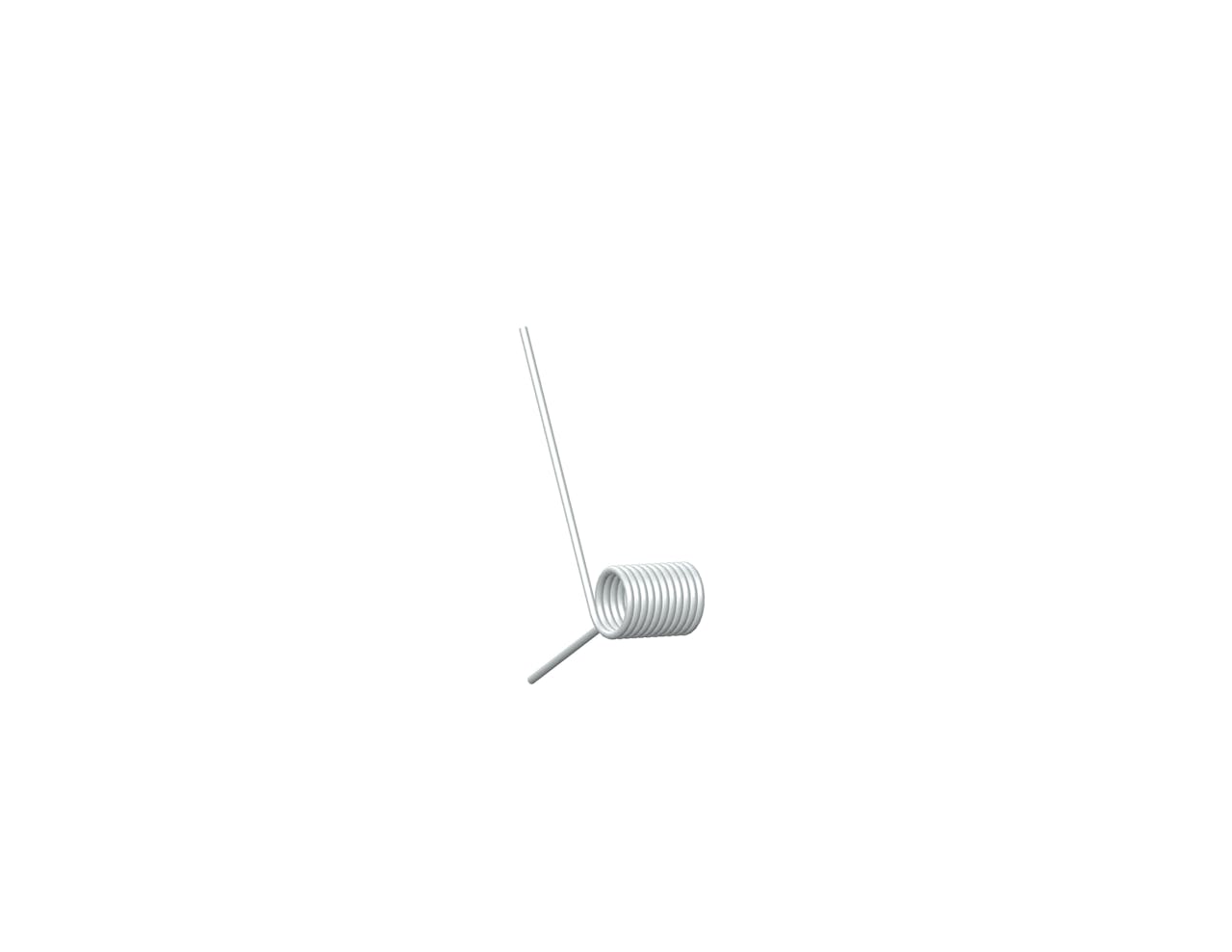

Torsion spring in 302/304 Stainless Steel with 10.75 total coils and 1.3 Inch legs. This spring features an O.D. of 0.312 Inch, an I.D. of 0.242 Inch, and a spring rate of 0.0037 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 0.45 in |
| Brand | Century Spring |
| Display Name | TO-5069LS |
| Finish | None |
| Inside Diameter | 0.242 in |
| Leg Length | 1.3 in |
| Mandrel Diameter | 0.2 in |
| Material | 302/304 Stainless Steel |
| Max Deflection (deg) (suggested) | 211 |
| Max Torque (suggested) | 0.78 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.312 in |
| Rate | 0.0037 lbf-in/deg |
| SKU | TO-5069LSCS |
| Total Coils | 10.75 |
| Wind Direction | Left |
| Wire Diameter | 0.035 in |
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 11.43 mm |
| Brand | Century Spring |
| Display Name | TO-5069LS |
| Finish | None |
| Inside Diameter | 6.15 mm |
| Leg Length | 33.02 mm |
| Mandrel Diameter | 5.08 mm |
| Material | 302/304 Stainless Steel |
| Max Deflection (deg) (suggested) | 211 |
| Max Torque (suggested) | 0.14 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 7.92 mm |
| Rate | 0.42 N-mm/deg |
| SKU | TO-5069LSCS |
| Total Coils | 10.75 |
| Wind Direction | Left |
| Wire Diameter | 0.89 mm |
