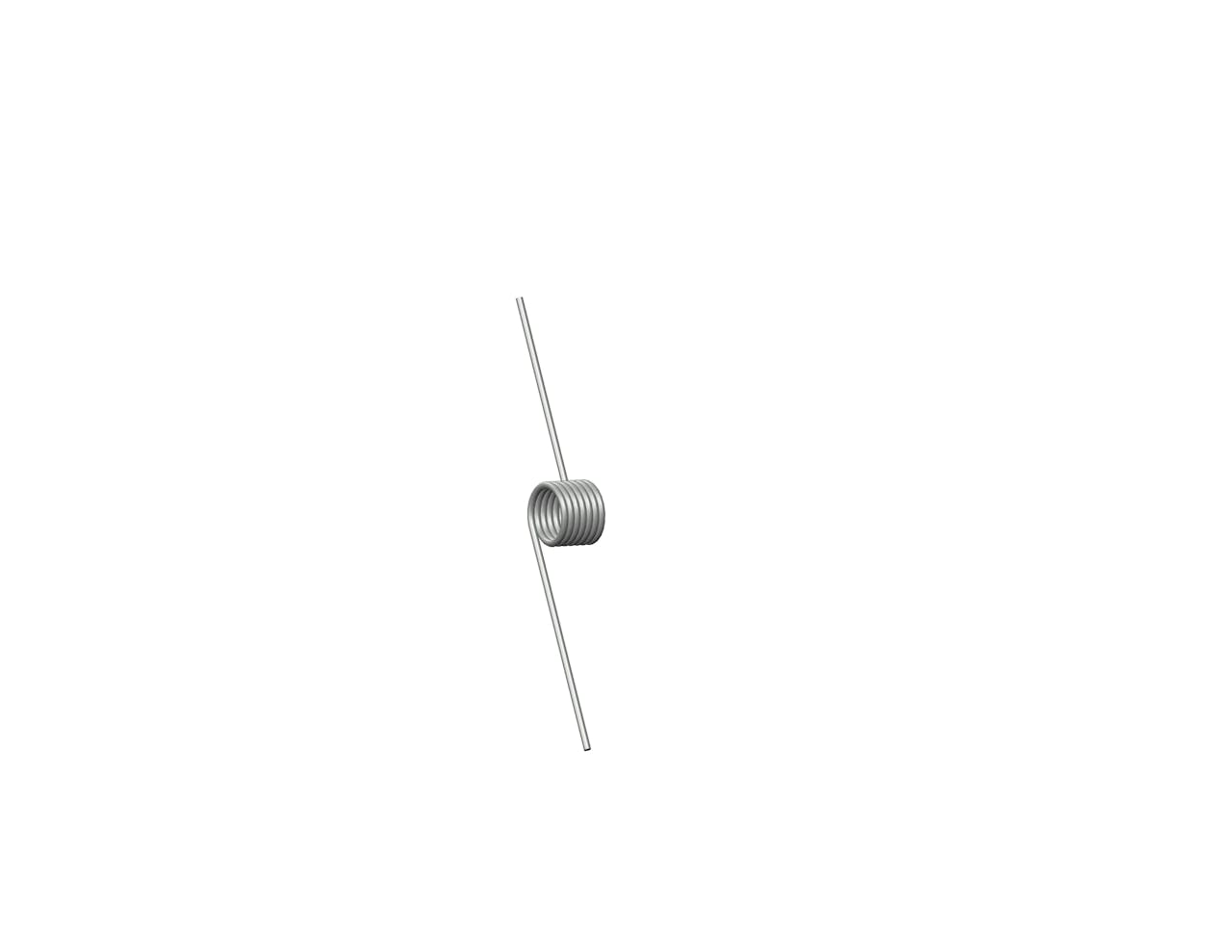

TO-5061RCS - 180 Degree, 0.0038 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory:
Estimated Lead Time

Torsion spring in Music Wire with 7 total coils and 1 Inch legs. This spring features an O.D. of 0.273 Inch, an I.D. of 0.213 Inch, and a spring rate of 0.0038 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 180 deg
Body Length 0.26 in
Brand Century Spring
Display Name TO-5061R
Finish None
Inside Diameter 0.213 in
Leg Length 1 in
Mandrel Diameter 0.17 in
Material Music Wire
Max Deflection (deg) (suggested) 158
Max Torque (suggested) 0.6 lbs-in
Measurement Units Standard
Outside Diameter 0.273 in
Rate 0.0038 lbf-in/deg
SKU TO-5061RCS
Total Coils 7
Wind Direction Right
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Angle Between Legs 180 deg
Body Length 6.6 mm
Brand Century Spring
Display Name TO-5061R
Finish None
Inside Diameter 5.41 mm
Leg Length 25.4 mm
Mandrel Diameter 4.32 mm
Material Music Wire
Max Deflection (deg) (suggested) 158
Max Torque (suggested) 0.11 N-mm
Measurement Units Standard
Outside Diameter 6.93 mm
Rate 0.43 N-mm/deg
SKU TO-5061RCS
Total Coils 7
Wind Direction Right
Wire Diameter 0.76 mm
