Century Spring

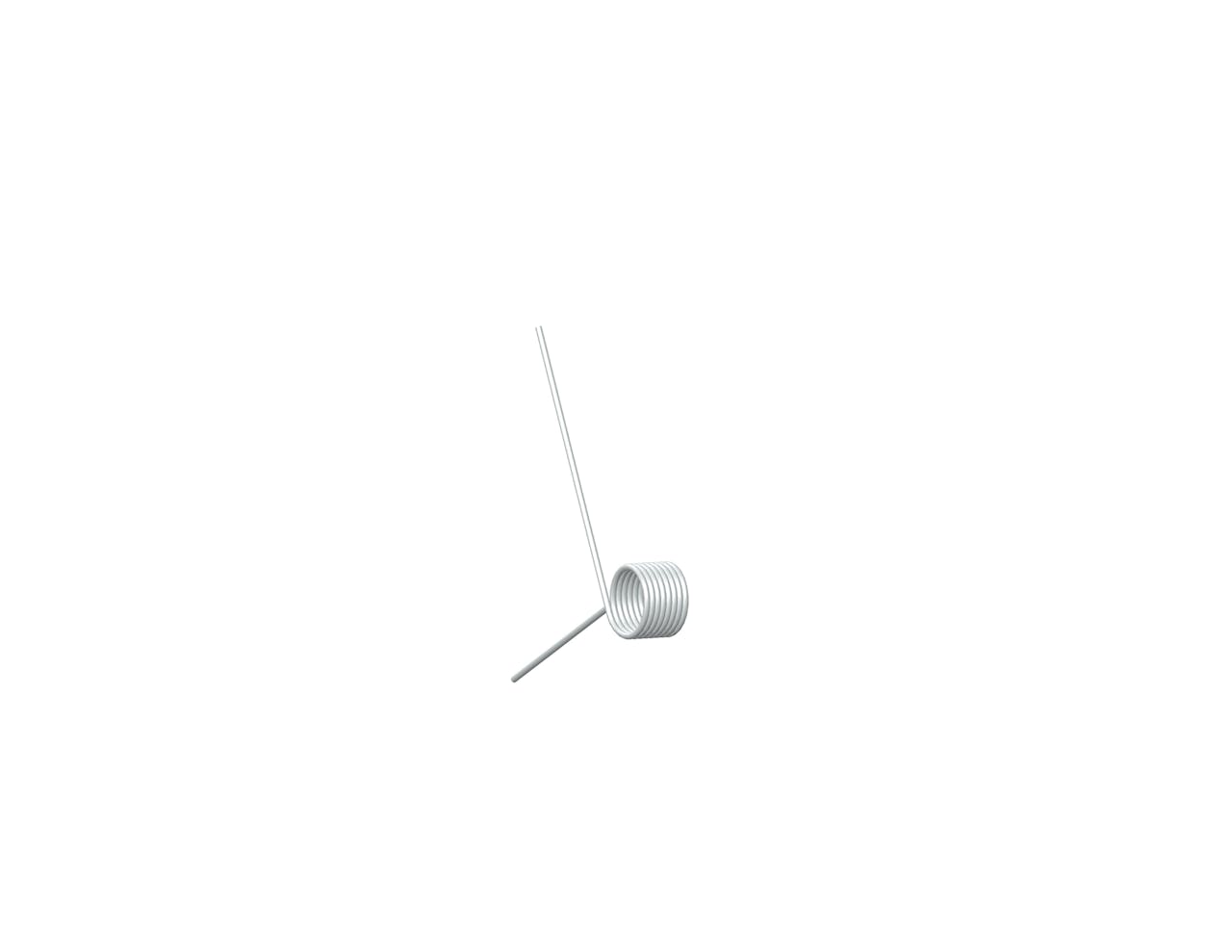

TO-5045LSCS - 270 Degree, 0.0009 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 7.75 total coils and 1 Inch legs. This spring features an O.D. of 0.246 Inch, an I.D. of 0.204 Inch, and a spring rate of 0.0009 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.2 in
Brand Century Spring
Display Name TO-5045LS
Finish None
Inside Diameter 0.204 in
Leg Length 1 in
Mandrel Diameter 0.16 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 218
Max Torque (suggested) 0.19 lbs/in
Measurement Units Standard
Outside Diameter 0.246 in
Rate 0.0009 lbf-in/deg
SKU TO-5045LSCS
Total Coils 7.75
Wind Direction Left
Wire Diameter 0.021 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 5.08 mm
Brand Century Spring
Display Name TO-5045LS
Finish None
Inside Diameter 5.18 mm
Leg Length 25.4 mm
Mandrel Diameter 4.06 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 218
Max Torque (suggested) 0.03 N-mm
Measurement Units Standard
Outside Diameter 6.25 mm
Rate 0.1 N-mm/deg
SKU TO-5045LSCS
Total Coils 7.75
Wind Direction Left
Wire Diameter 0.53 mm
