TO-5030RCS - 270 Degree, 0.0004 Inch-Pounds per Degree Rate Music Wire Torsion Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

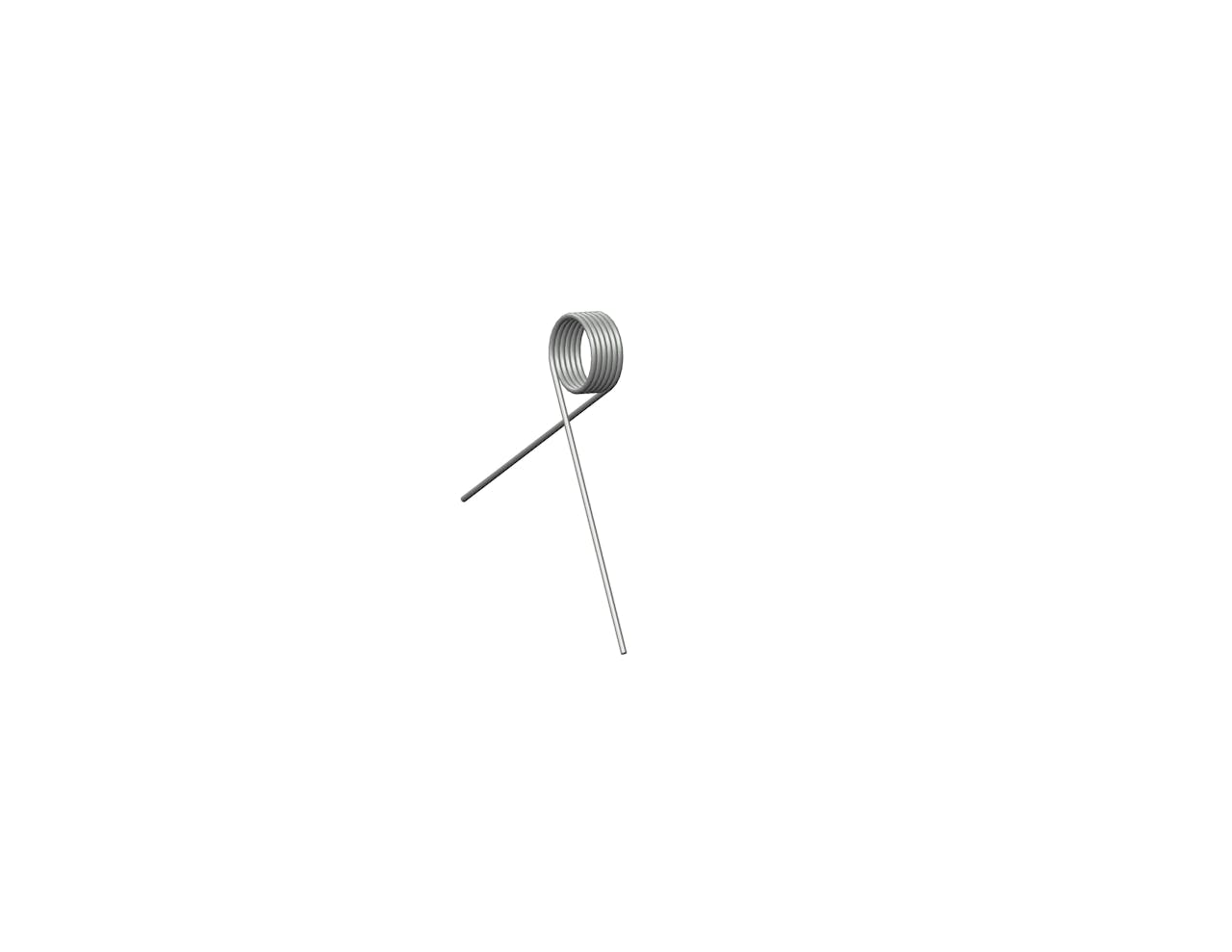

Torsion spring in Music Wire with 5.75 total coils and 0.75 Inch legs. This spring features an O.D. of 0.2 Inch, an I.D. of 0.17 Inch, and a spring rate of 0.0004 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 0.11 in |
| Brand | Century Spring |
| Display Name | TO-5030R |
| Finish | None |
| Inside Diameter | 0.17 in |
| Leg Length | 0.75 in |
| Mandrel Diameter | 0.13 in |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 215 |
| Max Torque (suggested) | 0.079 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.2 in |
| Rate | 0.0004 lbf-in/deg |
| SKU | TO-5030RCS |
| Total Coils | 5.75 |
| Wind Direction | Right |
| Wire Diameter | 0.015 in |
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 2.79 mm |
| Brand | Century Spring |
| Display Name | TO-5030R |
| Finish | None |
| Inside Diameter | 4.32 mm |
| Leg Length | 19.05 mm |
| Mandrel Diameter | 3.3 mm |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 215 |
| Max Torque (suggested) | 0.01 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 5.08 mm |
| Rate | 0.05 N-mm/deg |
| SKU | TO-5030RCS |
| Total Coils | 5.75 |
| Wind Direction | Right |
| Wire Diameter | 0.38 mm |
