TO-5024LCS - 225 Degree, 0.0005 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory:
Estimated Lead Time

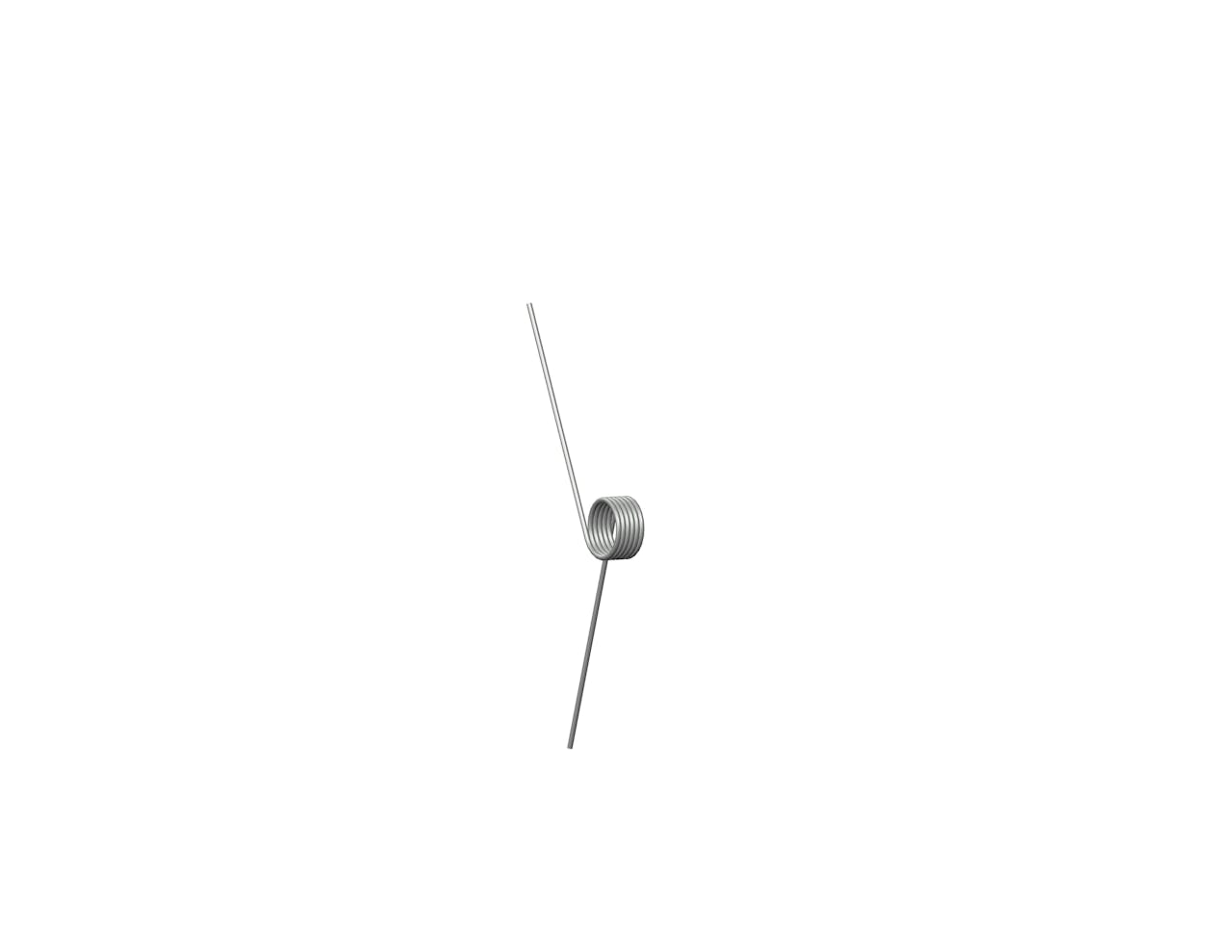

Torsion spring in Music Wire with 5.875 total coils and 0.75 Inch legs. This spring features an O.D. of 0.188 Inch, an I.D. of 0.156 Inch, and a spring rate of 0.0005 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 225 deg
Body Length 0.12 in
Brand Century Spring
Display Name TO-5024L
Finish None
Inside Diameter 0.156 in
Leg Length 0.75 in
Mandrel Diameter 0.12 in
Material Music Wire
Max Deflection (deg) (suggested) 188
Max Torque (suggested) 0.099 lbs-in
Measurement Units Standard
Outside Diameter 0.188 in
Rate 0.0005 lbf-in/deg
SKU TO-5024LCS
Total Coils 5.875
Wind Direction Left
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Angle Between Legs 225 deg
Body Length 3.05 mm
Brand Century Spring
Display Name TO-5024L
Finish None
Inside Diameter 3.96 mm
Leg Length 19.05 mm
Mandrel Diameter 3.05 mm
Material Music Wire
Max Deflection (deg) (suggested) 188
Max Torque (suggested) 0.02 N-mm
Measurement Units Standard
Outside Diameter 4.78 mm
Rate 0.06 N-mm/deg
SKU TO-5024LCS
Total Coils 5.88
Wind Direction Left
Wire Diameter 0.41 mm
