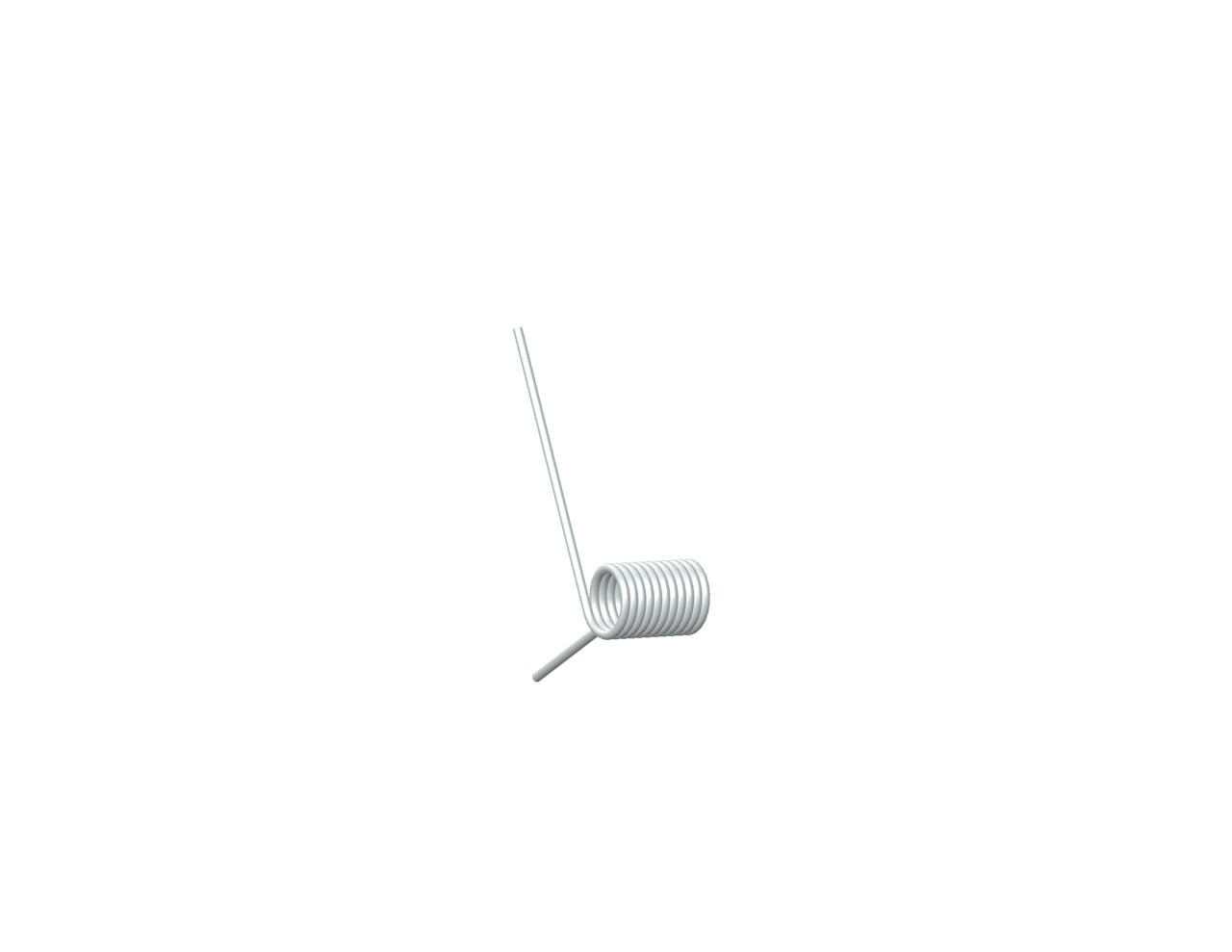

TO-5023LSCS - 270 Degree, 0.0011 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory:
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 10.75 total coils and 0.75 Inch legs. This spring features an O.D. of 0.187 Inch, an I.D. of 0.141 Inch, and a spring rate of 0.0011 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.3 in
Brand Century Spring
Display Name TO-5023LS
Finish None
Inside Diameter 0.141 in
Leg Length 0.75 in
Mandrel Diameter 0.11 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 210
Max Torque (suggested) 0.24 lbs/in
Measurement Units Standard
Outside Diameter 0.187 in
Rate 0.0011 lbf-in/deg
SKU TO-5023LSCS
Total Coils 10.75
Wind Direction Left
Wire Diameter 0.023 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 7.62 mm
Brand Century Spring
Display Name TO-5023LS
Finish None
Inside Diameter 3.58 mm
Leg Length 19.05 mm
Mandrel Diameter 2.79 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 210
Max Torque (suggested) 0.04 N-mm
Measurement Units Standard
Outside Diameter 4.75 mm
Rate 0.12 N-mm/deg
SKU TO-5023LSCS
Total Coils 10.75
Wind Direction Left
Wire Diameter 0.58 mm
