TO-5018RCS - 90 Degree, 0.0017 Inch-Pounds per Degree Rate Music Wire Torsion Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

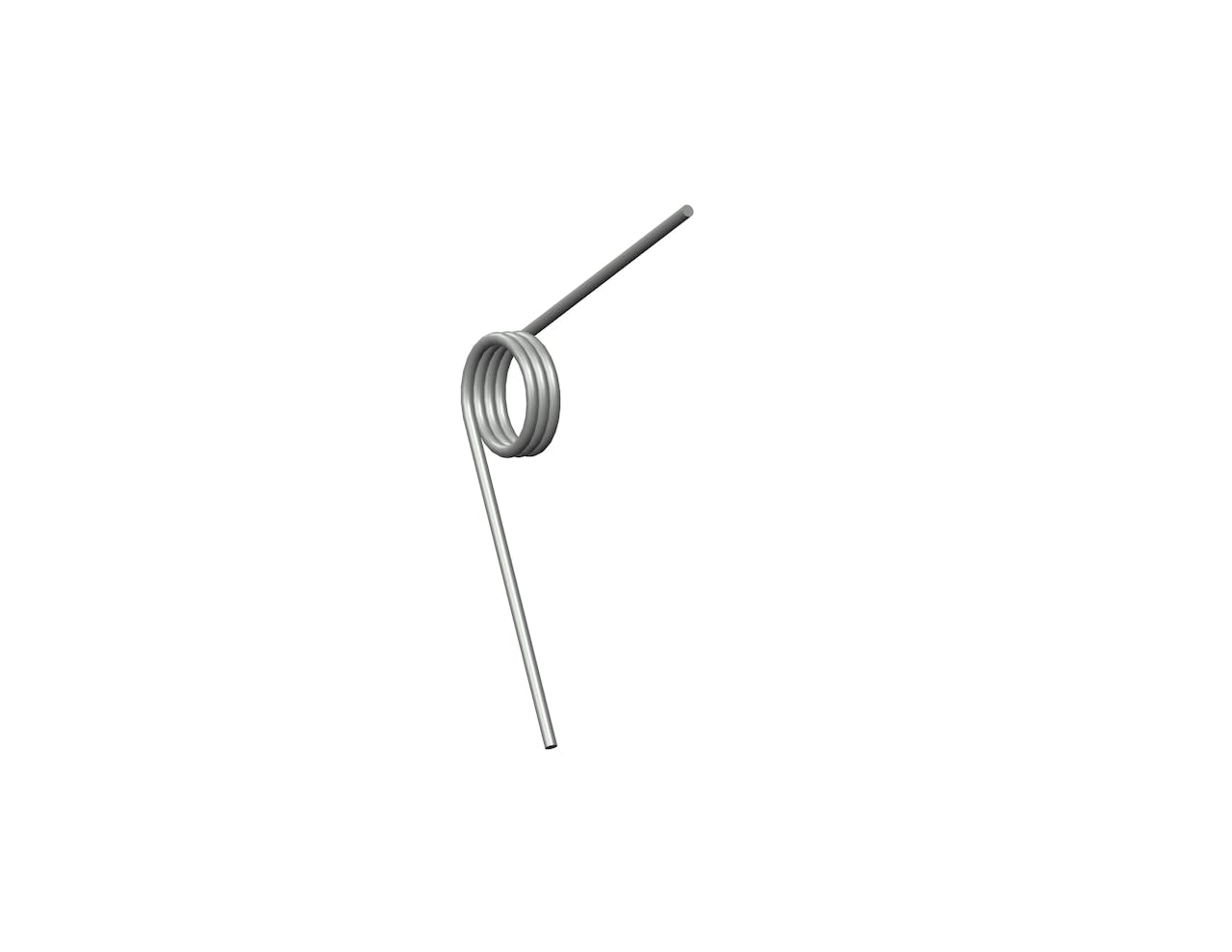

Torsion spring in Music Wire with 3.25 total coils and 0.5 Inch legs. This spring features an O.D. of 0.178 Inch, an I.D. of 0.142 Inch, and a spring rate of 0.0017 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 90 deg |
| Body Length | 0.08 in |
| Brand | Century Spring |
| Display Name | TO-5018R |
| Finish | None |
| Inside Diameter | 0.142 in |
| Leg Length | 0.5 in |
| Mandrel Diameter | 0.11 in |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 83 |
| Max Torque (suggested) | 0.14 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.178 in |
| Rate | 0.0017 lbf-in/deg |
| SKU | TO-5018RCS |
| Total Coils | 3.25 |
| Wind Direction | Right |
| Wire Diameter | 0.018 in |
| Label | Value |
|---|---|
| Angle Between Legs | 90 deg |
| Body Length | 2.03 mm |
| Brand | Century Spring |
| Display Name | TO-5018R |
| Finish | None |
| Inside Diameter | 3.61 mm |
| Leg Length | 12.7 mm |
| Mandrel Diameter | 2.79 mm |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 83 |
| Max Torque (suggested) | 0.02 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 4.52 mm |
| Rate | 0.19 N-mm/deg |
| SKU | TO-5018RCS |
| Total Coils | 3.25 |
| Wind Direction | Right |
| Wire Diameter | 0.46 mm |
