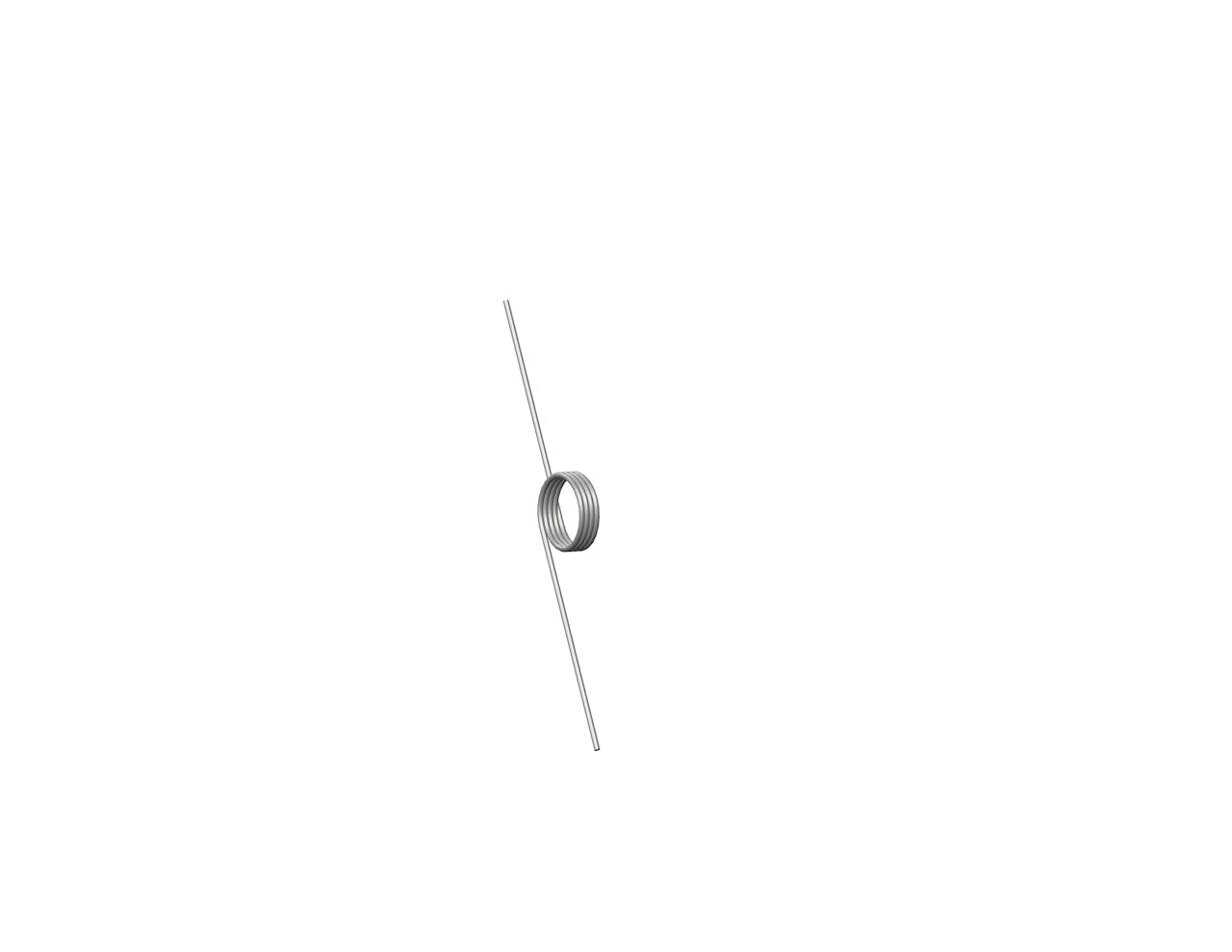

TO-5013RCS - 180 Degree, 0.0003 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Music Wire with 4 total coils and 0.5 Inch legs. This spring features an O.D. of 0.167 Inch, an I.D. of 0.143 Inch, and a spring rate of 0.0003 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 180 deg
Body Length 0.07 in
Brand Century Spring
Display Name TO-5013R
Finish None
Inside Diameter 0.143 in
Leg Length 0.5 in
Mandrel Diameter 0.11 in
Material Music Wire
Max Deflection (deg) (suggested) 175
Max Torque (suggested) 0.049 lbs/in
Measurement Units Standard
Outside Diameter 0.167 in
Rate 0.0003 lbf-in/deg
SKU TO-5013RCS
Total Coils 4
Wind Direction Right
Wire Diameter 0.012 in
Specs (in metric)
Label Value
Angle Between Legs 180 deg
Body Length 1.78 mm
Brand Century Spring
Display Name TO-5013R
Finish None
Inside Diameter 3.63 mm
Leg Length 12.7 mm
Mandrel Diameter 2.79 mm
Material Music Wire
Max Deflection (deg) (suggested) 175
Max Torque (suggested) 0.01 N-mm
Measurement Units Standard
Outside Diameter 4.24 mm
Rate 0.03 N-mm/deg
SKU TO-5013RCS
Total Coils 4
Wind Direction Right
Wire Diameter 0.3 mm
