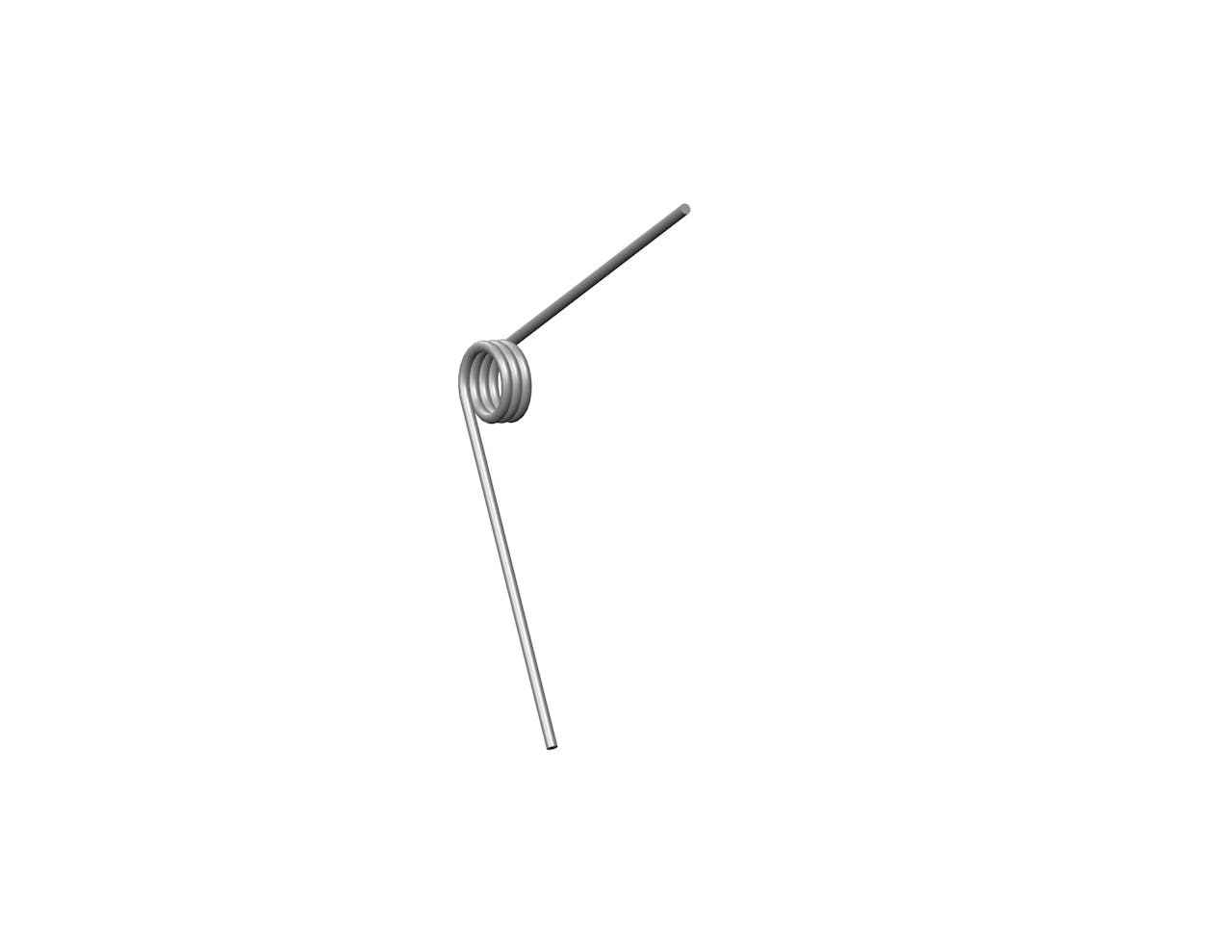

TO-5003RCS - 90 Degree, 0.0011 Inch-Pounds per Degree Rate Music Wire Torsion Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Torsion spring in Music Wire with 3.25 total coils and 0.5 Inch legs. This spring features an O.D. of 0.111 Inch, an I.D. of 0.081 Inch, and a spring rate of 0.0011 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 90 deg |
| Body Length | 0.07 in |
| Brand | Century Spring |
| Display Name | TO-5003R |
| Finish | None |
| Inside Diameter | 0.081 in |
| Leg Length | 0.5 in |
| Mandrel Diameter | 0.06 in |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 70 |
| Max Torque (suggested) | 0.078 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.111 in |
| Rate | 0.0011 lbf-in/deg |
| SKU | TO-5003RCS |
| Total Coils | 3.25 |
| Wind Direction | Right |
| Wire Diameter | 0.015 in |
| Label | Value |
|---|---|
| Angle Between Legs | 90 deg |
| Body Length | 1.78 mm |
| Brand | Century Spring |
| Display Name | TO-5003R |
| Finish | None |
| Inside Diameter | 2.06 mm |
| Leg Length | 12.7 mm |
| Mandrel Diameter | 1.52 mm |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 70 |
| Max Torque (suggested) | 0.01 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 2.82 mm |
| Rate | 0.12 N-mm/deg |
| SKU | TO-5003RCS |
| Total Coils | 3.25 |
| Wind Direction | Right |
| Wire Diameter | 0.38 mm |
