TO-5003LSCS - 90 Degree, 0.001 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory:
Estimated Lead Time

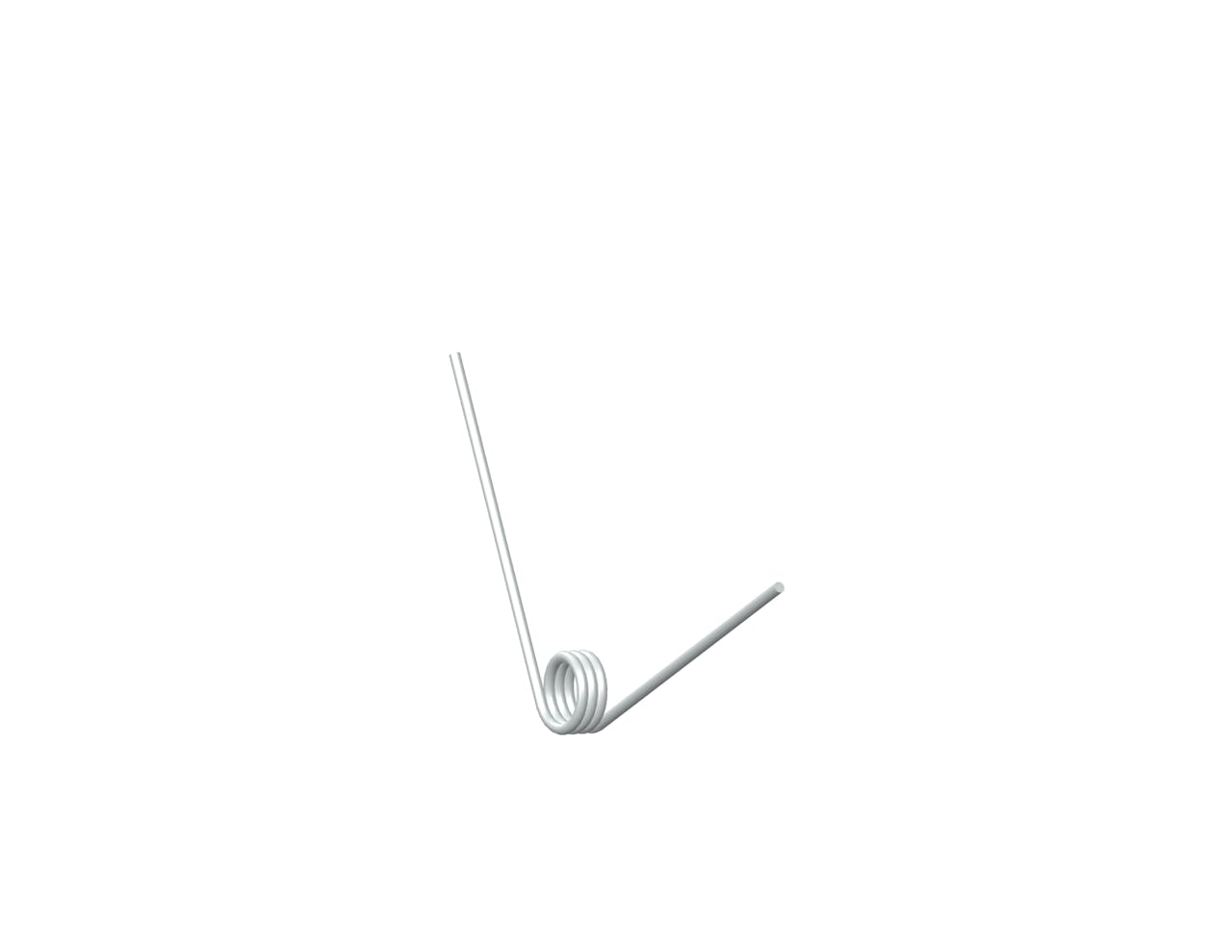

Torsion spring in 302/304 Stainless Steel with 3.25 total coils and 0.5 Inch legs. This spring features an O.D. of 0.111 Inch, an I.D. of 0.081 Inch, and a spring rate of 0.001 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 90 deg
Body Length 0.07 in
Brand Century Spring
Display Name TO-5003LS
Finish None
Inside Diameter 0.081 in
Leg Length 0.5 in
Mandrel Diameter 0.07 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 64
Max Torque (suggested) 0.067 lbs-in
Measurement Units Standard
Outside Diameter 0.111 in
Rate 0.001 lbf-in/deg
SKU TO-5003LSCS
Total Coils 3.25
Wind Direction Left
Wire Diameter 0.015 in
Specs (in metric)
Label Value
Angle Between Legs 90 deg
Body Length 1.78 mm
Brand Century Spring
Display Name TO-5003LS
Finish None
Inside Diameter 2.06 mm
Leg Length 12.7 mm
Mandrel Diameter 1.78 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 64
Max Torque (suggested) 0.01 N-mm
Measurement Units Standard
Outside Diameter 2.82 mm
Rate 0.11 N-mm/deg
SKU TO-5003LSCS
Total Coils 3.25
Wind Direction Left
Wire Diameter 0.38 mm
