TO-1100CS - 270 Degree, 0.0062 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory:
Estimated Lead Time

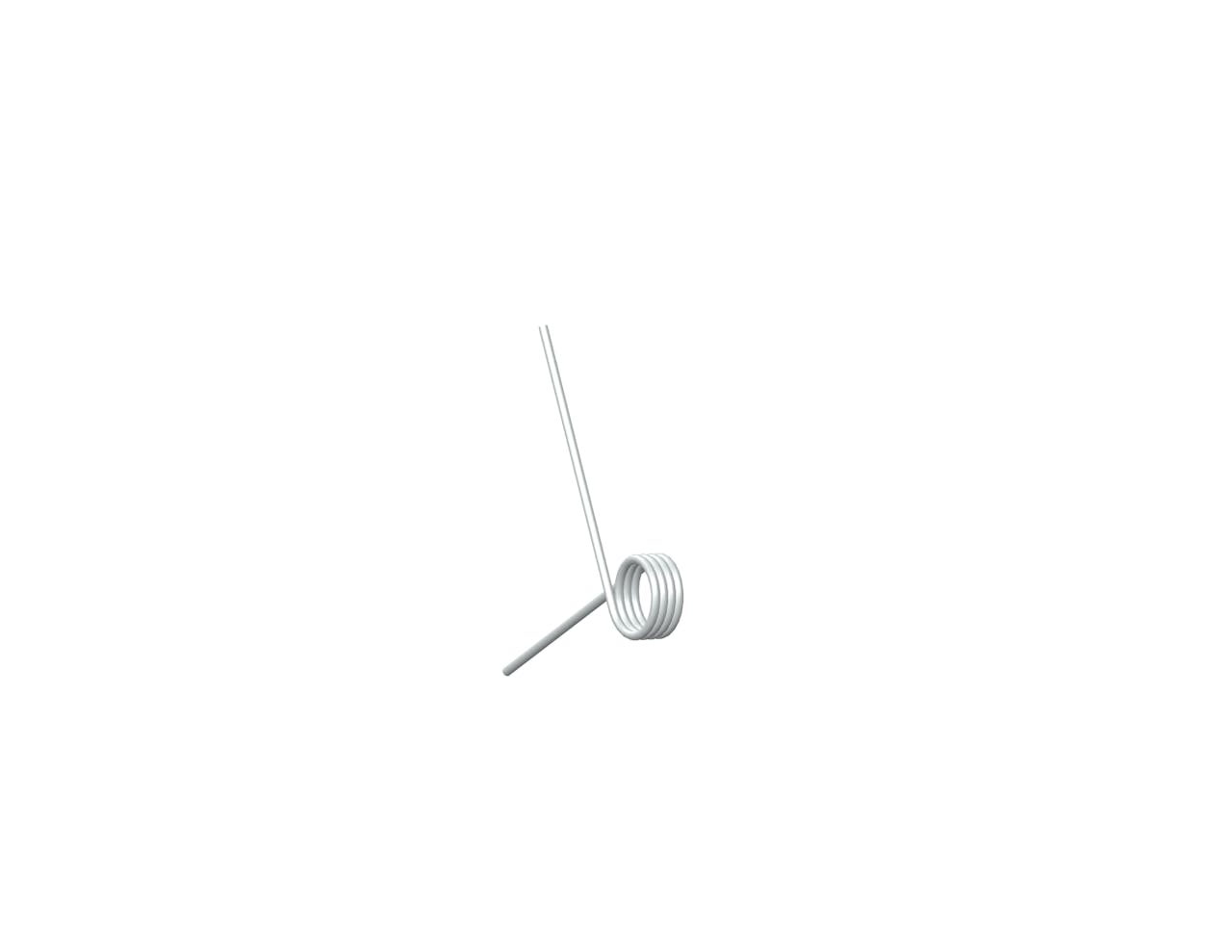

Torsion spring in 302/304 Stainless Steel with 3.75 total coils and 1 Inch legs. This spring features an O.D. of 0.281 Inch, an I.D. of 0.221 Inch, and a spring rate of 0.0062 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.16 in
Brand Century Spring
Display Name TO-1100
Finish None
Inside Diameter 0.221 in
Leg Length 1 in
Mandrel Diameter 0.18 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 83
Max Torque (suggested) 0.52 lbs-in
Measurement Units Standard
Outside Diameter 0.281 in
Rate 0.0062 lbf-in/deg
SKU TO-1100CS
Total Coils 3.75
Wind Direction Left
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 4.06 mm
Brand Century Spring
Display Name TO-1100
Finish None
Inside Diameter 5.61 mm
Leg Length 25.4 mm
Mandrel Diameter 4.57 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 83
Max Torque (suggested) 0.09 N-mm
Measurement Units Standard
Outside Diameter 7.14 mm
Rate 0.7 N-mm/deg
SKU TO-1100CS
Total Coils 3.75
Wind Direction Left
Wire Diameter 0.76 mm
