Century Spring

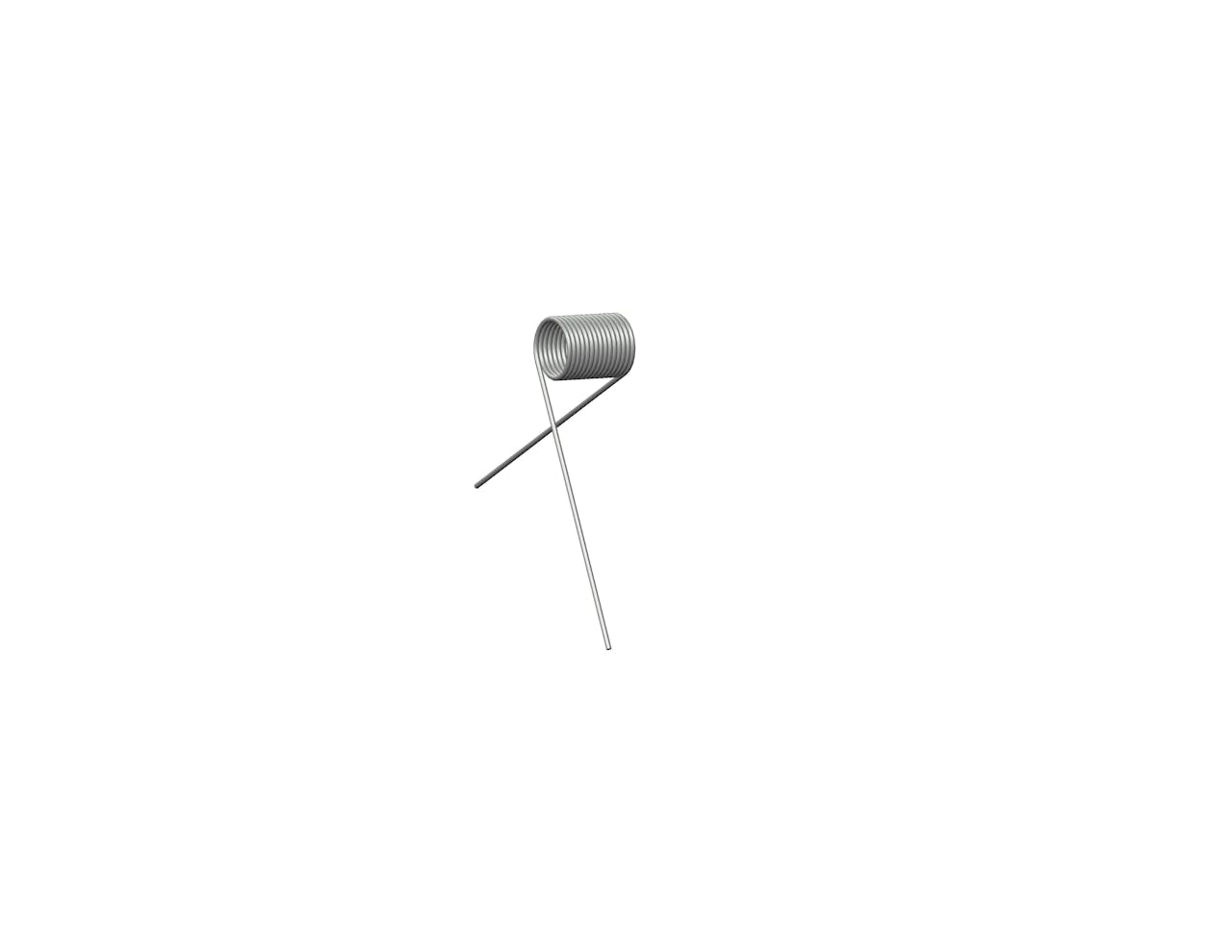

TO-1072CS - 270 Degree, 0.0011 Inch-Pounds per Degree Rate Spring Steel Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Spring Steel with 14.75 total coils and 1.7 Inch legs. This spring features an O.D. of 0.355 Inch, an I.D. of 0.297 Inch, and a spring rate of 0.0011 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.5 in
Brand Century Spring
Display Name TO-1072
Finish None
Inside Diameter 0.297 in
Leg Length 1.7 in
Mandrel Diameter 0.23 in
Material Spring Steel
Max Deflection (deg) (suggested) 395
Max Torque (suggested) 0.45 lbs/in
Measurement Units Standard
Outside Diameter 0.355 in
Rate 0.0011 lbf-in/deg
SKU TO-1072CS
Total Coils 14.75
Wind Direction Right
Wire Diameter 0.029 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 12.7 mm
Brand Century Spring
Display Name TO-1072
Finish None
Inside Diameter 7.54 mm
Leg Length 43.18 mm
Mandrel Diameter 5.84 mm
Material Spring Steel
Max Deflection (deg) (suggested) 395
Max Torque (suggested) 0.08 N-mm
Measurement Units Standard
Outside Diameter 9.02 mm
Rate 0.12 N-mm/deg
SKU TO-1072CS
Total Coils 14.75
Wind Direction Right
Wire Diameter 0.74 mm
