Century Spring

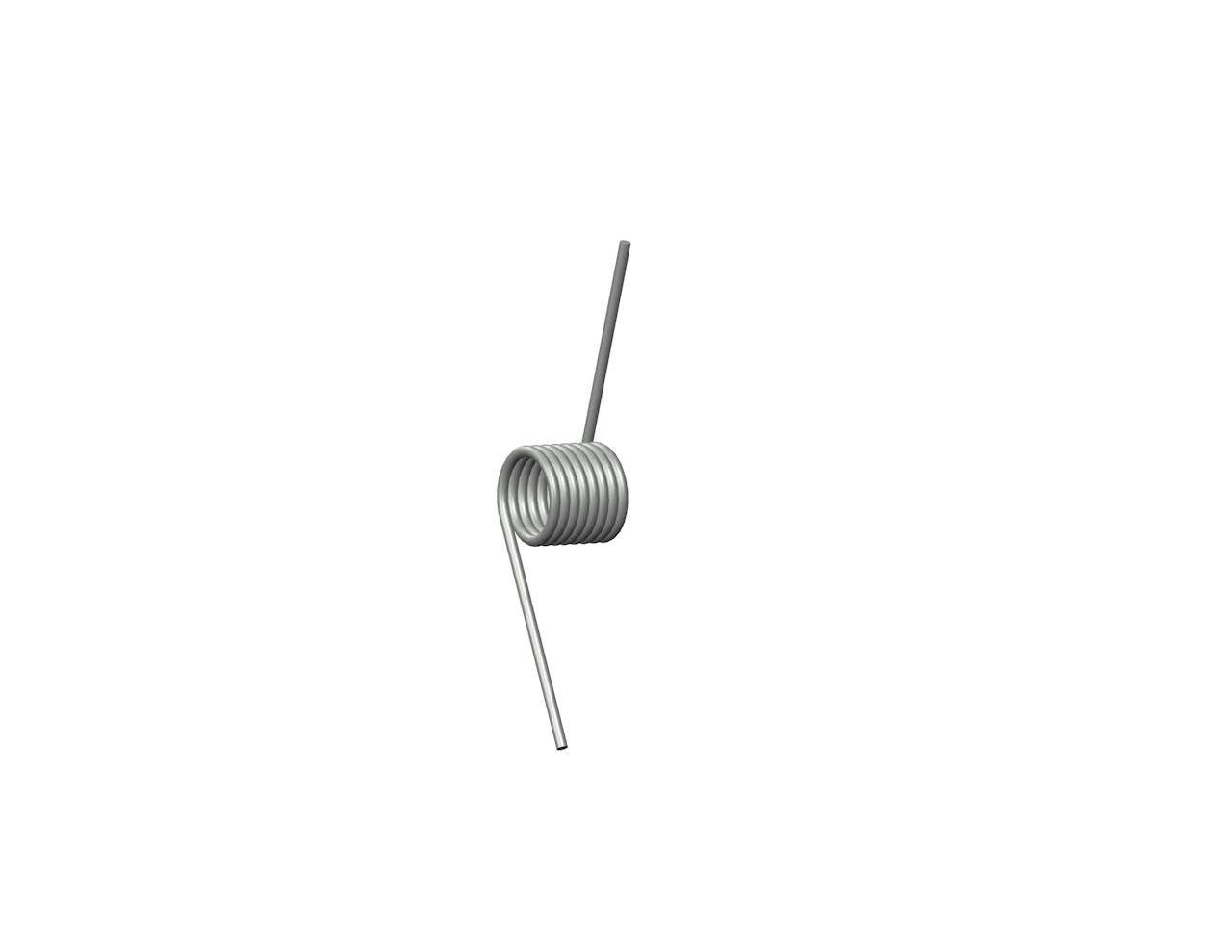

TO-1062CS - 135 Degree, 0.0007 Inch-Pounds per Degree Rate Spring Steel Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Spring Steel with 8.125 total coils and 0.4 Inch legs. This spring features an O.D. of 0.161 Inch, an I.D. of 0.125 Inch, and a spring rate of 0.0007 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 135 deg
Body Length 0.18 in
Brand Century Spring
Display Name TO-1062
Finish None
Inside Diameter 0.125 in
Leg Length 0.4 in
Mandrel Diameter 0.1 in
Material Spring Steel
Max Deflection (deg) (suggested) 157
Max Torque (suggested) 0.11 lbs/in
Measurement Units Standard
Outside Diameter 0.161 in
Rate 0.0007 lbf-in/deg
SKU TO-1062CS
Total Coils 8.125
Wind Direction Right
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Angle Between Legs 135 deg
Body Length 4.57 mm
Brand Century Spring
Display Name TO-1062
Finish None
Inside Diameter 3.18 mm
Leg Length 10.16 mm
Mandrel Diameter 2.54 mm
Material Spring Steel
Max Deflection (deg) (suggested) 157
Max Torque (suggested) 0.02 N-mm
Measurement Units Standard
Outside Diameter 4.09 mm
Rate 0.08 N-mm/deg
SKU TO-1062CS
Total Coils 8.13
Wind Direction Right
Wire Diameter 0.46 mm
