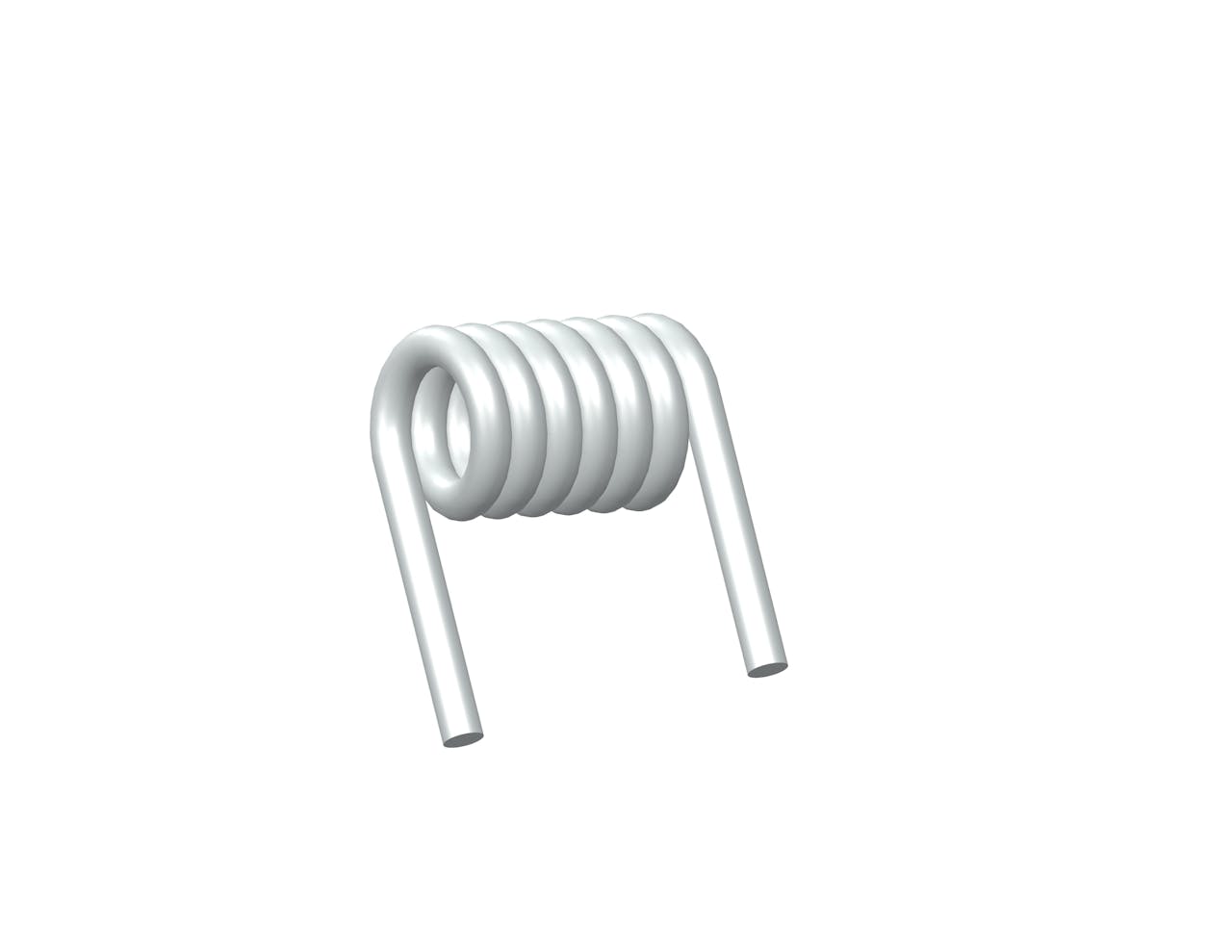

TO-1041CS - 0 Degree, 0.7287 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory:
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 6.5 total coils and 1 Inch legs. This spring features an O.D. of 0.64 Inch, an I.D. of 0.37 Inch, and a spring rate of 0.7287 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 0 deg
Body Length 1.11 in
Brand Century Spring
Display Name TO-1041
Finish None
Inside Diameter 0.37 in
Leg Length 1 in
Mandrel Diameter 0.31 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 42
Max Torque (suggested) 31 lbs-in
Measurement Units Standard
Outside Diameter 0.64 in
Rate 0.7287 lbf-in/deg
SKU TO-1041CS
Total Coils 6.5
Wind Direction Right
Wire Diameter 0.135 in
Specs (in metric)
Label Value
Angle Between Legs 0 deg
Body Length 28.19 mm
Brand Century Spring
Display Name TO-1041
Finish None
Inside Diameter 9.4 mm
Leg Length 25.4 mm
Mandrel Diameter 7.87 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 42
Max Torque (suggested) 5.43 N-mm
Measurement Units Standard
Outside Diameter 16.26 mm
Rate 82.33 N-mm/deg
SKU TO-1041CS
Total Coils 6.5
Wind Direction Right
Wire Diameter 3.43 mm
