TO-1034CS - 225 Degree, 0.0259 Inch-Pounds per Degree Rate Spring Steel Torsion Spring

Inventory:
Estimated Lead Time

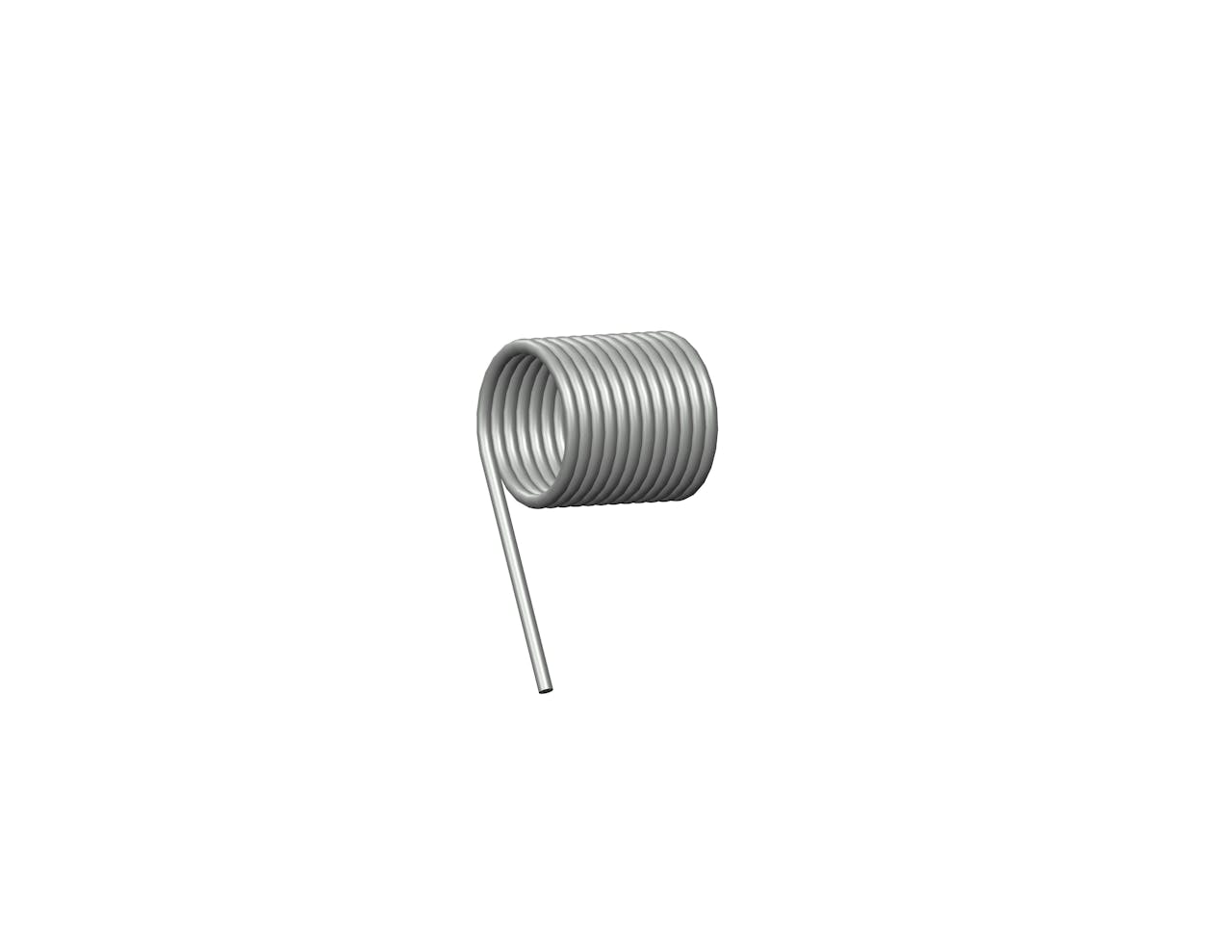

Torsion spring in Spring Steel with 11.875 total coils and 1.3 Inch legs. This spring features an O.D. of 0.868 Inch, an I.D. of 0.718 Inch, and a spring rate of 0.0259 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 225 deg
Body Length 1.06 in
Brand Century Spring
Display Name TO-1034
Finish None
Inside Diameter 0.718 in
Leg Length 1.3 in
Mandrel Diameter 0.58 in
Material Spring Steel
Max Deflection (deg) (suggested) 253
Max Torque (suggested) 6.6 lbs/in
Measurement Units Standard
Outside Diameter 0.868 in
Rate 0.0259 lbf-in/deg
SKU TO-1034CS
Total Coils 11.875
Wind Direction Right
Wire Diameter 0.075 in
Specs (in metric)
Label Value
Angle Between Legs 225 deg
Body Length 26.92 mm
Brand Century Spring
Display Name TO-1034
Finish None
Inside Diameter 18.24 mm
Leg Length 33.02 mm
Mandrel Diameter 14.73 mm
Material Spring Steel
Max Deflection (deg) (suggested) 253
Max Torque (suggested) 1.16 N-mm
Measurement Units Standard
Outside Diameter 22.05 mm
Rate 2.93 N-mm/deg
SKU TO-1034CS
Total Coils 11.88
Wind Direction Right
Wire Diameter 1.91 mm
