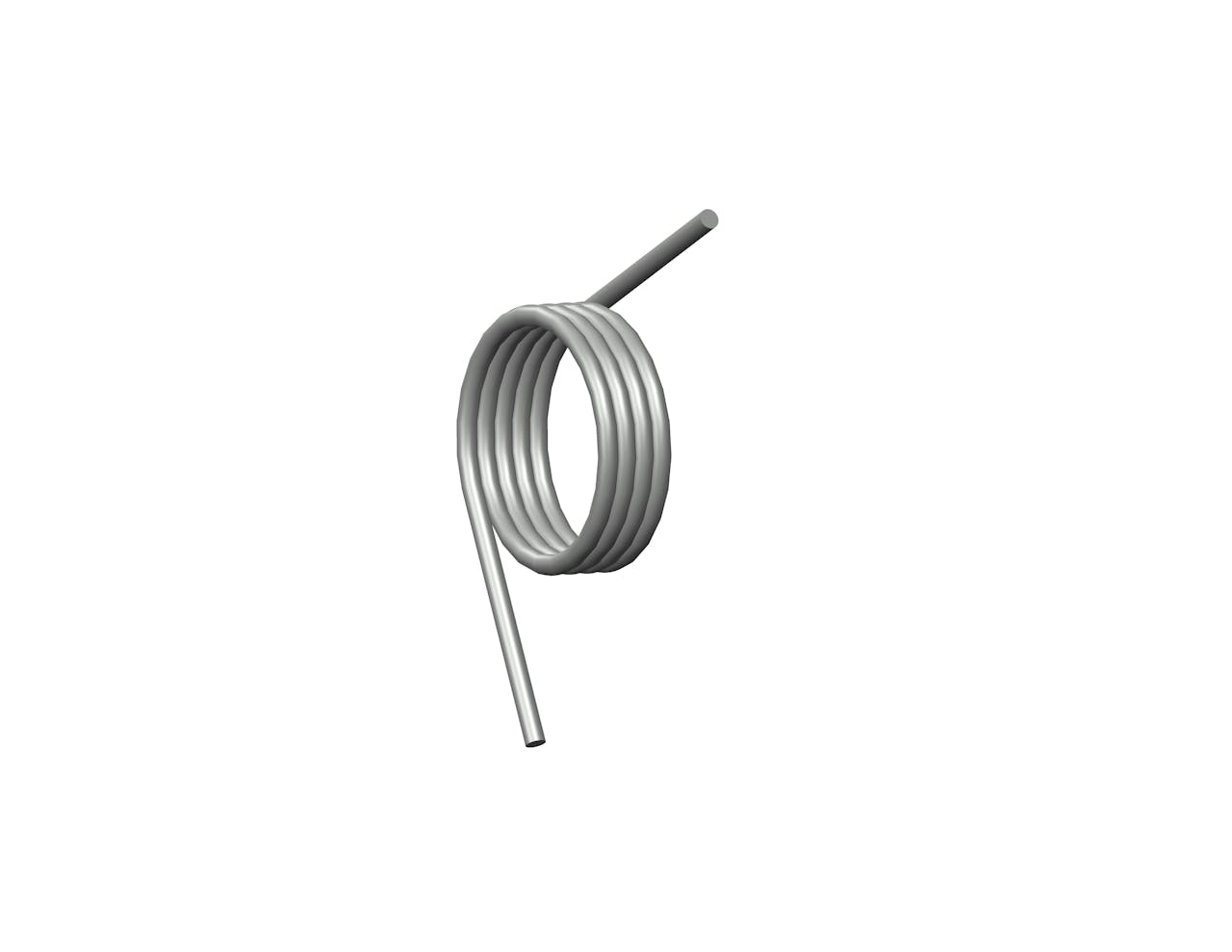

TO-1022CS - 90 Degree, 0.1093 Inch-Pounds per Degree Rate High Carbon Steel Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in High Carbon Steel with 4.25 total coils and 1.2 Inch legs. This spring features an O.D. of 1.18 Inch, an I.D. of 1 Inch, and a spring rate of 0.1093 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 90 deg
Body Length 0.52 in
Brand Century Spring
Display Name TO-1022
Finish Zinc
Inside Diameter 1 in
Leg Length 1.2 in
Mandrel Diameter 0.8 in
Material High Carbon Steel
Max Deflection (deg) (suggested) 100
Max Torque (suggested) 11 lbs/in
Measurement Units Standard
Outside Diameter 1.18 in
Rate 0.1093 lbf-in/deg
SKU TO-1022CS
Total Coils 4.25
Wind Direction Right
Wire Diameter 0.09 in
Specs (in metric)
Label Value
Angle Between Legs 90 deg
Body Length 13.21 mm
Brand Century Spring
Display Name TO-1022
Finish Zinc
Inside Diameter 25.4 mm
Leg Length 30.48 mm
Mandrel Diameter 20.32 mm
Material High Carbon Steel
Max Deflection (deg) (suggested) 100
Max Torque (suggested) 1.93 N-mm
Measurement Units Standard
Outside Diameter 29.97 mm
Rate 12.35 N-mm/deg
SKU TO-1022CS
Total Coils 4.25
Wind Direction Right
Wire Diameter 2.29 mm
