TO-1016CS - 90 Degree, 0.0106 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

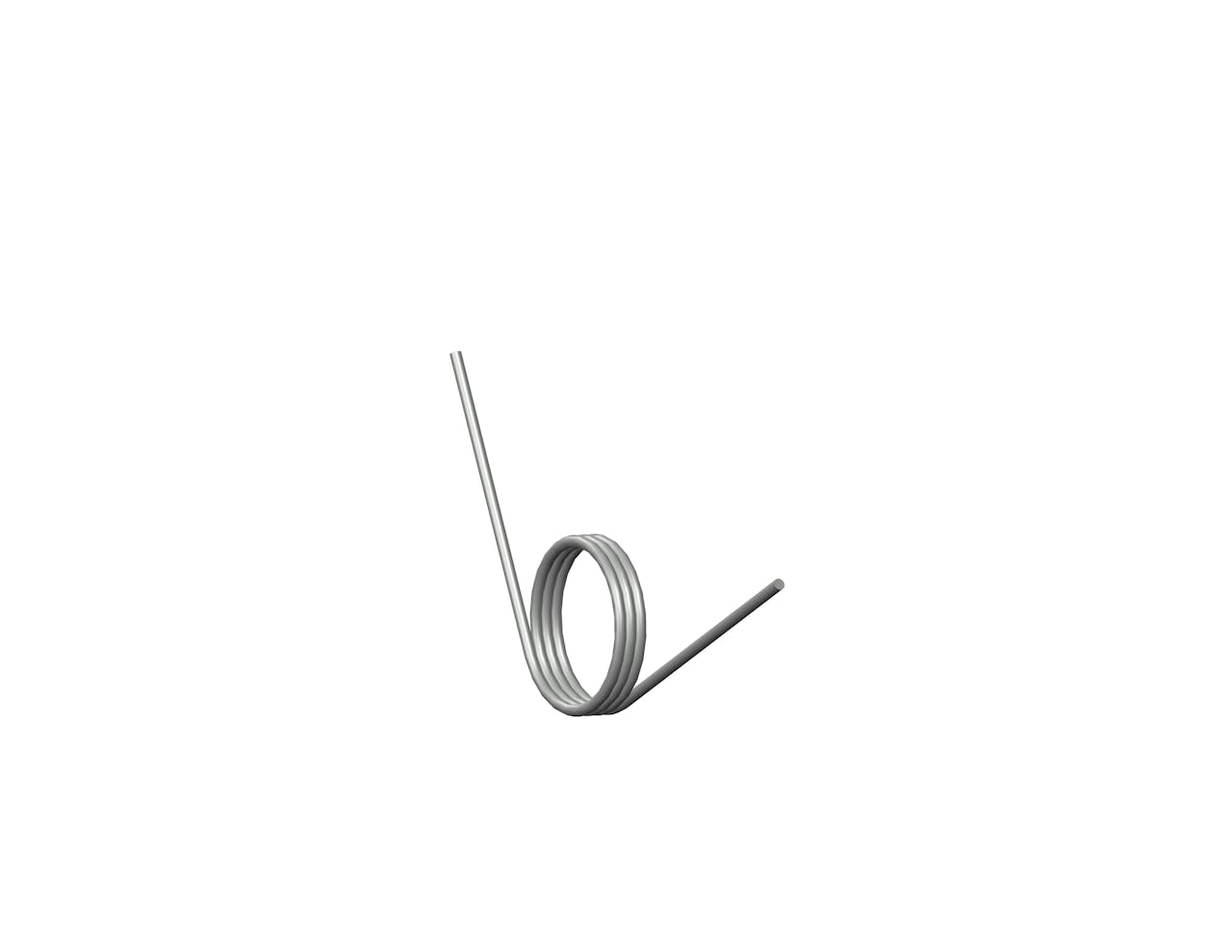

Torsion spring in Music Wire with 3.25 total coils and 1.1 Inch legs. This spring features an O.D. of 0.612 Inch, an I.D. of 0.532 Inch, and a spring rate of 0.0106 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 90 deg
Body Length 0.19 in
Brand Century Spring
Display Name TO-1016
Finish None
Inside Diameter 0.532 in
Leg Length 1.1 in
Mandrel Diameter 0.41 in
Material Music Wire
Max Deflection (deg) (suggested) 132
Max Torque (suggested) 1.4 lbs/in
Measurement Units Standard
Outside Diameter 0.612 in
Rate 0.0106 lbf-in/deg
SKU TO-1016CS
Total Coils 3.25
Wind Direction Left
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Angle Between Legs 90 deg
Body Length 4.83 mm
Brand Century Spring
Display Name TO-1016
Finish None
Inside Diameter 13.51 mm
Leg Length 27.94 mm
Mandrel Diameter 10.41 mm
Material Music Wire
Max Deflection (deg) (suggested) 132
Max Torque (suggested) 0.25 N-mm
Measurement Units Standard
Outside Diameter 15.54 mm
Rate 1.2 N-mm/deg
SKU TO-1016CS
Total Coils 3.25
Wind Direction Left
Wire Diameter 1.02 mm
