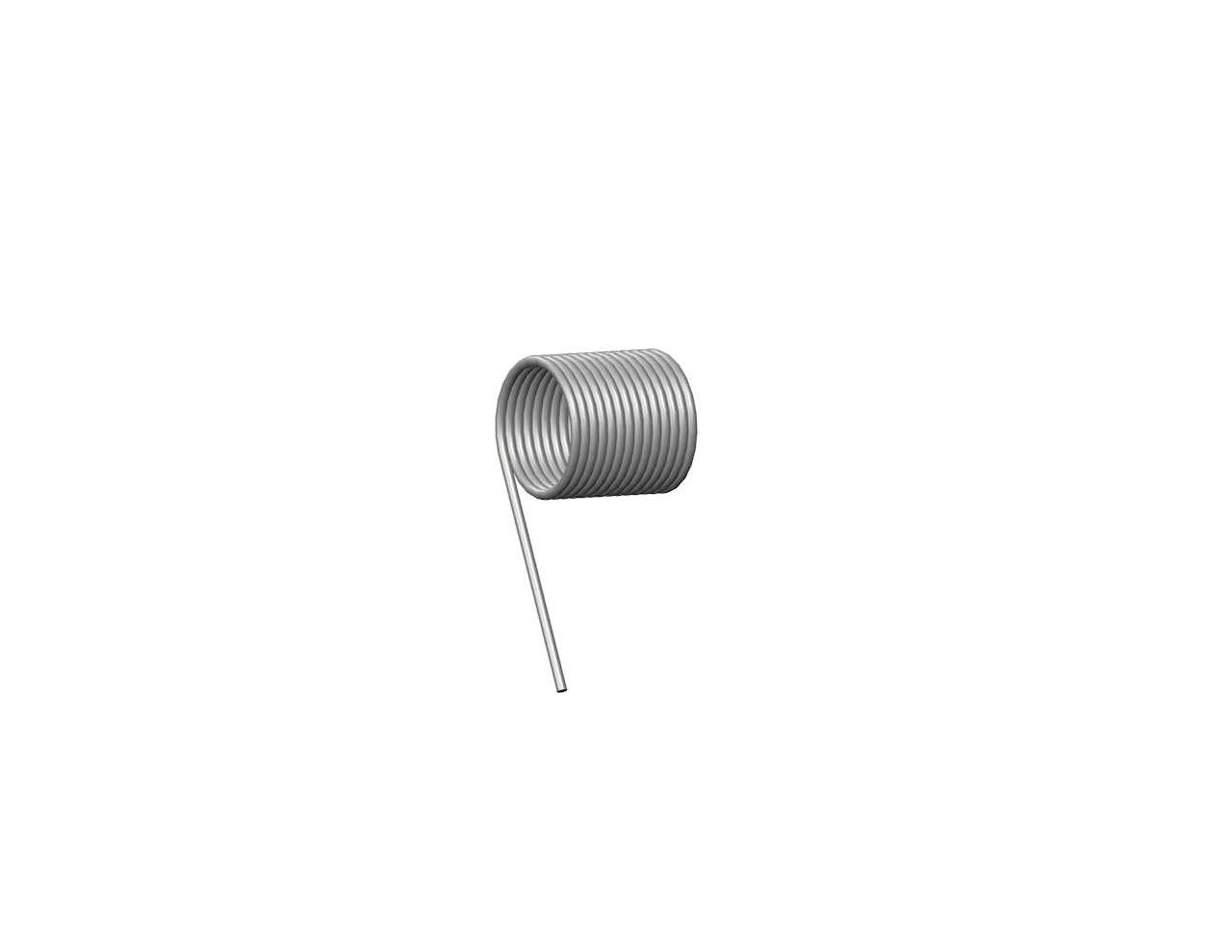

TO-1009CS - 225 Degree, 0.0022 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Music Wire with 13.875 total coils and 0.9 Inch legs. This spring features an O.D. of 0.511 Inch, an I.D. of 0.437 Inch, and a spring rate of 0.0022 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 225 deg
Body Length 0.61 in
Brand Century Spring
Display Name TO-1009
Finish None
Inside Diameter 0.437 in
Leg Length 0.9 in
Mandrel Diameter 0.34 in
Material Music Wire
Max Deflection (deg) (suggested) 501
Max Torque (suggested) 1.1 lbs/in
Measurement Units Standard
Outside Diameter 0.511 in
Rate 0.0022 lbf-in/deg
SKU TO-1009CS
Total Coils 13.875
Wind Direction Right
Wire Diameter 0.037 in
Specs (in metric)
Label Value
Angle Between Legs 225 deg
Body Length 15.49 mm
Brand Century Spring
Display Name TO-1009
Finish None
Inside Diameter 11.1 mm
Leg Length 22.86 mm
Mandrel Diameter 8.64 mm
Material Music Wire
Max Deflection (deg) (suggested) 501
Max Torque (suggested) 0.19 N-mm
Measurement Units Standard
Outside Diameter 12.98 mm
Rate 0.25 N-mm/deg
SKU TO-1009CS
Total Coils 13.88
Wind Direction Right
Wire Diameter 0.94 mm
