Century Spring

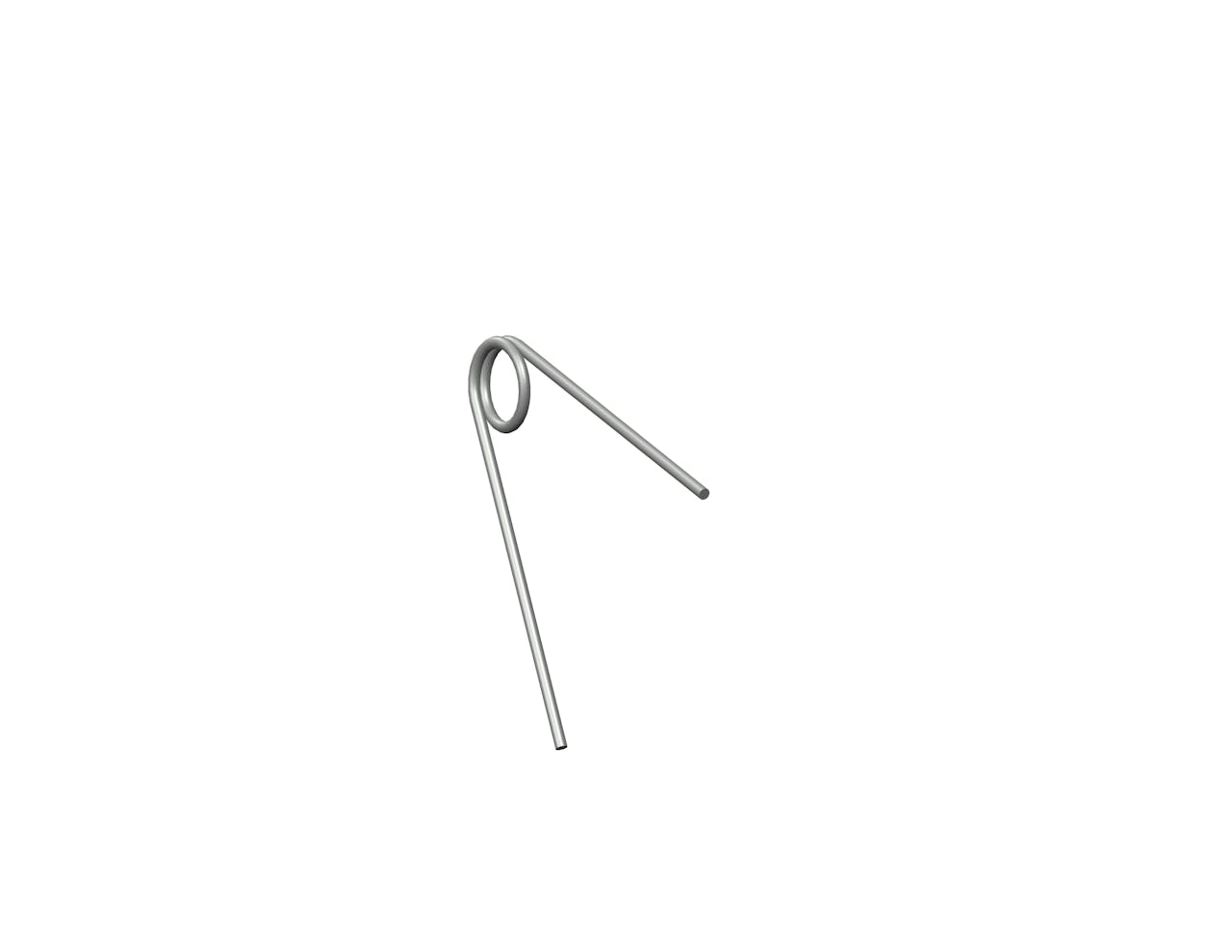

TO-1000CS - 45 Degree, 0.1897 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Music Wire with 1.375 total coils and 1.9 Inch legs. This spring features an O.D. of 0.499 Inch, an I.D. of 0.374 Inch, and a spring rate of 0.1897 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 45 deg
Body Length 0.16 in
Brand Century Spring
Display Name TO-1000
Finish None
Inside Diameter 0.374 in
Leg Length 1.9 in
Mandrel Diameter 0.3 in
Material Music Wire
Max Deflection (deg) (suggested) 24
Max Torque (suggested) 4.6 lbs/in
Measurement Units Standard
Outside Diameter 0.499 in
Rate 0.1897 lbf-in/deg
SKU TO-1000CS
Total Coils 1.375
Wind Direction Right
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Angle Between Legs 45 deg
Body Length 4.06 mm
Brand Century Spring
Display Name TO-1000
Finish None
Inside Diameter 9.5 mm
Leg Length 48.26 mm
Mandrel Diameter 7.62 mm
Material Music Wire
Max Deflection (deg) (suggested) 24
Max Torque (suggested) 0.81 N-mm
Measurement Units Standard
Outside Diameter 12.67 mm
Rate 21.43 N-mm/deg
SKU TO-1000CS
Total Coils 1.38
Wind Direction Right
Wire Diameter 1.59 mm
