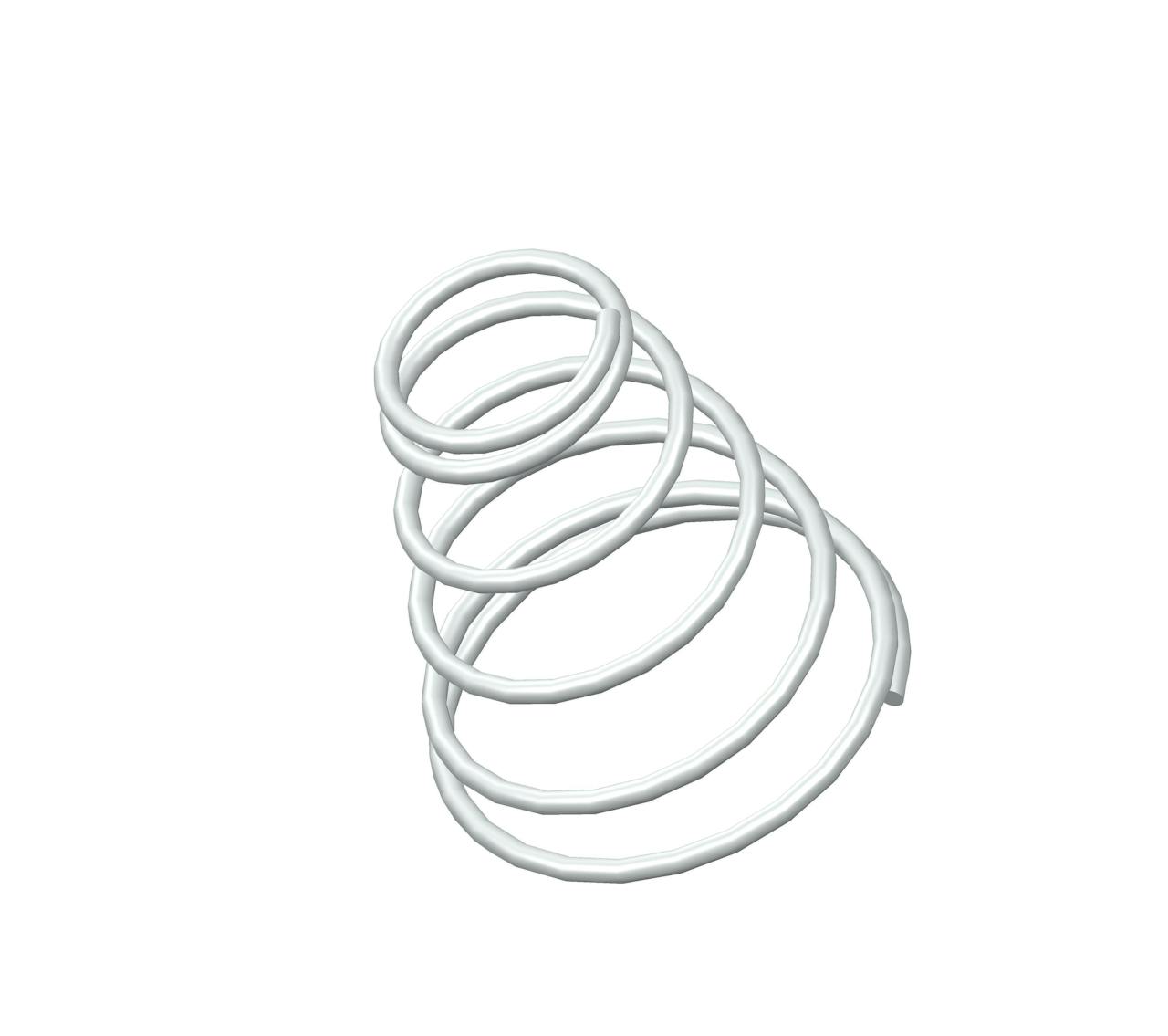

TA-7065SCS - 0.438 Inch-0.85 Inch O.D., 0.042 Inch Wire 302/304 Stainless Steel Constant Force Tapered Spring

Inventory:
Estimated Lead Time

Constant force tapered compression spring in 302/304 Stainless Steel with 1 Inch approximate free length. The OD of this spring tapers from 0.438 Inch to 0.85 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name TA-7065S
Ends Closed
Finish None
Free Length 1 in
Large Outside Diameter 0.85 in
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 4.71 lbs/in
SKU TA-7065SCS
Small Outside Diameter 0.438 in
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name TA-7065S
Ends Closed
Finish None
Free Length 25.4 mm
Large Outside Diameter 21.59 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 0.82 N/mm
SKU TA-7065SCS
Small Outside Diameter 11.13 mm
Wire Diameter 1.07 mm
