TA-7054SCS - 0.375 Inch-0.72 Inch O.D., 0.042 Inch Wire 302/304 Stainless Steel Constant Force Tapered Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

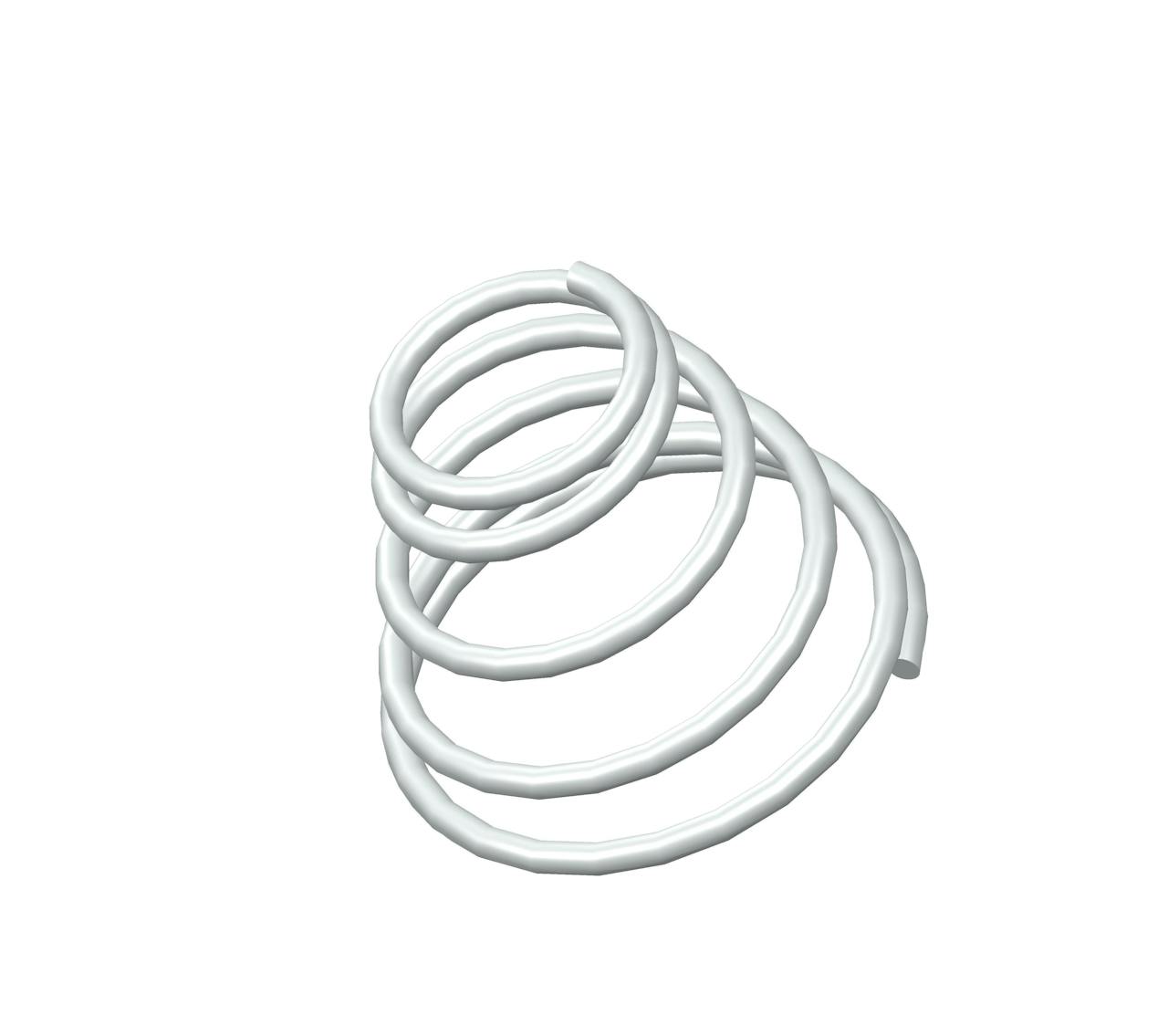

Constant force tapered compression spring in 302/304 Stainless Steel with 0.63 Inch approximate free length. The OD of this spring tapers from 0.375 Inch to 0.72 Inch.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | TA-7054S |
| Ends | Closed |
| Finish | None |
| Free Length | 0.63 in |
| Large Outside Diameter | 0.72 in |
| Material | 302/304 Stainless Steel |
| Measurement Units | Standard |
| Rate | 10.39 lbs/in |
| SKU | TA-7054SCS |
| Small Outside Diameter | 0.375 in |
| Wire Diameter | 0.042 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | TA-7054S |
| Ends | Closed |
| Finish | None |
| Free Length | 16 mm |
| Large Outside Diameter | 18.29 mm |
| Material | 302/304 Stainless Steel |
| Measurement Units | Standard |
| Rate | 1.82 N/mm |
| SKU | TA-7054SCS |
| Small Outside Diameter | 9.53 mm |
| Wire Diameter | 1.07 mm |
