Century Spring

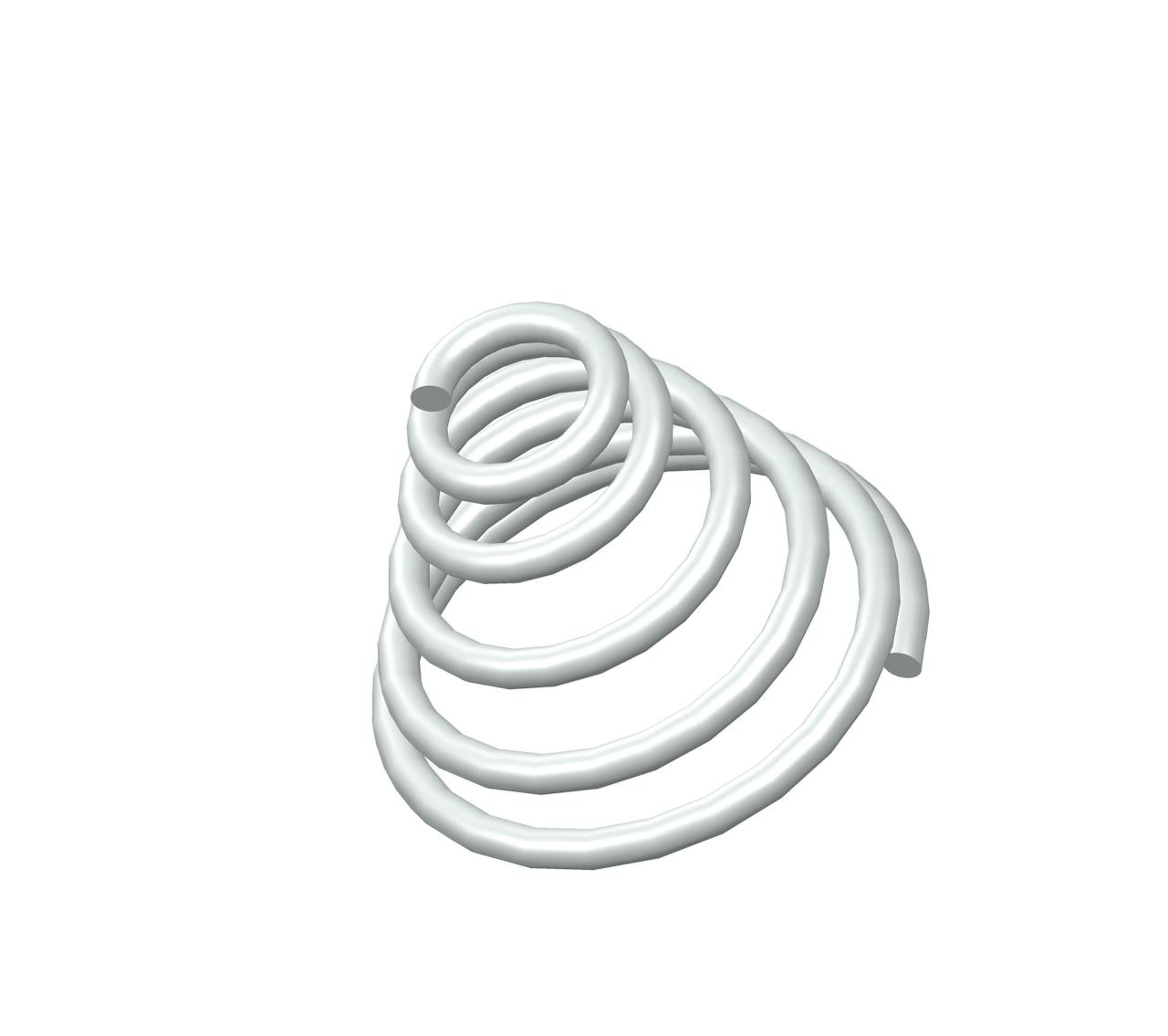

TA-7038SCS - 0.218 Inch-0.6 Inch O.D., 0.042 Inch Wire 302/304 Stainless Steel Constant Force Tapered Spring

Inventory Status
Estimated Lead Time

Constant force tapered compression spring in 302/304 Stainless Steel with 0.5 Inch approximate free length. The OD of this spring tapers from 0.218 Inch to 0.6 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name TA-7038S
Ends Closed
Finish None
Free Length 0.5 in
Large Outside Diameter 0.6 in
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 20.49 lbs/in
SKU TA-7038SCS
Small Outside Diameter 0.218 in
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name TA-7038S
Ends Closed
Finish None
Free Length 12.7 mm
Large Outside Diameter 15.24 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 3.59 N/mm
SKU TA-7038SCS
Small Outside Diameter 5.54 mm
Wire Diameter 1.07 mm
