Century Spring

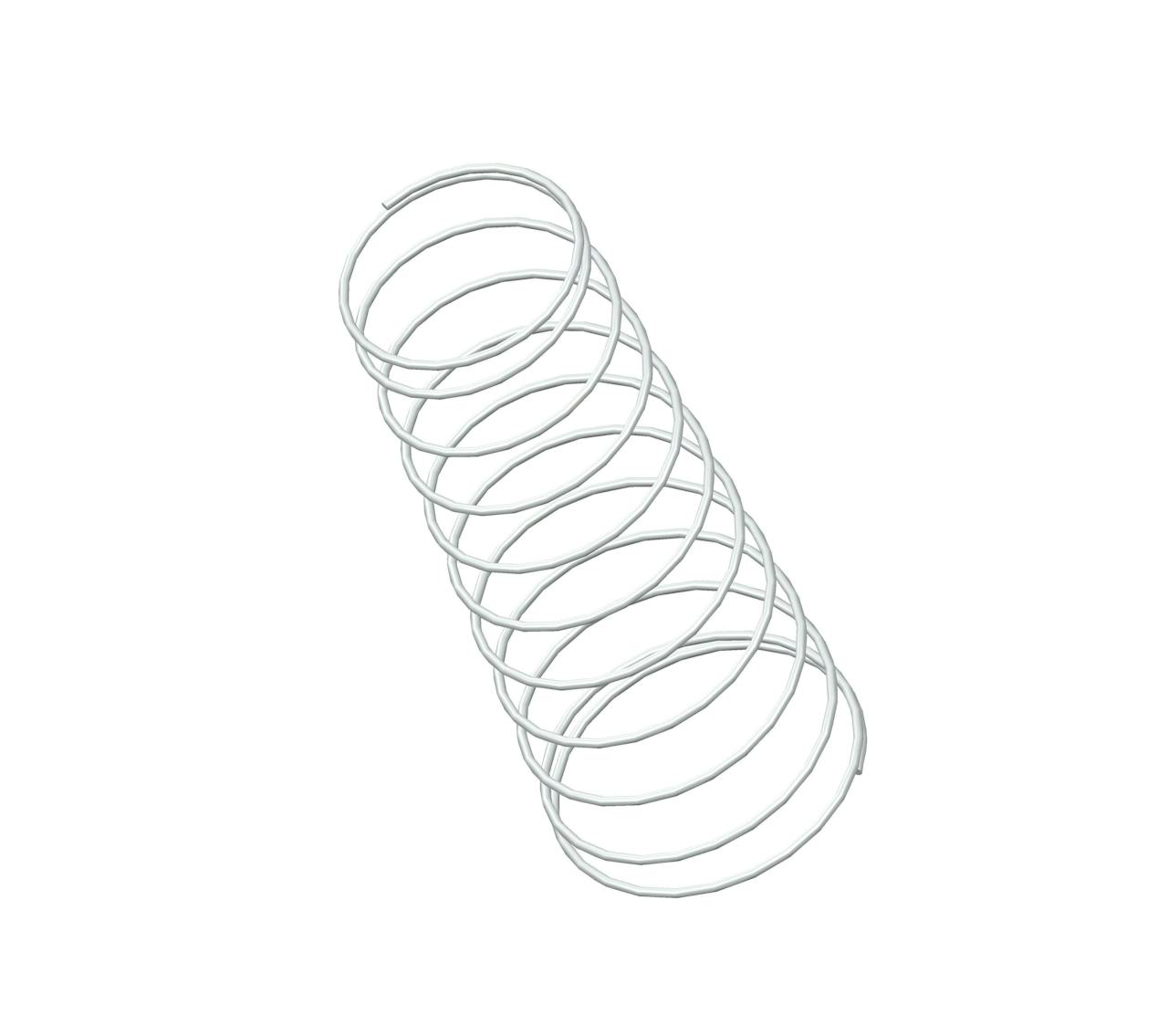

TA-2526CS - 1.5 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 11 total coils and Closed ends. The OD of this spring tapers from 0.47 Inch to 0.604 Inch. The spring has an I.D. of 0.434 Inch, and an average spring rate of 0.1 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 0.1 lbs/in
Brand Century Spring
Display Name TA-2526
Ends Closed
Finish None
Free Length 1.5 in
Inside Diameter 0.434 in
Large Outside Diameter 0.604 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.47 in
SKU TA-2526CS
Small Outside Diameter 0.47 in
Solid Height 0.2 in
Total Coils 11
Wind Direction Left
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Average Rate 0.02 N/mm
Brand Century Spring
Display Name TA-2526
Ends Closed
Finish None
Free Length 38.1 mm
Inside Diameter 11.02 mm
Large Outside Diameter 15.34 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 11.94 mm
SKU TA-2526CS
Small Outside Diameter 11.94 mm
Solid Height 5.08 mm
Total Coils 11
Wind Direction Left
Wire Diameter 0.46 mm
